Forums >> Revit Building >> Technical Support >> Detail callout tag... for 2010

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Nov 6, 2009 at 11:30:13 PM | Detail callout tag... for 2010

#1

HGL5


active

Joined: Thu, Aug 13, 2009
54 Posts
No Rating


Similar to a callout tag or a section cut is tied to their drawings, I want a tag (circle with a horizontal line, detail number on top, sheet number on bottom) tied to a drafting view detail.  Can someone let me know if this is possible and how to do it? thank you for your help. Basically I need something like the Callout tag (then reference my view) but I dont want all the callout box that goes along with the reference tag



Edited on: Fri, Nov 6, 2009 at 6:23:53 PM

This user is offline



Sat, Nov 7, 2009 at 6:10:13 AM | Detail callout tag... for 2010

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


You can overide the properties of the callout boundary and leader line in object styles.  If you make them white they become invisible.


This user is offline

View Website

Tue, Nov 10, 2009 at 5:30:50 PM | Detail callout tag... for 2010

#3

HGL5


active

Joined: Thu, Aug 13, 2009
54 Posts
No Rating


overriding the leader lines to be white affects all callout tags though. I was hoping that after I duplicated the default callout tag, renamed it detail tag, I could go into type properties and select no leader lines or callout box.  Is that not possible?


This user is offline



Wed, Nov 11, 2009 at 8:14:07 AM | Detail callout tag... for 2010

#4

HGL5


active

Joined: Thu, Aug 13, 2009
54 Posts
No Rating


Finally found a decent workaround for now... Select the callout, right click, override graphics in view, by element, change line wt to 1 and color to white.

This user is offline



Wed, Nov 11, 2009 at 5:58:51 PM | Detail callout tag... for 2010

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes

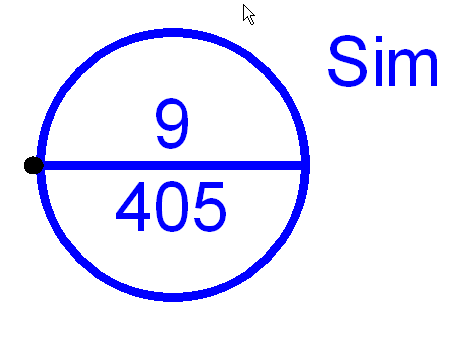

Use a very-very small call-out bubble.  One that basically is part of the bubble line.

Attached Images


This user is offline
