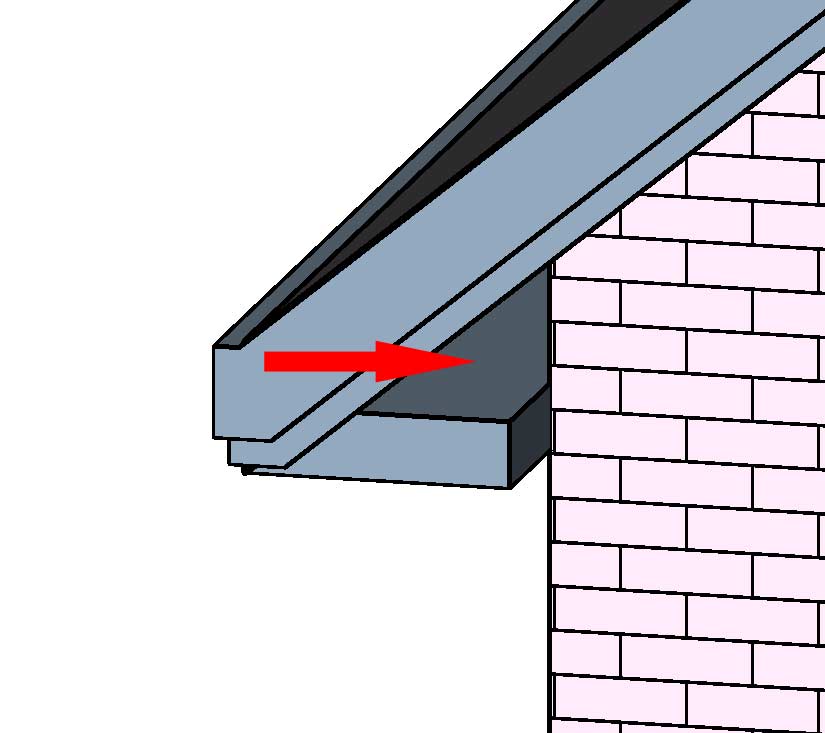

I just need to bridge the gap between the soffit and roof/fascia. Is there a trick to it?
Thanks for your help!
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Feb 15, 2005
90 Posts
No Rating |
I don't think so, put in-place family
|
This user is offline |
|
|
|
site moderator|||
Joined: Mon, Jan 12, 2004
2889 Posts
 |
Just use a wall infill with an edited profile to match the gap.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, May 4, 2009
22 Posts
No Rating |

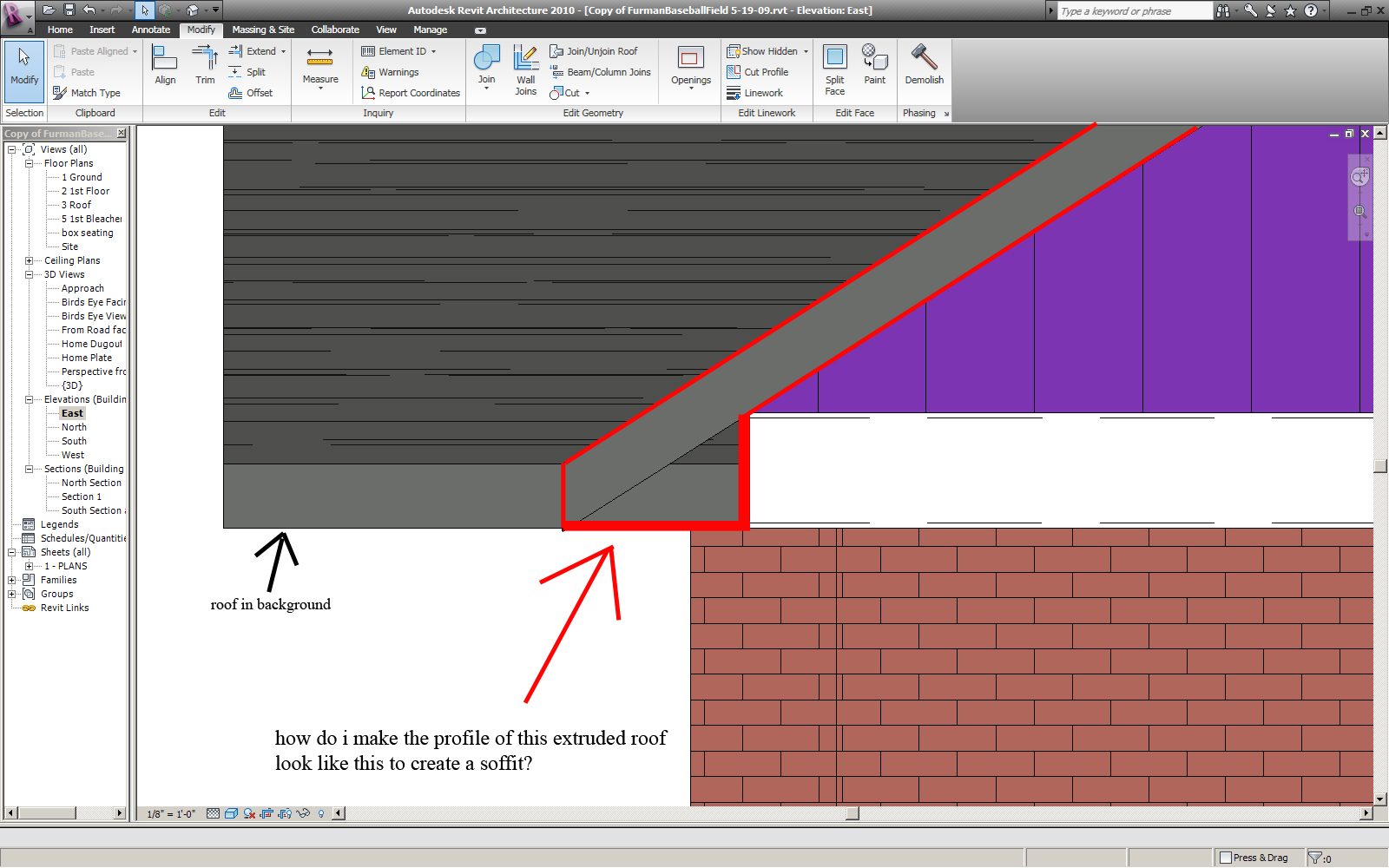

Hi all, I realize this is an old post, but I am having a similar problem. The image I have attached is showing a gable in the foreground, and another gabled roof in the background. Both need to have that closed in box on the corner as I have illustrated. How do I accomplish this? Also, what's the simplest way to add soffit and facia? Thanks for the help!
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |
Do it the same way as it would be done in real life. Create an infill panel as an in-place family, or build out the wall, as suggested in the previous posts.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, May 4, 2009
22 Posts
No Rating |
Ok thanks! So that is the easiest way. What about the facia and soffit? Same thing?
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
Create the fascias and soffits using the fascia and soffit hosted sweeps, in the drop down menu under roofs in 2010 or modelling in 2009. Fill in the gap with an in-place family.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, May 4, 2009
22 Posts
No Rating |
Thanks a lot Tim. I had no idea that tool was there. Very easy, and very appreciated. -Ryan
|
This user is offline |
|
|
|
active
Joined: Mon, May 4, 2009
22 Posts
No Rating |

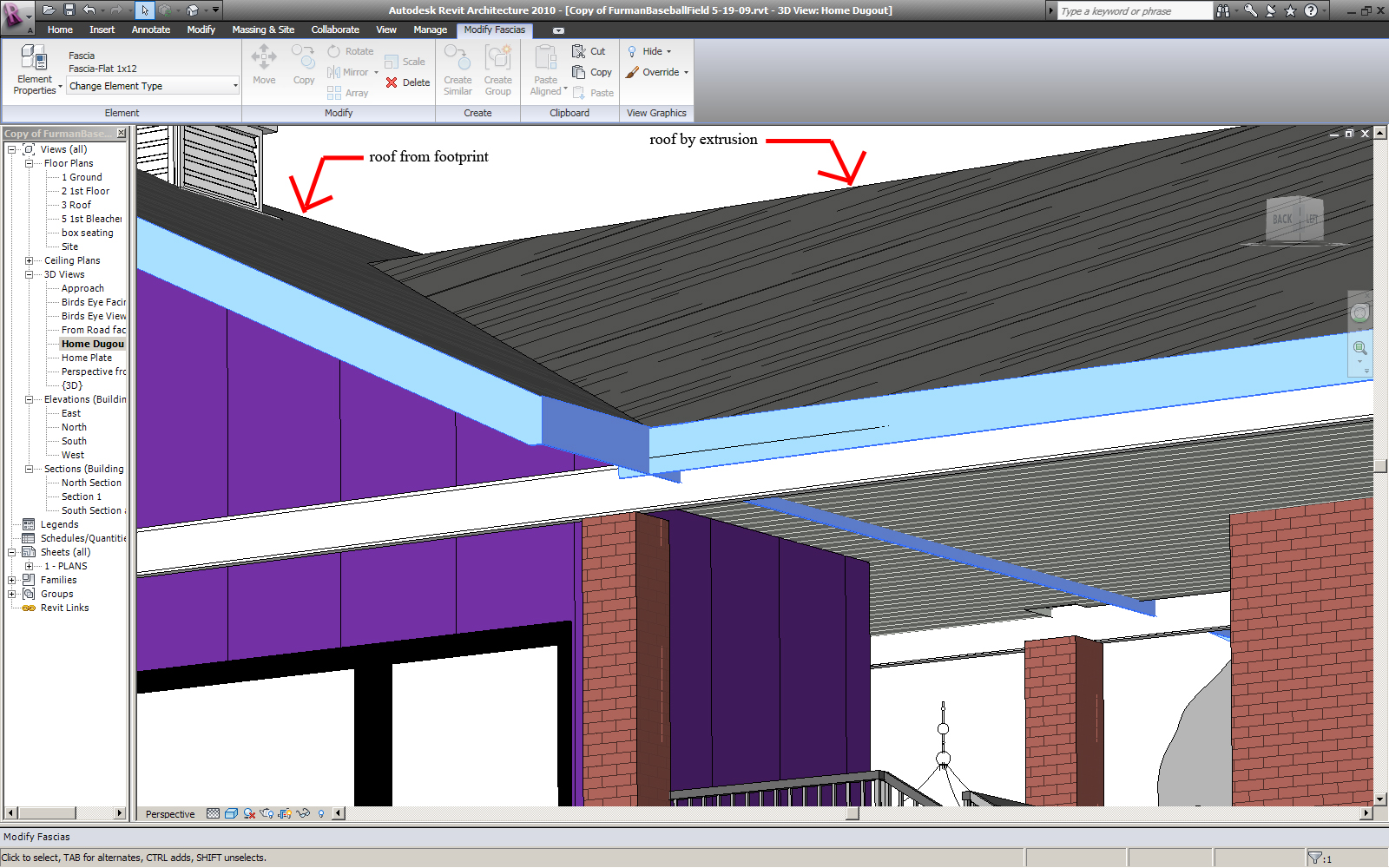

Tim, after I finished putting the facia on, I noticed that it was not trimming where my roof from footprint and roof from extrusion meet. Take a look at the attached image. You can see the facia coming through the ceiling. Is there a way to clean this up?
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
I'm not sure why you have an extruded roof and a roof by footprint - seems as if it could all have been one roof. Anyway, if you click on the fascia it has a blue dot at the end that you can stretch to the required position. You can then add another fascia to to the other end if required.
|
This user is offline |
View Website
|
|
|
