Forums >> Revit Building >> Technical Support >> tricky massing
|
|
|
active
Joined: Sat, Apr 12, 2008
7 Posts
No Rating |

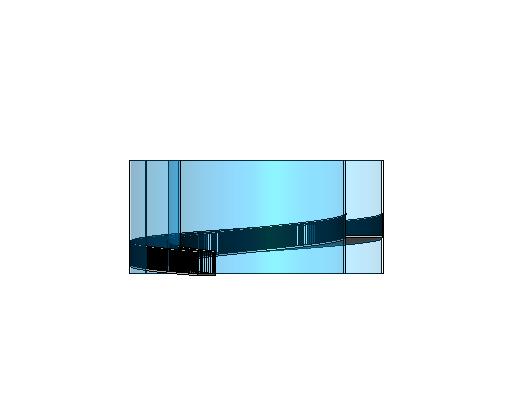

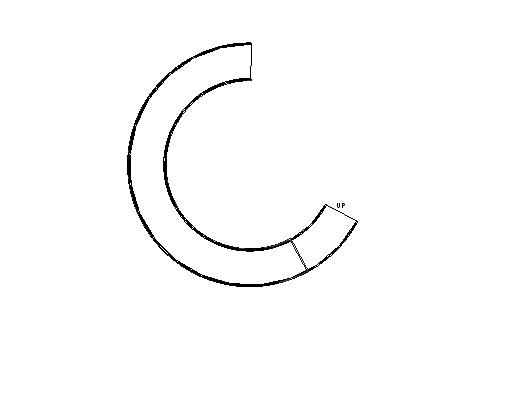

I have a C-shaped ramp that I have enclosed in glass. But I want to trim the glass right below the ramp. But I'm not sure how to trim it since it's curved and the ends are at different elevations. I'm pretty sure I have to use a void massing, but I don't know which one or how to draw it properly. Thanks. Michelle
|
This user is offline |
|
 | |
|
|
active
Joined: Mon, Apr 10, 2006
59 Posts
 |
well im not that experienced with massing yet but i would try a sweep blend void. Do the c shape 2d sketch then the two profile sketches at either end. not sure but id try that until someone else can help
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
Try this tutorial by Mr Spot. http://www.revitcity.com/tutorials/stair-wall_trimming/
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Also, see this: http://www.cadscope.co.uk/movies/swept_blend/swept_blend.html
-----------------------------------
