Mon, Oct 30, 2006 at 7:45:28 PM | Section problems

#1

Arb60


active

Joined: Fri, Jul 21, 2006
2 Posts
No Rating


Having a problem with family items not being sectioned. The whole family appear in the section not just the portion of the family that is in front of the section line. Have attached some sketches illustrating the problem. Thanks Tony

Attached Files

This user is offline



Mon, Oct 30, 2006 at 10:29:53 PM | Section problems

#2

hjacobs


admin
hjacobs Avatar

Joined: Sun, Jan 19, 2003
568 Posts
3.5 Stars: 16 Votes


This is a problem with certain kinds of families, it shows the entire family if any part of it is cut.  What is the object style of your family?

-----------------------------------

Hiroshi Jacobs

The Catholic University of America

This user is offline

View Website

Mon, Oct 3, 2011 at 7:44:32 AM | Section problems

#3

mccoolj


active

Joined: Wed, Dec 29, 2010
58 Posts
5 Stars: 1 Votes


I realize this is an old thread, but this is exactly the same problem I am having now in RS2012 with several of my families. What is it about the family that should be changed to eliminate this behavior? You mentioned something about the object styles, but I don't see anything there that looks like it would change this, although I'm also not very familiar with the object styles function in Revit.


This user is offline



Mon, Oct 3, 2011 at 8:17:21 AM | Section problems

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


Search your HELP using the term cuttable.  That will show you what families can be cut.


This user is offline



Mon, Oct 3, 2011 at 9:37:38 AM | Section problems

#5

mccoolj


active

Joined: Wed, Dec 29, 2010
58 Posts
5 Stars: 1 Votes


Thank you! I had tried looking in the help and the Families Guide without any success, but I also wasn't sure how to describe my problem well in terms of searchable keywords.

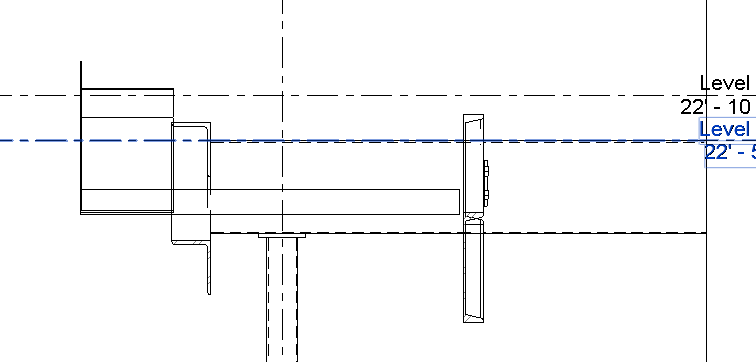

Still trying to figure out sections in Revit versus our old autocad ways. Typically, we might show something in the foreground and something slightly in the background with any sloping framing in between in cross-section. In Revit, I have to move my depth of view out to encompass both objects (i.e. a purlin near the ridge and a beam actually at the ridge), which makes the edge angle that's sloping down across the purlins show up as an extruded section that isn't as easy to discern as it was in the ACAD sections that just showed it as a plane section. Is there any way to show a near zero depth section view so that sloped framing is still clear as a cross-section, but with background objects (i.e. a few inches away) stil showing up in the section? Hopefully the ACAD section and my current Revit attempt that are attached will help explain what I'm after. Thanks again!



Attached Images


This user is offline



Mon, Oct 3, 2011 at 9:56:55 AM | Section problems

#6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 395 Votes


Sometimes it is best to add a detail element and turn off the model element.  Or sometimes, you can just use the linework tool to turn off lines that obfuscate the detail....


This user is offline
