Revit 2017, I need to create a Brick soldier course along wall top that is level and also that is slanted up a gable. I am thinking a wall sweep or something else? Any suggestions on how to do this. - Thanks Byron

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
19889 Posts

Read this post to start.

https://www.revitcity.com/forums.php?action=viewthread&thread_id=36200

This user is offline

1bchristian

active

Joined: Sun, Apr 22, 2018
0 Posts
No Rating

I'm Sorry I was meaning 3d Solider Course

This user is offline

tim123

active

Joined: Tue, Apr 12, 2005
1310 Posts

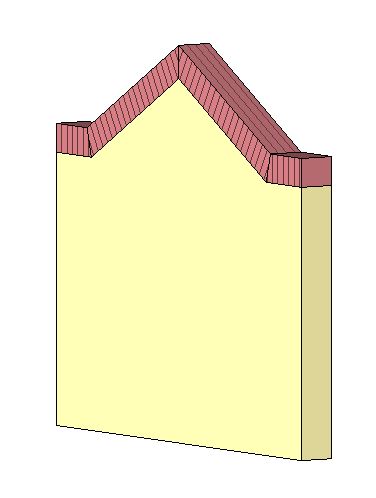

The post that WWHub refers to does show 3D methods.  An alternative is to create a roof by extrusion that is the shape of the gable, and the depth of the wall, with the thickness equal to the brick height.  The wall can then attach to it.  I have split the face of the coping so that I could align the soldier course brick pattern here.

Attached Images

This user is offline

View Website

1bchristian

active

Joined: Sun, Apr 22, 2018
0 Posts
No Rating

Thank you I will give that a try.

This user is offline

JessicaNixon

banned

Joined: Fri, Jun 5, 2020
0 Posts
No Rating

Thanks
