Forums >> Revit Building >> Technical Support >> why my projection lines overlap cut lines.

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Apr 9, 2018 at 2:42:48 PM | why my projection lines overlap cut lines.

#1

brankulo


active

Joined: Mon, Dec 7, 2015
0 Posts
5 Stars: 1 Votes


in my building sections i have cut lines set as #4 black lines. projections lines for windows walls etc are set to #1 light grey. there are areas where projection line of the wall would overlap cut line. this makes cut lines apear thinner as they are partially obscured by grey projection line. not sure whay this is happening as projection items are further beyond and section is not cutthing through them. is there any way to control this? this only happens once printed to pdf, it looks all fine on screen.

thanks



Edited on: Mon, Apr 9, 2018 at 2:44:42 PM



Edited on: Mon, Apr 9, 2018 at 2:51:56 PM

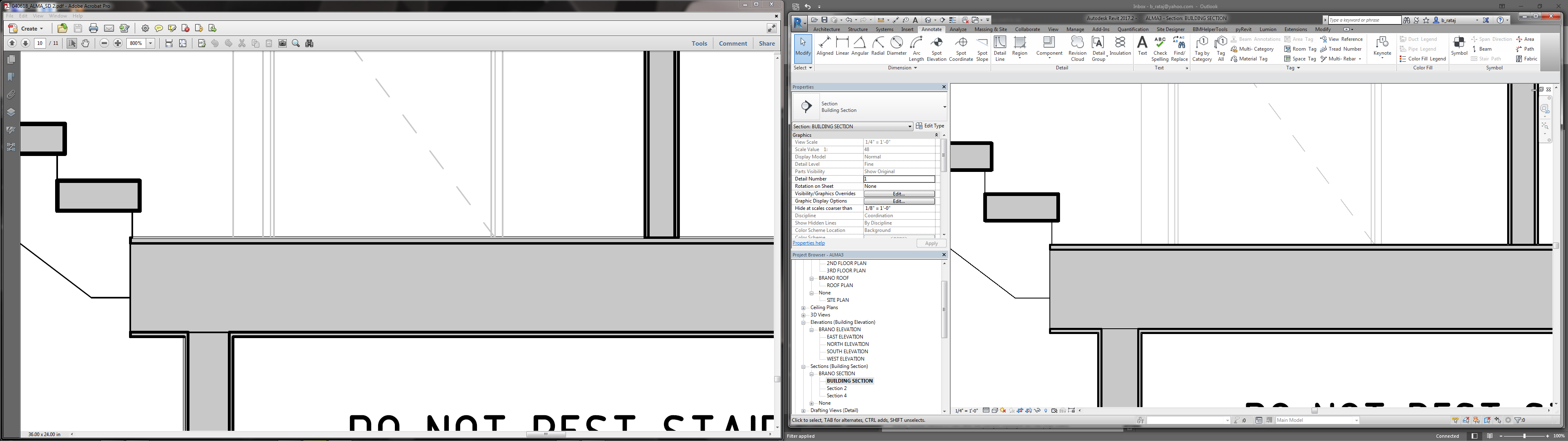

Attached Images


This user is offline



Tue, Apr 10, 2018 at 1:03:44 AM | why my projection lines overlap cut lines.

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


It is probably your PDF converter.  Try switching off 'Use Hardware Acceleration' under Graphics in your options if you have not done this.  Alternatively, try another PDF printer.


This user is offline

View Website

Tue, Apr 10, 2018 at 7:41:07 PM | why my projection lines overlap cut lines.

#3

brankulo


active

Joined: Mon, Dec 7, 2015
0 Posts
5 Stars: 1 Votes


So far the only thing that worked is raster instead of vector printing, which obviously sucks.


This user is offline
