Forums >> Revit Building >> Technical Support >> Wall Type with inset coursing (Revit 2017)

ForbushDD

active

Joined: Thu, Oct 2, 2014
0 Posts
No Rating

I am working on converting a plan from AutoCAD to Revit and I am at a loss as to how recreate the inset coursing in revit. I have tried several ways but I wanted to see if you all could give me a clue as to how you would do this.

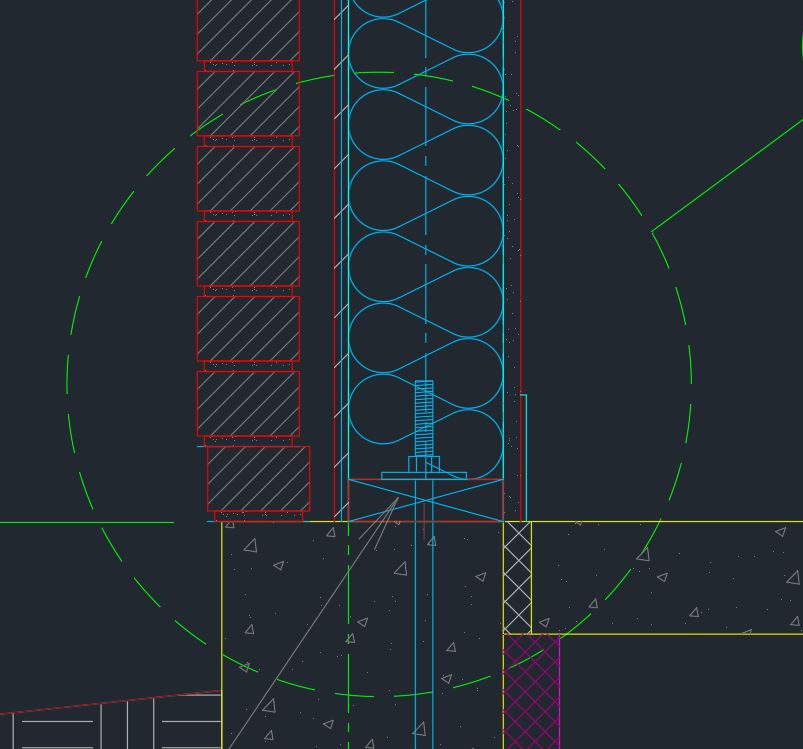

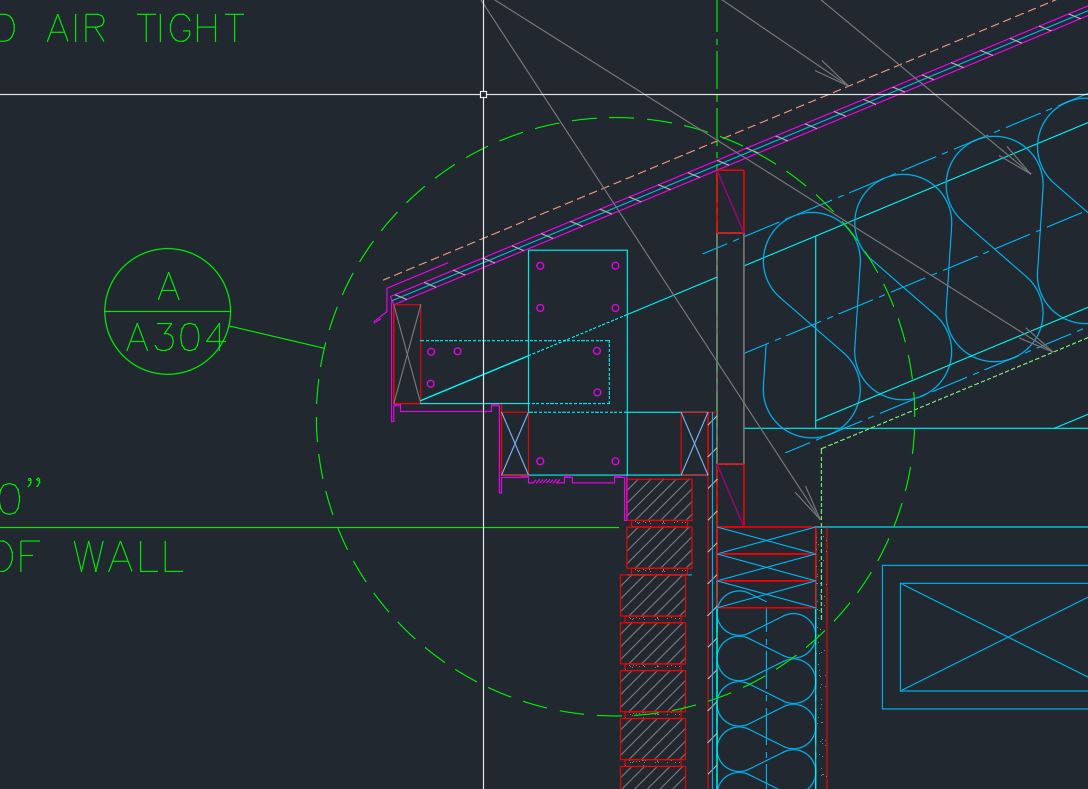

The top (2) courses are inset 3/8", same as the bottom course.

Any help is greatly appricated!

Thanks,

Attached Images

This user is offline

View Website

tim123

active

Joined: Tue, Apr 12, 2005
1310 Posts

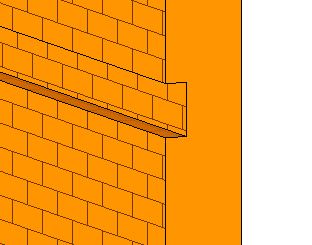

Insert a Wall Reveal (under wall drop down).  Adjust the depth if required.

Attached Images

This user is offline

View Website
