Forums >> Revit Building >> Technical Support >> How would you model this thatched roof?
|
|
|
active
Joined: Thu, Oct 21, 2010
6 Posts
No Rating |

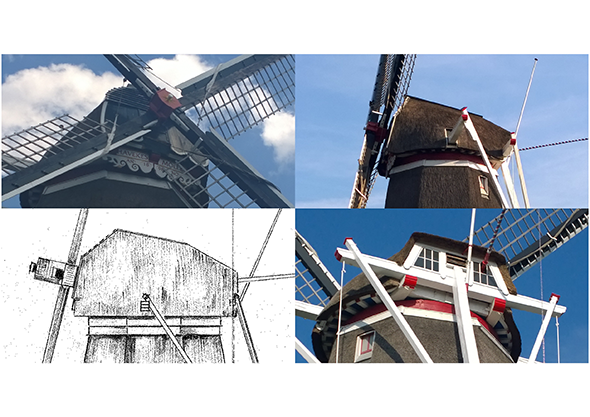

How would you model this thatched roof? I only have an old drawing that is not correct and only gives me a sideview.
Revit 2017
Edited on: Tue, Aug 15, 2017 at 3:23:24 AM
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |
Open a conceptual mass family and create splines that define the various sections through the roof. Create a form from these. Once you import this into your model you can assign surfaces to it.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Oct 21, 2010
6 Posts
No Rating |
one question on conceptual masses.
I place point elements. I place a spline. Then I select the splines and make them into a create form/solid form.
From that moment on I can't see my point emements/grip points anymore. Where is the check box to make them visible again?
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
If you hover over the form that you created you should be able to select the splines. Select these to show the points. Select a point to moce it.
|
This user is offline |
View Website
|
|
|
active
Joined: Thu, Oct 21, 2010
6 Posts
No Rating |
But I only see them when I hover over them. On youtube they show videos where you always see the grip points.
|
This user is offline |
|
|
|
