Forums >> Revit Building >> Technical Support >> Extruded roof - fascia - (Newbie question)

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Jul 4, 2017 at 8:23:53 PM | Extruded roof - fascia - (Newbie question)

#1

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


I have created an extruded roof in Revit 18.  CryingSee attached file.)  However, when I attempt to add a fascia, Revit does not allow me to select the edges of the roof.

If fascias are not allowed on such roofs, how does one assign a finish material, such as stucco to the sides of the roof?  Similar question for assigning a mateirals to the top/bottom of the roof.

Thank you in advance.

Hoyt (a Revit newbie)


This user is offline



Wed, Jul 5, 2017 at 8:29:45 AM | Extruded roof - fascia - (Newbie question)

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes

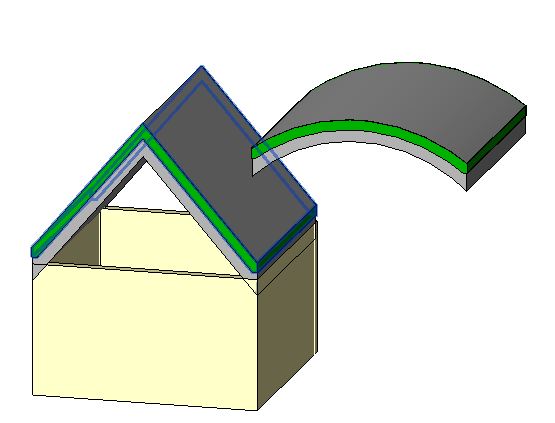

It shouldn't be a problem to attach fascias to extruded roofs.  I don't see your attachment, so I'm not sure what you're trying to do, but I attach an image with two wxtruded roofs with fascias.



Attached Images


This user is offline

View Website

Wed, Jul 5, 2017 at 12:30:04 PM | Extruded roof - fascia - (Newbie question)

#3

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


Thank you very much for your response.  I am very glad to learn that fascias are available.  I have attached a file with the extruded roof.





Hoyt



Attached Files

This user is offline



Wed, Jul 5, 2017 at 2:25:31 PM | Extruded roof - fascia - (Newbie question)

#4

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Rather attach an image showing you problem.  What you have attached is an IFC file and we can't do much with that.  However, I can view your roof, and I dont think that you should have a problem attaching fascias.  In this case, I think that you should have used standard roofs for what you have shown, as these are much more controllable.


This user is offline

View Website

Wed, Jul 5, 2017 at 2:38:33 PM | Extruded roof - fascia - (Newbie question)

#5

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


Tim,

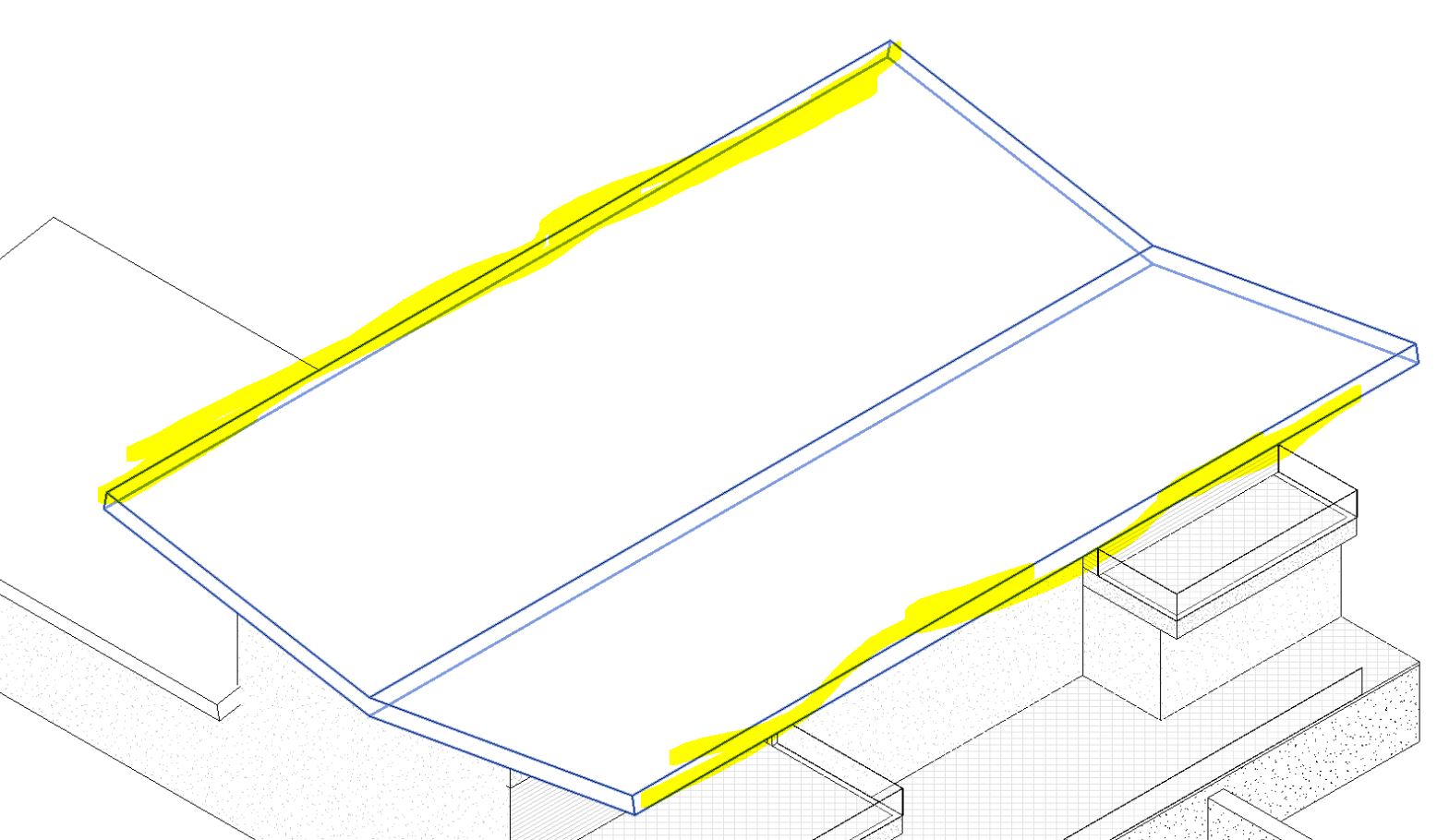

I have attacehd a screenshot of the roof.  The exact issue that I am having is that when I attempt to select a plane of the roof, by selecting the upper edge of a roof plane, to add a fascia, the entire roof is selected.



The screenshot was taken just after I selected an upper edge.  As can be seen in the screenshot, the entire roof is selected.  Thus, no fascias are added.



Hoyt



Attached Images


This user is offline



Wed, Jul 5, 2017 at 2:42:14 PM | Extruded roof - fascia - (Newbie question)

#6

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


Tim,



A link to the Revit file follows:  https://www.yousendit.com/download/dDZHNWNzR3N3TGhFQmNUQw



The file is 3MB in size, which is too large to upload to the forum.



Hoyt






This user is offline



Wed, Jul 5, 2017 at 2:47:26 PM | Extruded roof - fascia - (Newbie question)

#7

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 364 Votes


When your file is too big, you can always copy your elements to a new file and upload that.


This user is offline



Wed, Jul 5, 2017 at 5:17:50 PM | Extruded roof - fascia - (Newbie question)

#8

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


Technically, your roof is not a roof. It’s just an in-place extrusion under the roof category - fascia tool will not work here. Use actual roof tool and create your roof by extrusion or by footprint with a negative slope.


This user is offline



Wed, Jul 5, 2017 at 9:27:26 PM | Extruded roof - fascia - (Newbie question)

#9

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


Thank you very much.  I will rebuild the roof using the roof tool.



Hoyt


This user is offline



Wed, Jul 5, 2017 at 10:23:12 PM | Extruded roof - fascia - (Newbie question)

#10

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes

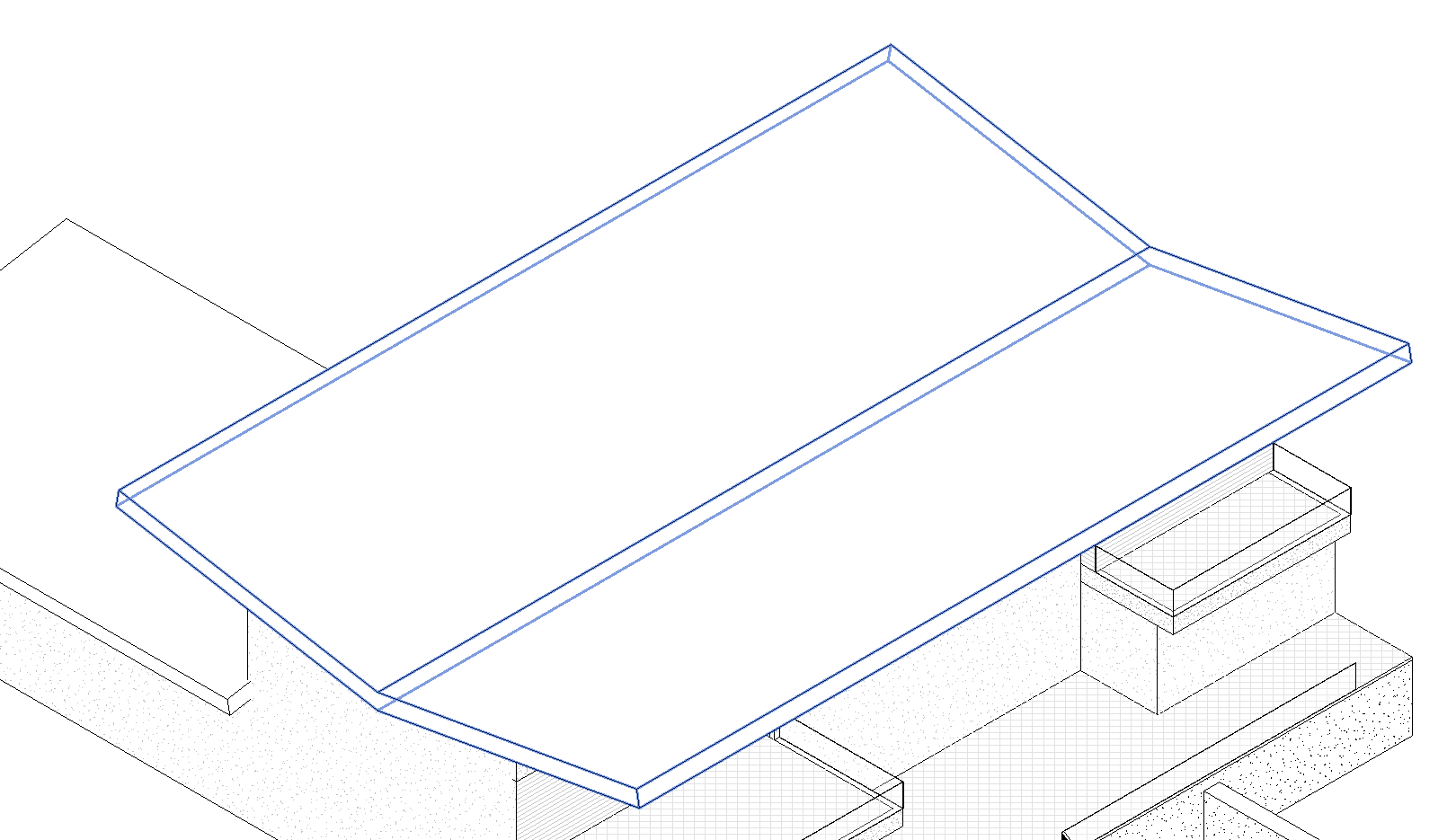

Hoyt, I just noticed something about your roof. Do you want the edges of your roof to be perpendicular to the roof plane (as you have it), or cut plumb?



Edited on: Wed, Jul 5, 2017 at 5:23:33 PM

Attached Images


This user is offline



Wed, Jul 5, 2017 at 10:39:44 PM | Extruded roof - fascia - (Newbie question)

#11

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


I want the roof edges to be perpindicular to the roof plane (not plumb).  That is why I did not use the standard method of constructing the roof.



Hoyt


This user is offline



Thu, Jul 6, 2017 at 12:09:17 AM | Extruded roof - fascia - (Newbie question)

#12

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


Two options:



1. Use what you have - in-place extrusion. Copy to clipboard -> paste to the same place (two roofs in the same place) -> edit one extrusion and make it larger (or smaller) by the thickness of the fascia and adjust the height of it as well -> finish extrusion (green check mark) -> use join or cut geometry tool to remove the inside volume of the ‘fascia’ roof.



2. use roof tool -> cut the edges with in-place void so they are perpendicular to the roof plane -> use fascia tool.



I’d use option 2.



EDIT: File attached



Edited on: Wed, Jul 5, 2017 at 7:22:47 PM

Attached Files

This user is offline



Thu, Jul 6, 2017 at 12:25:52 AM | Extruded roof - fascia - (Newbie question)

#13

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


File attached - I had to reduce its size.


This user is offline



Thu, Jul 6, 2017 at 1:12:43 AM | Extruded roof - fascia - (Newbie question)

#14

hoyt


active

Joined: Tue, Jul 4, 2017
0 Posts
No Rating


Thank you very much.



Hoyt


This user is offline
