Forums >> Community >> Newbies >> adding multiple boundaries on the one site + multi house documentation help pls

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Jan 14, 2016 at 12:04:57 PM | adding multiple boundaries on the one site + multi house documentation help pls

#1

haydenrrr


active

Joined: Mon, Nov 23, 2015
0 Posts
No Rating

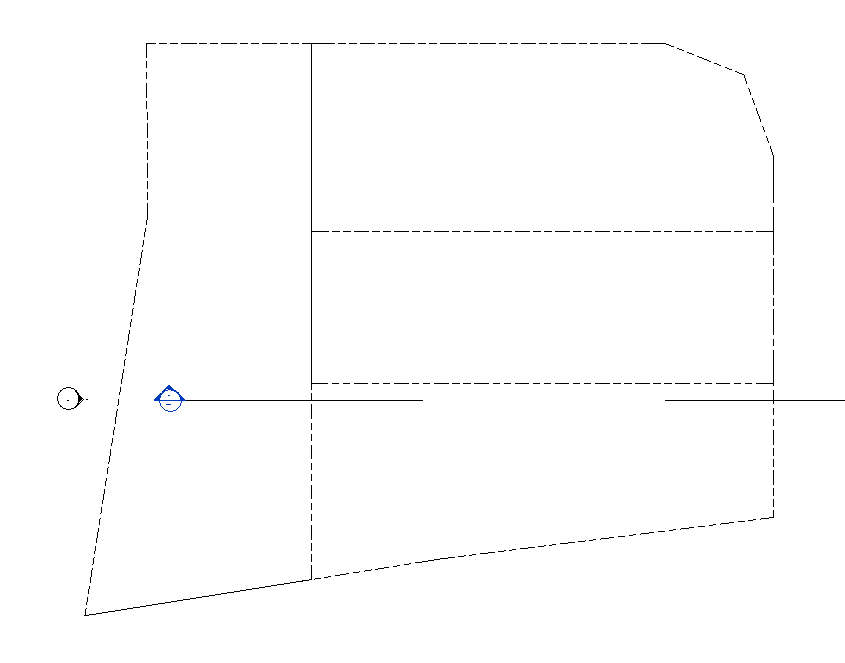

hi guys, im trying to do a subdivision and show the followin pic as 1 complete site with 4 sites within it. revit wont let me make it as 1 set of boundary line sketches, so i have done 4 sites and moved them next to each other but the dashed lines are overlapping and doesnt look good. what is the correct way to do this? i want 1 site not 4 seperate ones.



also;i've got 3 houses with party walls (common walls) what is the best way to document it all? as i will want seperate floor plans for each house with room to put all my dimensions but will also want to see a portion of the joining house to show the party wall etc if that makes sense. can i do the 3 in the same model and when im documenting it somehow hide off the other houses but i will have heaps of dimensions to hide aswell?! or ducplicate with detailing? halpppp thanks



Attached Images


This user is offline



Thu, Jan 14, 2016 at 1:49:35 PM | adding multiple boundaries on the one site + multi house documentation help pls

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 361 Votes


Linked seperate models.


This user is offline



Thu, Jan 14, 2016 at 10:25:29 PM | adding multiple boundaries on the one site + multi house documentation help pls

#3

haydenrrr


active

Joined: Mon, Nov 23, 2015
0 Posts
No Rating


thanks, ive decided i will use detail lines as the boundaries.would i be able to model the 3 dwellings (its essentially 1 building but with dividing walls between dwellings) as 1 main model. then create 3 seperate models for each dwelling, link the main model and will i be able to tag and annotate off of the main model into my seperate model? thanks


This user is offline



Fri, Jan 15, 2016 at 4:39:16 AM | adding multiple boundaries on the one site + multi house documentation help pls

#4

DavidBruinsma


active

Joined: Sun, Jun 3, 2012
13 Posts
No Rating


IF you break the site on the left where it joins the 3 sites on the right with 3 line segments instead of one full length segment - then the boundary lines will sit on top of each other perfectly, and will not appear as a continuous line.

OR

you could simply 'hide element in view' of the 'long' common boundary on the site on the left, will also solve the problem.


This user is offline



Fri, Jan 15, 2016 at 1:34:31 PM | adding multiple boundaries on the one site + multi house documentation help pls

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 361 Votes


I don't understand why you don't want to put the site boundry lines in the linked modesls.  Those lines give you something to locate your units from.  The shared lot lines could be placed in seperate worsets so one could be turned off in the main model.


This user is offline
