Forums >> Revit Building >> Technical Support >> Wainscoting in a curved wall

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, May 18, 2015 at 7:41:17 PM | Wainscoting in a curved wall

#1

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating


Hi, everyone, I'm Kind of New here and using Revit.

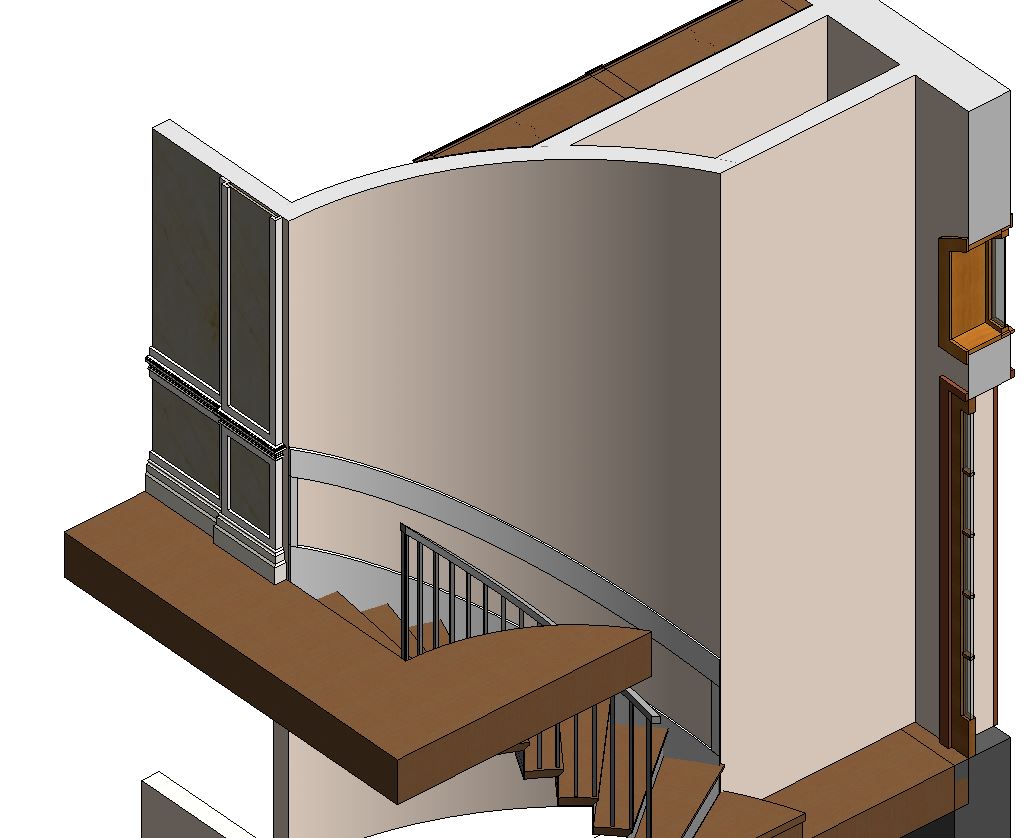

And now I'm having a hard time trying to make wall panels (wainscoting) in this curved wall, just as the other wall at the left, but without the colums. How can I achieve that in this curved wall, also going up with the stair. Any Help please will be greatly appreciate. Thanks!!



Attached Images


This user is offline



Mon, May 18, 2015 at 11:28:49 PM | Wainscoting in a curved wall

#2

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


Never done this before, but I think I would go with the Railing tool.


This user is offline



Mon, May 18, 2015 at 11:40:39 PM | Wainscoting in a curved wall

#3

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating


ok, Let me try with the Railing Tool to see what I can get. Thanks pijpiwo

Any other suggestions?

Thanks!


This user is offline



Tue, May 19, 2015 at 12:26:07 PM | Wainscoting in a curved wall

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 371 Votes


pijpiwo - Great suggestion!

arqrivas - Show us how pijpiwo's suggestion works out.


This user is offline



Tue, May 19, 2015 at 2:30:18 PM | Wainscoting in a curved wall

#5

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating


Sure WWHub, I'll be working on that today, I'll let you know


This user is offline



Tue, May 19, 2015 at 5:44:07 PM | Wainscoting in a curved wall

#6

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating

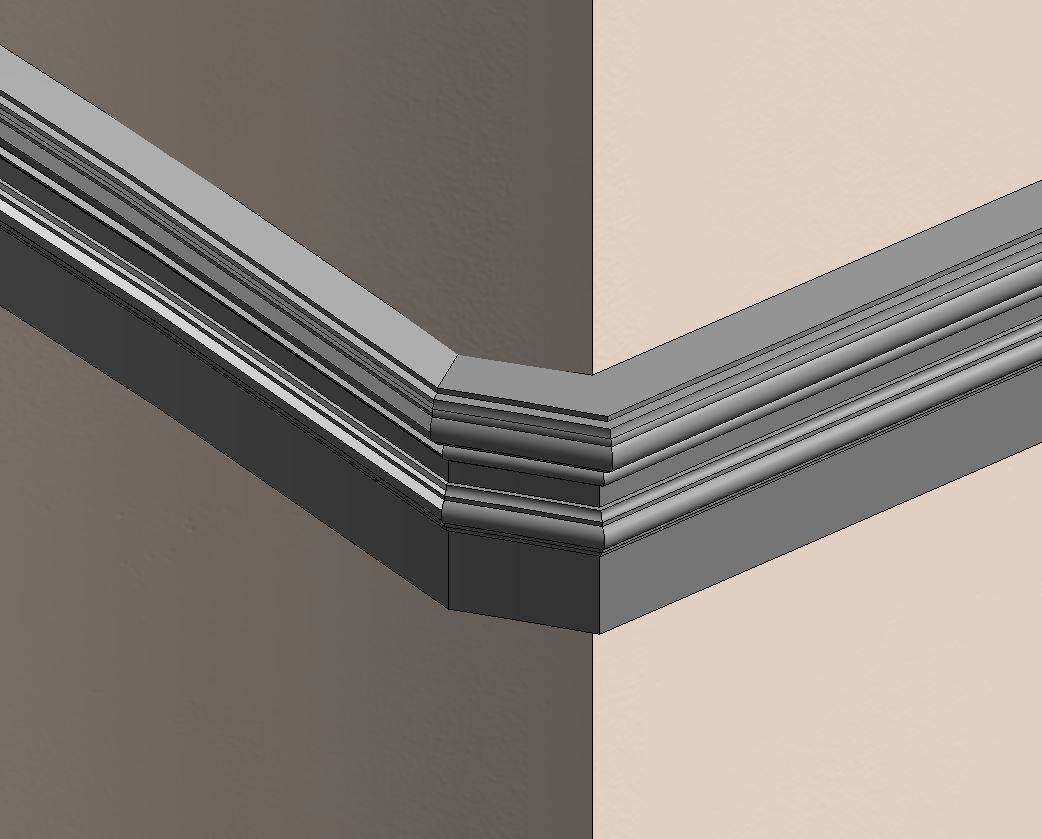

Ok, so here is what I did, it works almost fine, but still having a samll problem in the lower part of the railing, it's not joining the return as it did in the upper part.

Any Ideas?

PD: the railing is made hosted to the stair and is made in one sketch.



Attached Images


This user is offline



Tue, May 19, 2015 at 11:42:07 PM | Wainscoting in a curved wall

#7

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes

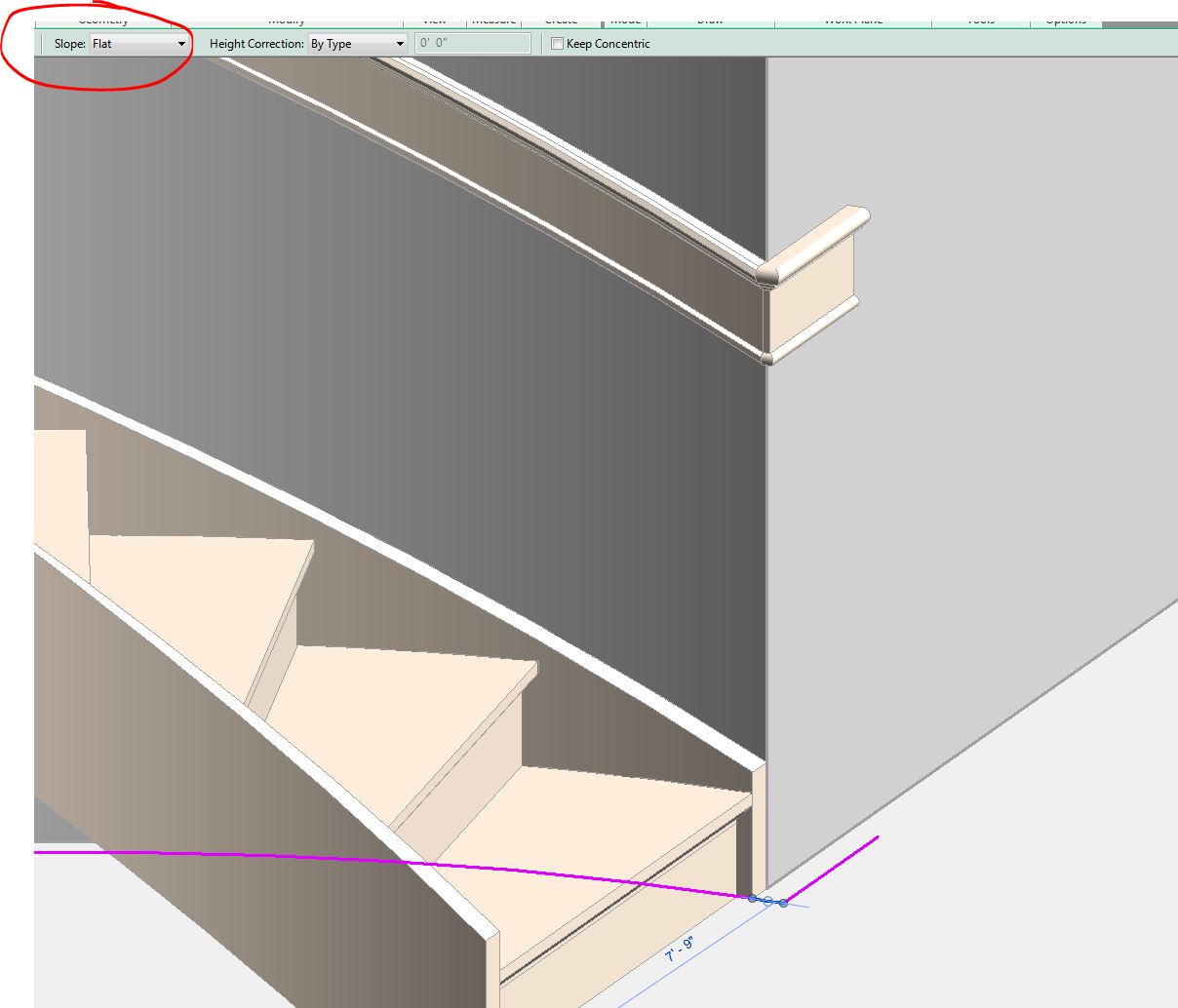

Insert a horizontal segment and change slope to flat/slope for all segments (see pic). Keeping default ‘by host’, creates undesired result.



Attached Images


This user is offline



Wed, May 20, 2015 at 12:10:07 AM | Wainscoting in a curved wall

#8

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating


Thanks I'll do that


This user is offline



Tue, May 26, 2015 at 5:08:26 PM | Wainscoting in a curved wall

#9

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating


Hi, again, Pijpiwo, your solutions has been useful for me. But I'm still having some problems here.

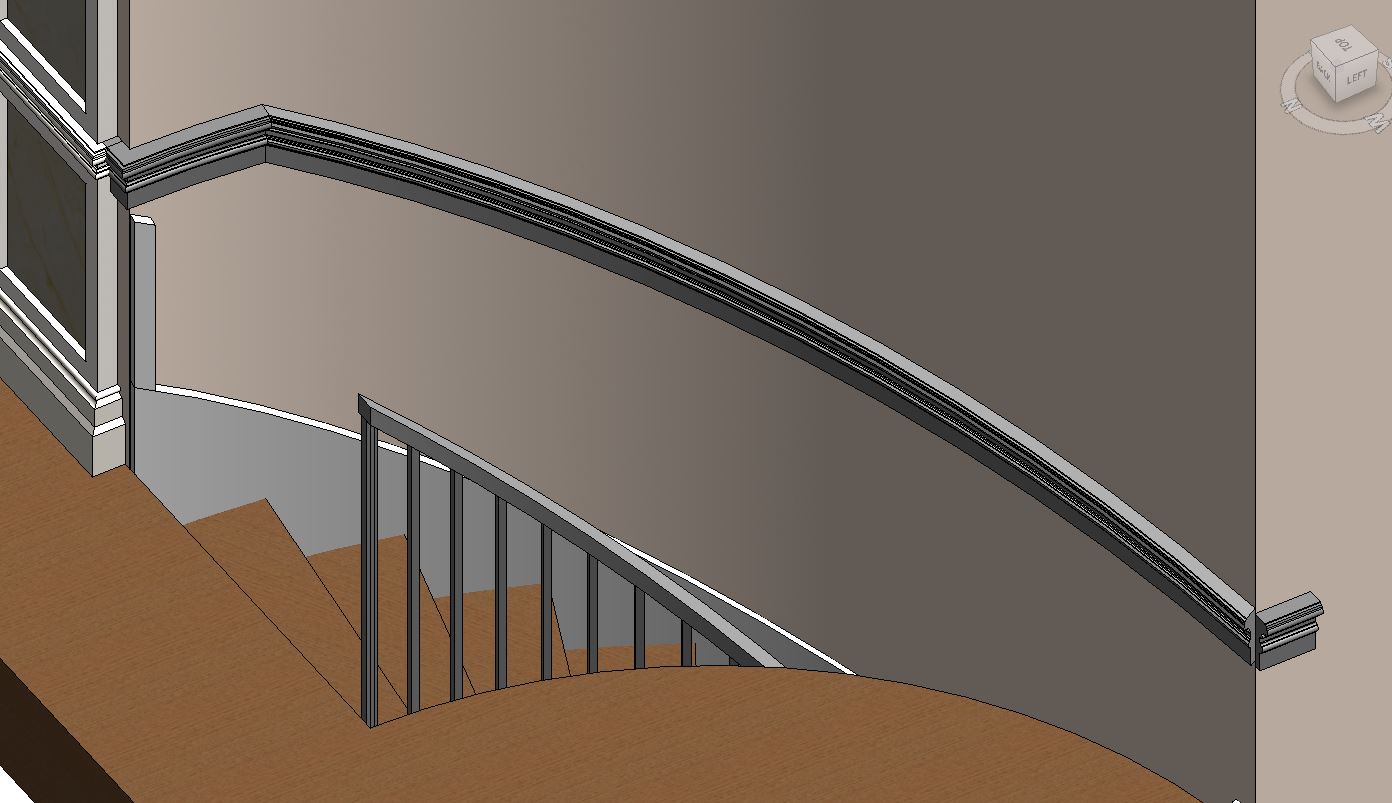

1st image: the profile lose the rounded shape in the curve wall.

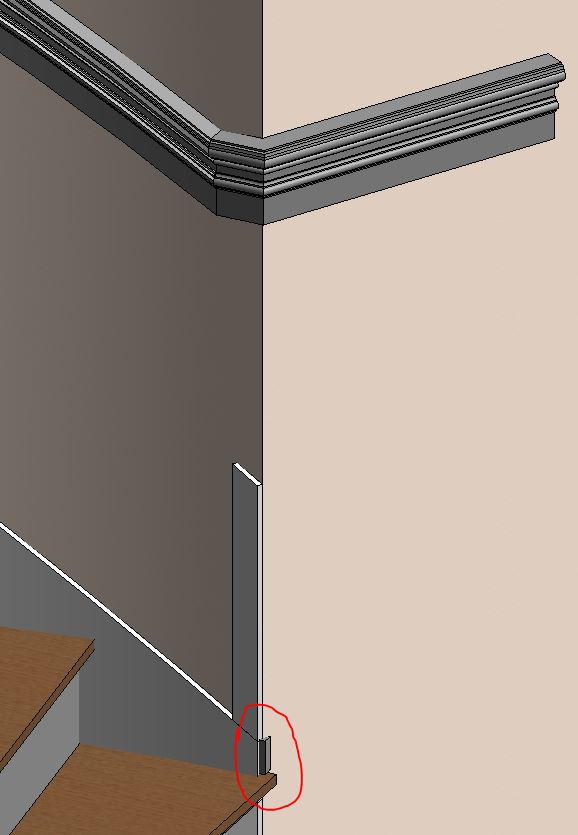

2nd image: the piece in the red circle (or any way you call it) is part of the railing and is only showing in that part and I don't know why.

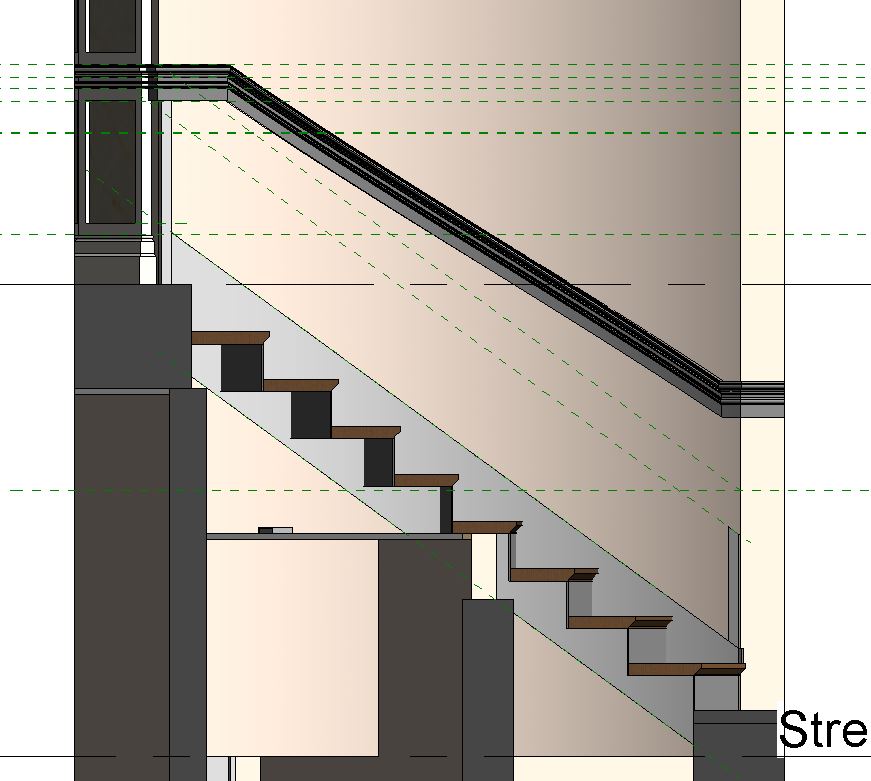

3rd image: the distance between the stair and the railings is not the same in the upper part than in the part below.



How can I fix this things. Thanks!!



Attached Images


This user is offline



Tue, May 26, 2015 at 11:39:43 PM | Wainscoting in a curved wall

#10

pijpiwo


active
pijpiwo Avatar

Joined: Fri, Sep 3, 2010
0 Posts
5 Stars: 23 Votes


@1. I’m not sure why this is happening, or how to get around it, sorry.

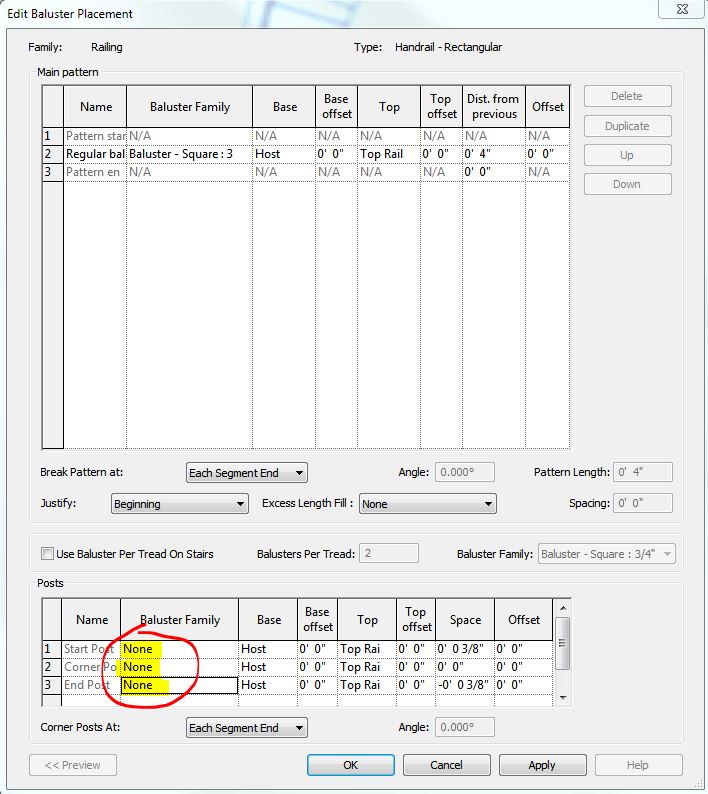

@2. It looks like a post. Make sure they are all set to none (see pic).

@3. It’s because you have that horizontal piece at top. It’s a geometry thing, not Revit. Make the rail to follow the path of the stringer as close as possible. If you need this horizontal piece at top, you can adjust the height of the lower horizontal segment (see my previous pic.), select rail->edit path->select lower flat piece->height correction (options bar)->custom->give it a value - I let you figure it out Winking



Attached Images


This user is offline



Wed, May 27, 2015 at 2:51:14 PM | Wainscoting in a curved wall

#11

arqrivas


active

Joined: Thu, Apr 17, 2014
0 Posts
No Rating


Ok, Thanks!!


This user is offline
