Forums >> Revit Building >> Technical Support >> Curtain-panels - Need to alter extents

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, May 18, 2015 at 9:15:21 AM | Curtain-panels - Need to alter extents

#1

Revin


active

Joined: Tue, Sep 15, 2009
26 Posts
No Rating


Hi all,

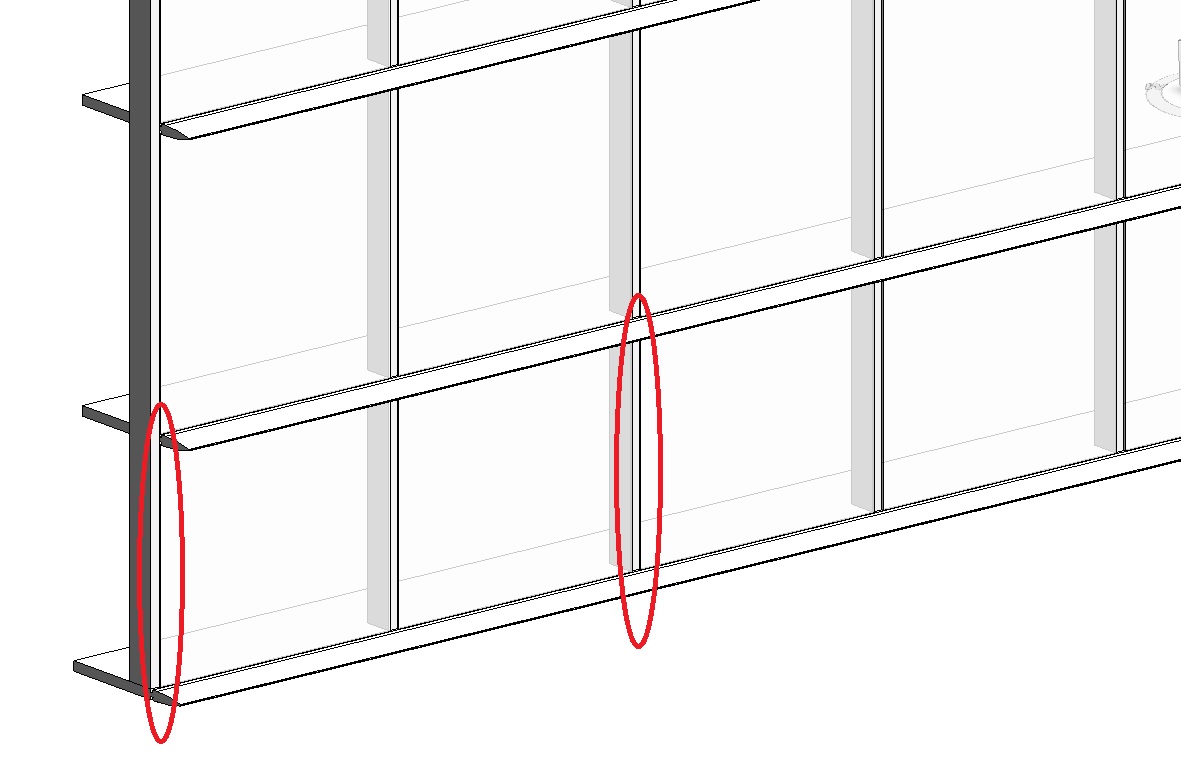

Pls see attached image. I have a curtain-wall, with glazed panels.

The glazed panels are offset to the outside-face of the vertical mullions; problem is that they automatically terminate where the vertical mullions are situated, leaving a large gap between them.

I cannot find a setting in any of the properties dialogues to extend  (or offset) the vertical edges of the glass panels to make the gap between them smaller (since it should be a flush-glazed system).

Also, the edge-panels need to extend past the vertical mullions to cover them completely.

Has anyone found a way around this?

Thanks in advance!

Revit 2015, btw.



Edited on: Mon, May 18, 2015 at 4:15:57 AM

Attached Images


This user is offline



Mon, May 18, 2015 at 9:59:42 AM | Curtain-panels - Need to alter extents

#2

ronmalit


active

Joined: Fri, Mar 30, 2012
113 Posts
5 Stars: 3 Votes


Hi

for the glazed panel did you try to select it (just the glazing only) and edit type, enter offset value, NO? not that one?

for the edge-panels to extend, if i remember it correctly, i made 2 curtain wall type:

one is for glazing system with rectangular mullions and

one is just for the horizontal FINS.

just copy, paste to same location, change type.



Edited on: Mon, May 18, 2015 at 5:01:13 AM

-----------------------------------

** dont be mad, i dont have much... i am homeless

This user is offline



Mon, May 18, 2015 at 12:48:59 PM | Curtain-panels - Need to alter extents

#3

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 361 Votes

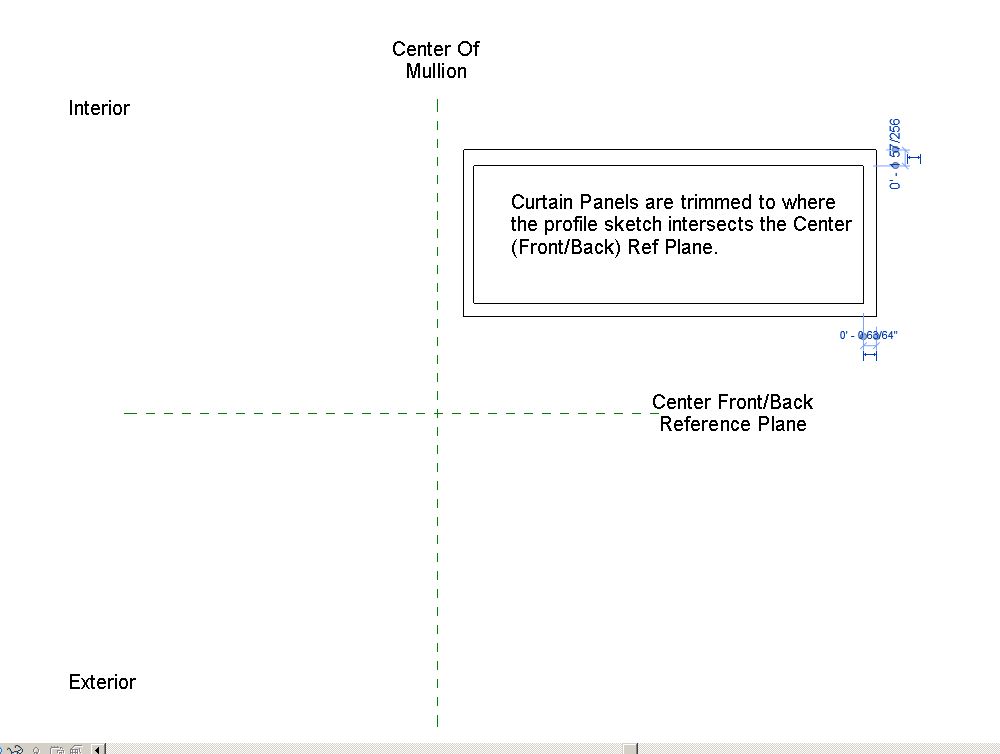

Look at your mullion profile template - the answer is there - I put a box around it.



Attached Images


This user is offline



Tue, Jun 2, 2015 at 1:11:44 PM | Curtain-panels - Need to alter extents

#4

Revin


active

Joined: Tue, Sep 15, 2009
26 Posts
No Rating


Fantastic!

Thanks, WWHub.


This user is offline
