vanderloo

active

Joined: Sun, Dec 21, 2008
84 Posts

I haven't done this for a long time and can't remember how it's done. I need to bob off the end of a ceiling beam where it projects out of the roof. Thanks

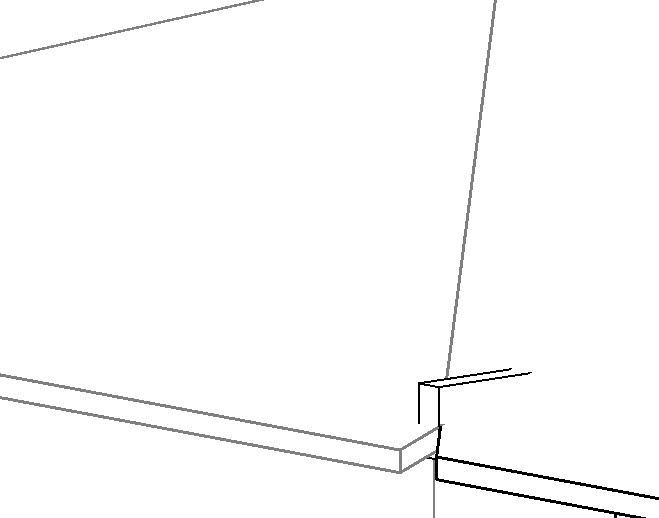

Attached Images

This user is offline

View Website

teafoe5

site moderator|||

Joined: Fri, Nov 12, 2010
1749 Posts

You can use a reference plane the same angle as your roof and trim your beam to that.
