Forums >> Revit Building >> Technical Support >> Drawing lines on 3D topo

Search this ThreadSearch this Thread | Page 1 of 1 |

Wed, Feb 22, 2006 at 12:51:13 AM | Drawing lines on 3D topo

#1

butlerc22


active

Joined: Wed, Oct 26, 2005
2 Posts
No Rating


I created a 3D topo from an imported DWG and can't figgure out how to draw site elements (like a road or property lines) and have them lay on the 3d topo instead of floating above or below it in 3d view. Any ideas? Thanks!

This user is offline



Wed, Feb 22, 2006 at 4:35:14 AM | RE: Drawing lines on 3D topo

#2

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


to draw your property lines go to the site tab and pick the property line tool. regarding roads and sidewalks, you can do 2 ways: 1. split your topo and assign different material 2. more complicated but more accurate, refer tutorial on complex slabs... HTH

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Wed, Feb 22, 2006 at 4:38:54 AM | RE: Drawing lines on 3D topo

#3

butlerc22


active

Joined: Wed, Oct 26, 2005
2 Posts
No Rating


Thanks for the reply, but the property lines you refer to (as far as I understand) only appear on the 2d plan view. I would like to show the property lines on the 3d view. Anyone ever do this? Thanks

This user is offline



Wed, Feb 22, 2006 at 4:41:47 AM | RE: Drawing lines on 3D topo

#4

eldados


site moderator|||
eldados Avatar

Joined: Mon, Mar 14, 2005
777 Posts
4.5 Stars: 8 Votes


the only way to show the property line in 3D is to model it, just make a wall (thickness to suite) and pick your property lines...

-----------------------------------

Integrator

Architectural Engineering Construction

KarelCAD

This user is offline

View Website

Sat, May 9, 2009 at 11:28:08 AM | Drawing lines on 3D topo

#5

Tim130


active

Joined: Wed, Apr 29, 2009
15 Posts
No Rating


I also imported a DWG into revet, this was to use the levels of the site and use the survey features which was contained in the DWG file. I have modeled the site and the trees onto my Revit topography, but would like to know how to 'bind' or 'attach' the dwg lines onto the Revit topo.

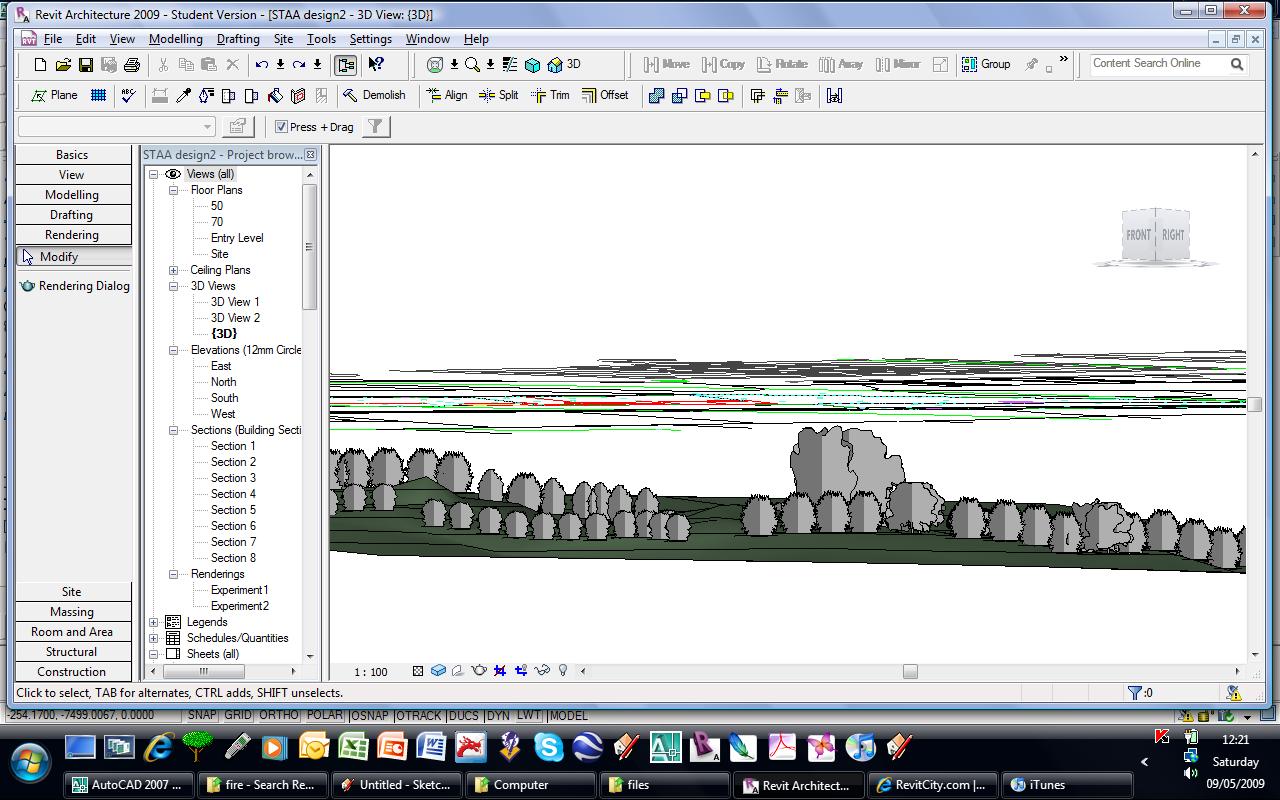

The DWG lines are shown to be floating about the topo in the image which I have attached.

Cheers

Tim



Attached Images


This user is offline



Sat, May 9, 2009 at 12:16:07 PM | Drawing lines on 3D topo

#6

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

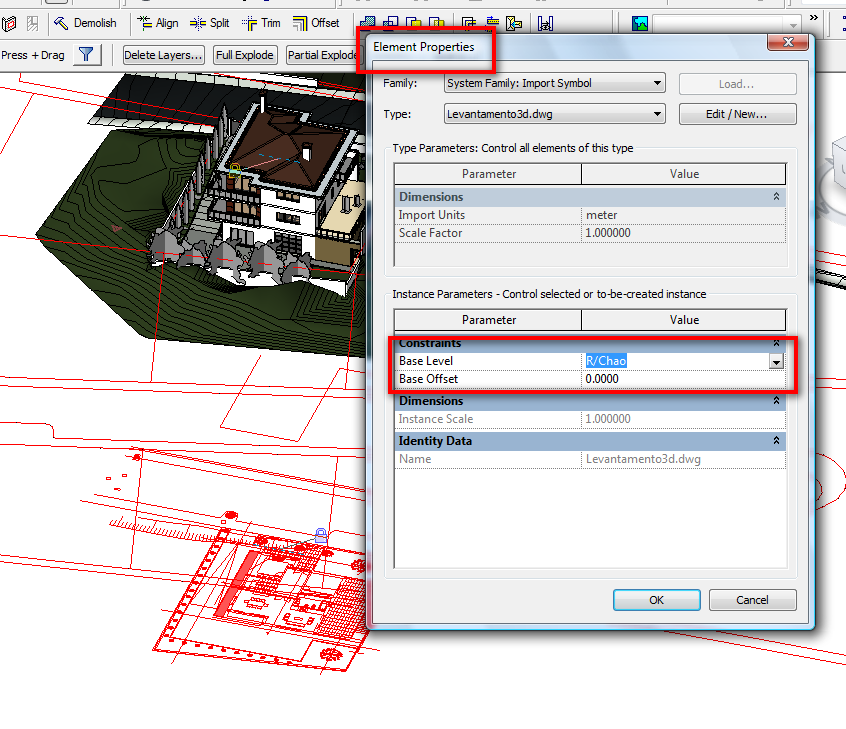

Are your lines in the DWG in 3D??? you can control the level and the offset to position your lines but you CAN'T drapped the lines to the surface like CIVIL 3D does... I don't see any advantage to do that because the CAD file ONLY serve to guide you in your drawing, after that delete them...





Edited on: Sat, May 9, 2009 at 8:47:49 AM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, May 9, 2009 at 1:07:15 PM | Drawing lines on 3D topo

#7

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


You can still use the CAD lines in the plan as information, but there should be no need for this in a 3d view.  You can use the lines as a guide to develop the 3d view as Typhoon suggests to create the different surfaces, such as roads and pavements.

This user is offline

View Website

Sat, May 9, 2009 at 1:43:44 PM | Drawing lines on 3D topo

#8

Tim130


active

Joined: Wed, Apr 29, 2009
15 Posts
No Rating


Thanks both,



I was interested in having the 2d lins which are from a AutoCad DWG be 'draped' over the 3d revit generated topo. However I understand this cannot be done, and I will continue to trace over the 2d lines onto the topo.


This user is offline



Thu, Sep 22, 2011 at 2:29:47 PM | Drawing lines on 3D topo

#9

leeastwoodarch


active

Joined: Wed, Jun 30, 2010
4 Posts
No Rating


For 3D Property lines, here is an imperfect workaround I normally use: create a subregion (or as many as necessary) by tracing your property lines, making sure you form a closed loop(s). Change the material so that your subject property "pops" out from the surroundings in shaded or shaded w edges views. you'll need to create several if you want to diffrentiate between interior and exterior roadworks etc. If you want to show several adjacent lots create several subregions with a small ofset from the property lines so that subregions don't share edges (but appear to). HTH

rsc at jalconsultants.com



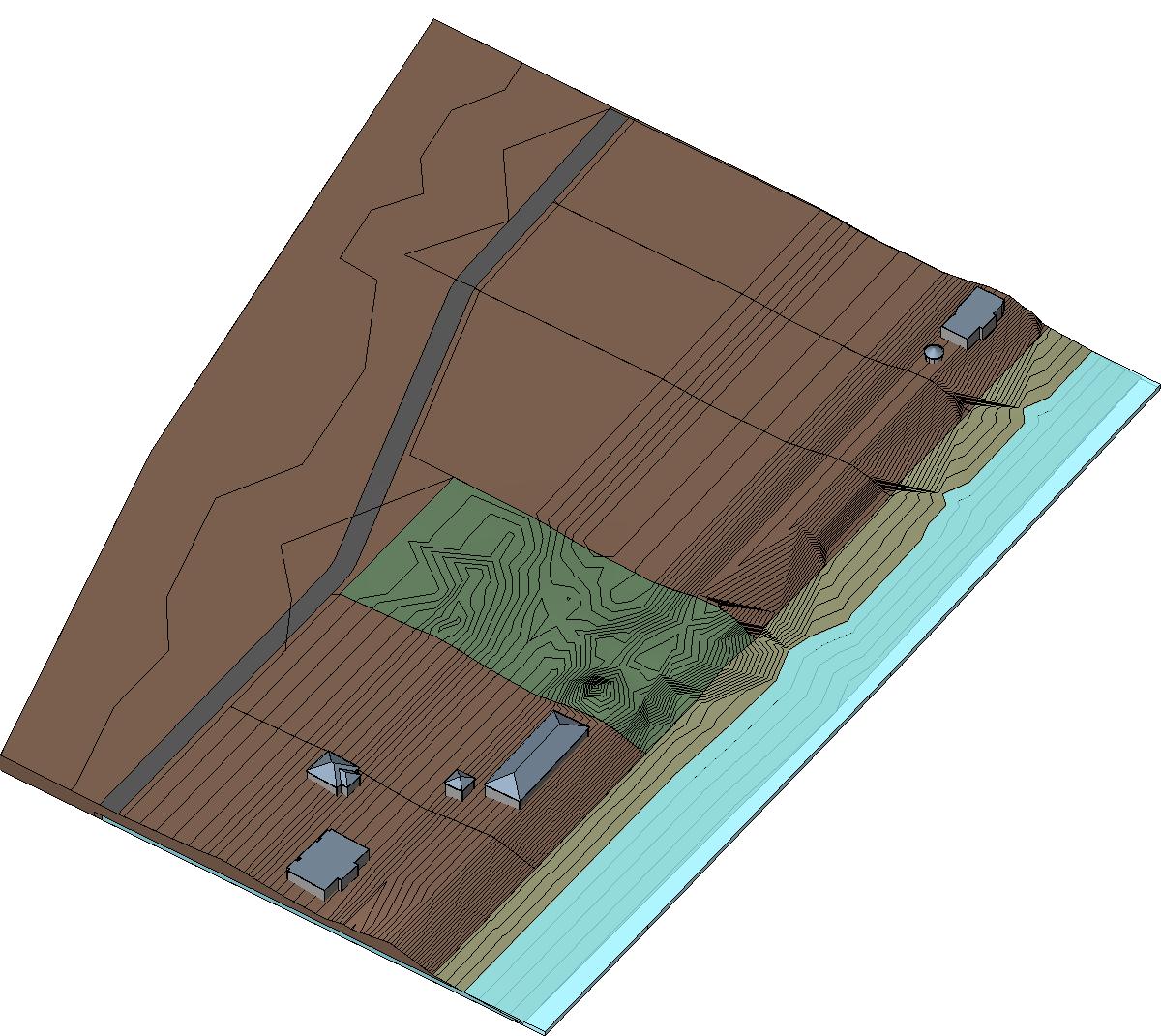

Attached Images


This user is offline
