Forums >> Revit Building >> Technical Support >> dashed line for foundation footings?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Feb 9, 2006 at 7:48:55 PM | dashed line for foundation footings?

#1

basia


active

Joined: Thu, Aug 4, 2005
16 Posts
No Rating


hello - i am working on a foundation plan and need to have my footings appear with dashed lines. when i change the line type in visibility graphics, my foundation walls become dashed as well, which i do not want. is there a way to have the foundation walls appear with solid lines and the footings below to appear with dashed lines? thanks!

This user is offline



Thu, Feb 9, 2006 at 8:25:35 PM | RE: dashed line for foundation footings?

Thread Post Kudo! #2

Xane


active

Joined: Tue, Feb 15, 2005
90 Posts
No Rating


Yes, pick on 'linework' icon, select line you want and pick on line which you want to change

This user is offline



Thu, Feb 9, 2006 at 9:33:01 PM | RE: dashed line for foundation footings?

#3

kbsheppard


active

Joined: Tue, Jan 10, 2006
14 Posts
No Rating


Well yes you could do that but why not let Revit do it for you. When I started I thought I'd have to use a reflected ceiling plan for the structural floor/roof framing members but the trick is to manipulate the cutting planes & viewing planes. In View Properties: 1) Discipline = Structural 2) View Range, Top = Associated Level Bottom = Unlimited View Depth = Unlimited Also make sure Floors are visible.

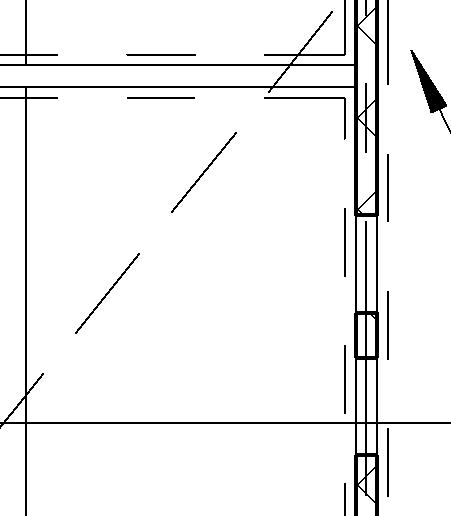

Attached Images


This user is offline



Thu, Feb 9, 2006 at 10:04:06 PM | RE: dashed line for foundation footings?

#4

basia


active

Joined: Thu, Aug 4, 2005
16 Posts
No Rating


thanks - my view range is set up exactly as you say kb, but the footing lines remained solid...xane's method worked out great for now.

This user is offline
