Sat, Oct 13, 2012 at 8:00:00 PM | Custom Steel Truss HELP???

CutCoDelta

active

Joined: Sat, Mar 5, 2011
4 Posts
No Rating

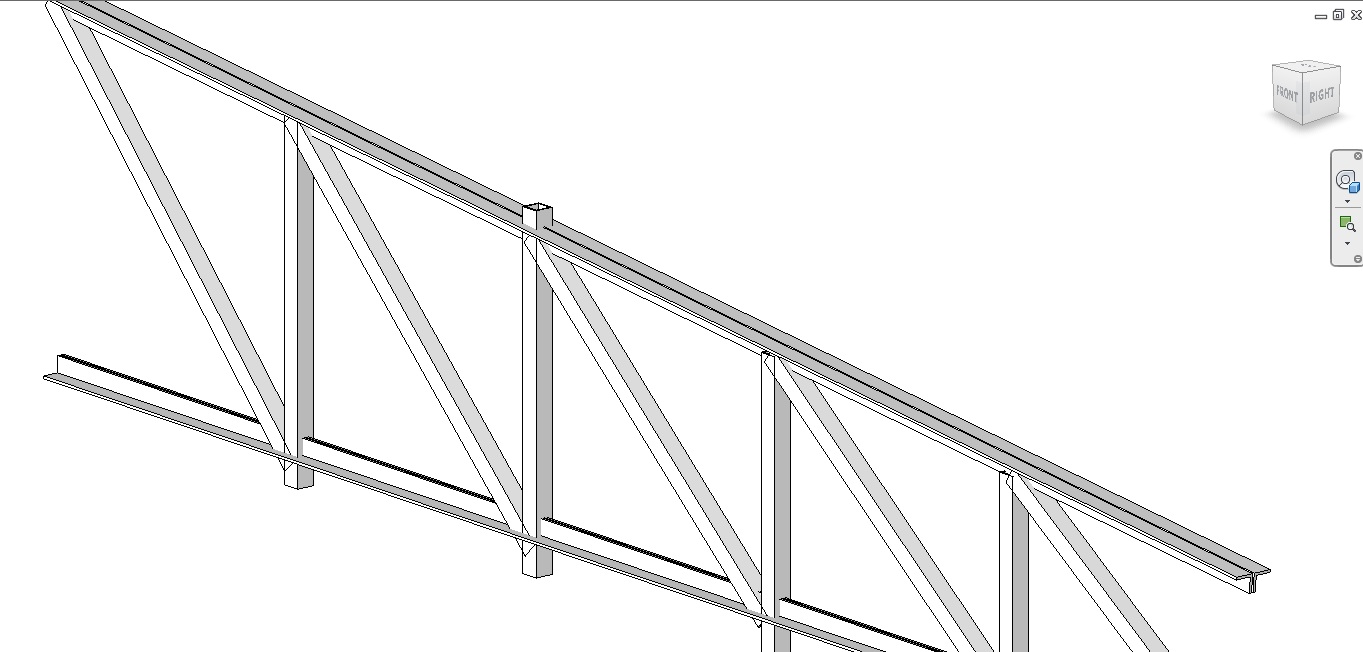

Hi, I've been struggling to create a custom truss that completely miters the joints to the top and bottom chord. I created this "truss" by following the PDF tutorial that is attched. Im stuck now where I can't trim the webbing to make clean joints now. Please help!!

Attached Images

Attached Files

pdf File 112245_HowtoCreateABasicCustomTrussinRevit.pdf

This user is offline
