Forums >> Revit Building >> Technical Support >> Walls disappear in roof plan after attaching to roof.

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, May 26, 2012 at 3:53:03 PM | Walls disappear in roof plan after attaching to roof.

#1

vanderloo


active

Joined: Sun, Dec 21, 2008
84 Posts
5 Stars: 1 Votes

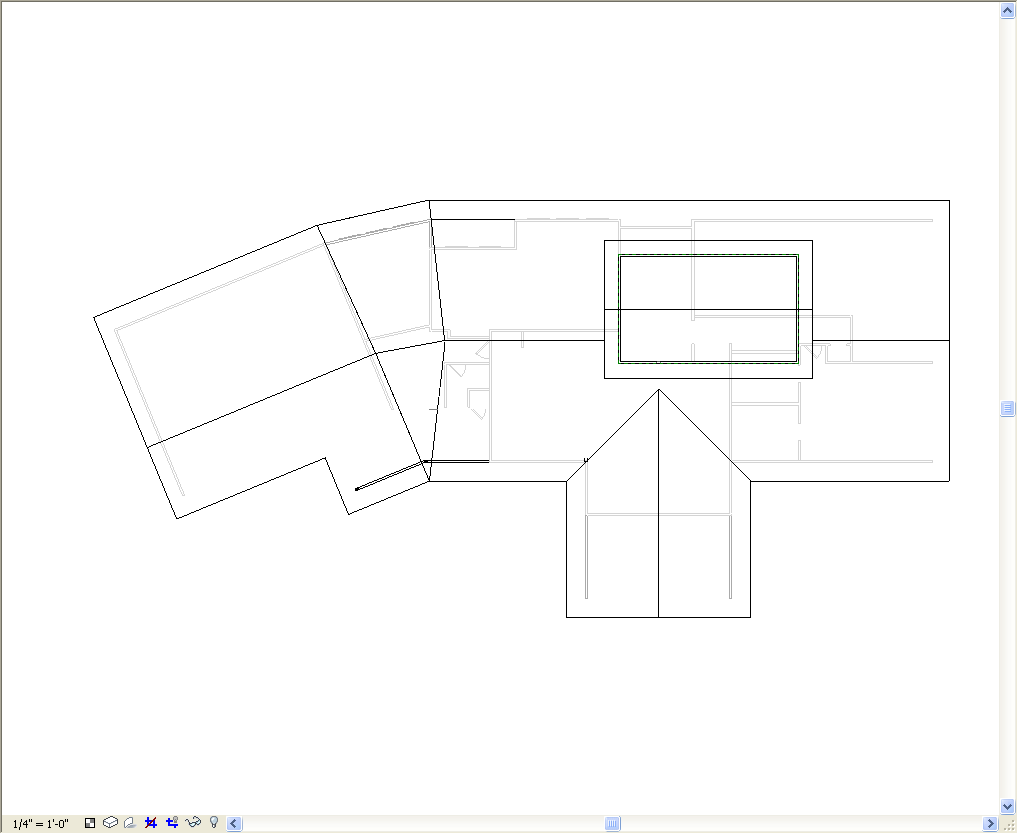

Can't seem to recall the workaround for this, (see attachment). When I attach any walls to the roof, they no longer show in the roof plan. As you can see in the attachment, several perimeter walls seem to be missing. How do I fix??

Thanks,

Phil



Attached Images


This user is offline

View Website

Sat, May 26, 2012 at 4:07:20 PM | Walls disappear in roof plan after attaching to roof.

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 371 Votes


This is correct, you have a roof plan.  Walls that are below the roof and are attached to it are at the bottom of the roof.  Unless you make the roof transparent, you will not see them.



You could have the roof plan with the level below as an underlay.

You could use the level below and underlay your roof then add overhead lines.


This user is offline



Thu, May 31, 2012 at 4:36:02 AM | Walls disappear in roof plan after attaching to roof.

#3

Warchitect


active

Joined: Thu, Aug 21, 2008
318 Posts
4 Stars: 5 Votes


make it wire frame view. then use the detail lines to outline your walls below the roof. then turn off wire frame. the lines can be locked to the walls. do this at the end when your working on graphics and presentation.


This user is offline

View Website
