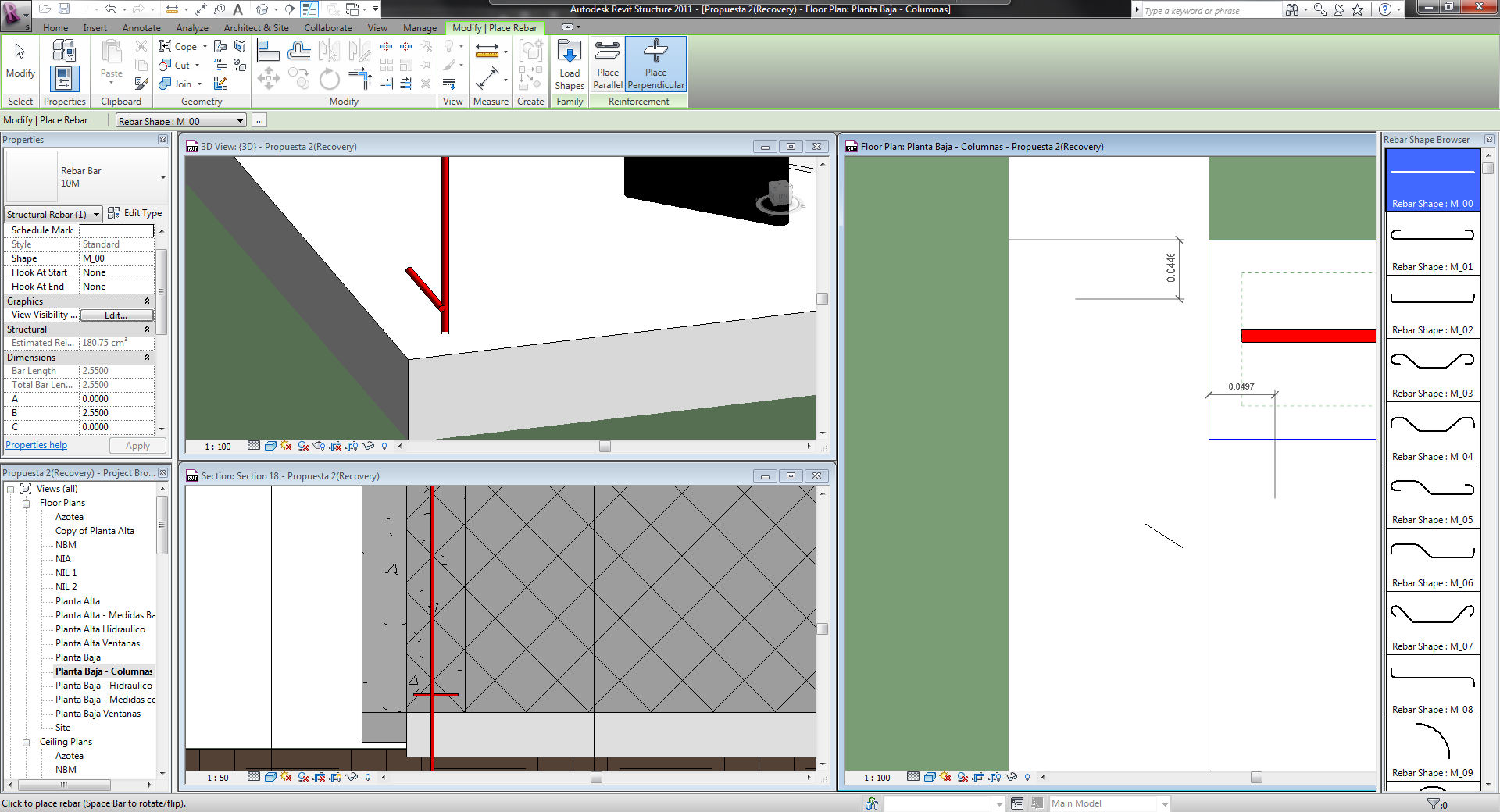

hi, so i am working on structure and something is going on with vertical (perpendicular on floor plan) rebar that are not being displayed on the floor plan. it doesnt say it cant add it, i just cant see it when adding and once its added

on the screen shot i have the 3d view to show they are near and not maybe on a different place,

on the section that is going exactle across the column i am able to add and view at the same time any type of rebar without problems

and there is also the floor plan where i can only see the parallel but not the perpendicular one

hope i was able to explain this correctly and really really need help.

thanks in advance

Attached Images

This user is offline

emorocks

active

Joined: Sat, Sep 20, 2008
42 Posts
No Rating

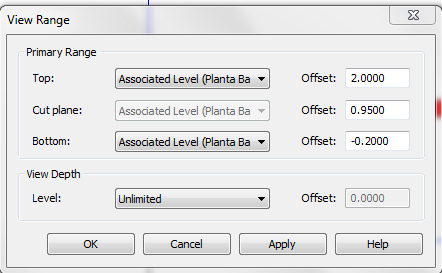

view range on floor plan

Attached Images

This user is offline

jterrell

active

Joined: Thu, Mar 9, 2006
118 Posts

Select the rebar and check the "View Visibility States" in the properties box.

This user is offline

View Website

emorocks

active

Joined: Sat, Sep 20, 2008
42 Posts
No Rating

still the same, i unchecked and checked back again the view unobscured option and still the same

This user is offline
