Forums >> Revit Building >> Technical Support >> Aligning a label to Section-head

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Oct 18, 2011 at 1:43:20 PM | Aligning a label to Section-head

#1

Revin


active

Joined: Tue, Sep 15, 2009
26 Posts
No Rating


Much respect to the genius who can solve this one...

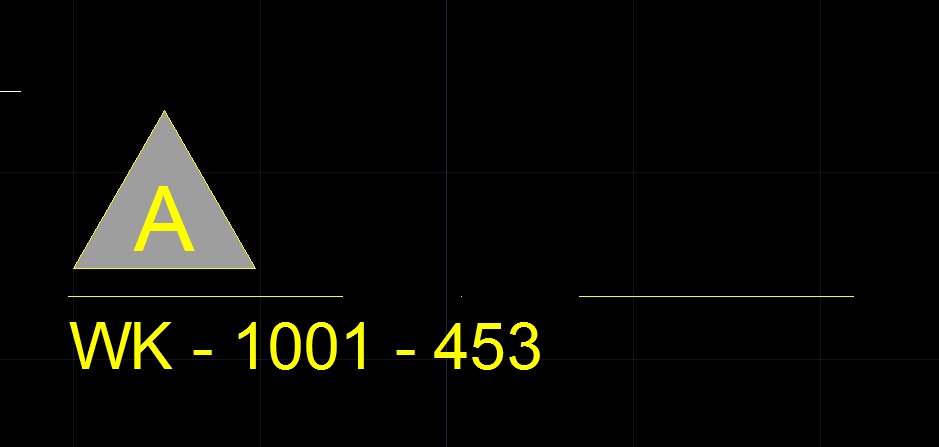

See attached images.The first image shows our  company's standard section-head (drawn in AutoCAD).

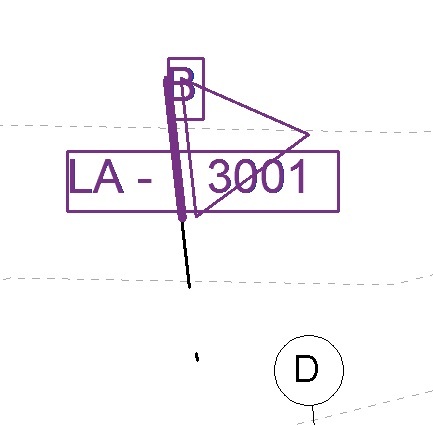

I've created the section-head in Revit, along with two labels; one being the section-number inside the triangle; and the other being the drawing-sheet the section appears on,(aligned to the section-line). The second images displays the revit-drawn section-head.

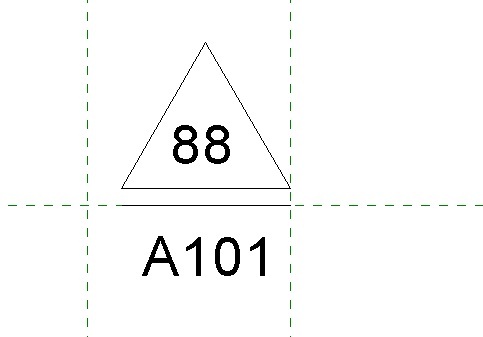

The third image shows how the section-head is displayed after being loaded into the Revit-project. The section-number text needs to be fixed inside the trianlge (but kept readable ; ie. horisontal); and the drawing-sheet number label-text needs to be aligned & locked to the angle of the section-line. I cannot find any way of doing this (ie. locking a text to a point, or locking it to a fixed position in relation to a line with a changeable angle). No matter what I do, each time the section-line is at a different-angle, the label-texts are only shown in fixed relation to the original section-head start-point.

Can anyone solve this one?



Attached Images


This user is offline



Wed, Oct 19, 2011 at 12:44:40 PM | Aligning a label to Section-head

#2

Shikari


active

Joined: Fri, Oct 8, 2010
5 Posts
No Rating


This may be a stupid question but have you made a section head from scratch or have you just modified an existing one?


This user is offline



Wed, Oct 19, 2011 at 1:06:05 PM | Aligning a label to Section-head

#3

Revin


active

Joined: Tue, Sep 15, 2009
26 Posts
No Rating


I've tried both. Doesn't make any difference. The text / label remains the same.

Somehow there has to be a parameter to rotate the text/label to remain aligned to a line...


This user is offline



Thu, Oct 20, 2011 at 6:37:05 AM | Aligning a label to Section-head

#4

Revin


active

Joined: Tue, Sep 15, 2009
26 Posts
No Rating


C'mon guys; there has to be a genius somewhere out there...?


This user is offline



Thu, Oct 20, 2011 at 12:34:06 PM | Aligning a label to Section-head

#5

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Your only options are as described here: http://docs.autodesk.com/subscription/REVIT/2011/ENU/filesUsersGuide/WS46b90c3cb2c58cadb753f8fc7f98a3be-7f81.htm



Wish we could say more.


This user is offline



Thu, Oct 20, 2011 at 7:25:00 PM | Aligning a label to Section-head

#6

Revin


active

Joined: Tue, Sep 15, 2009
26 Posts
No Rating


Thanks, WWHub. I guess there's no quick-fix for this one, then. Cheerio.
