hi

is there any way i can have thinner lines at the en of the walls?

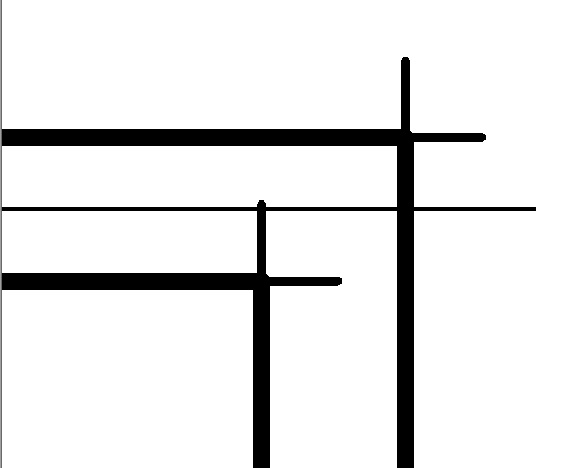

i have attached an example of what I need for my proyect

the middle line is just a grid

i am using revit arch 2011

Attached Images

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

You will have to add these somehow if you really need them.

Sometimes you just need to change your methods and settle for something less in order to get a whole lot more.

This user is offline

emorocks

active

Joined: Sat, Sep 20, 2008
42 Posts
No Rating

yes. for this urgency i had to create pair of lines with a 90° angle and put them on a group and went corner by corner with a copy paste

anyways i which there was some feature like this since i like how it looks, its like back in the days when layouts where made by hand

This user is offline

WWHub

site moderator|||

Joined: Tue, May 16, 2006
13079 Posts

I understand your want .... but ....

You would be better off using a family instead of a group.  Groups tend to slow down the model.  I would make it be 2D linework - in a wall hosted family.  After placing on the one wall face, you can align the other face.  These lines would then turn on / off with the wall and would move with it.
