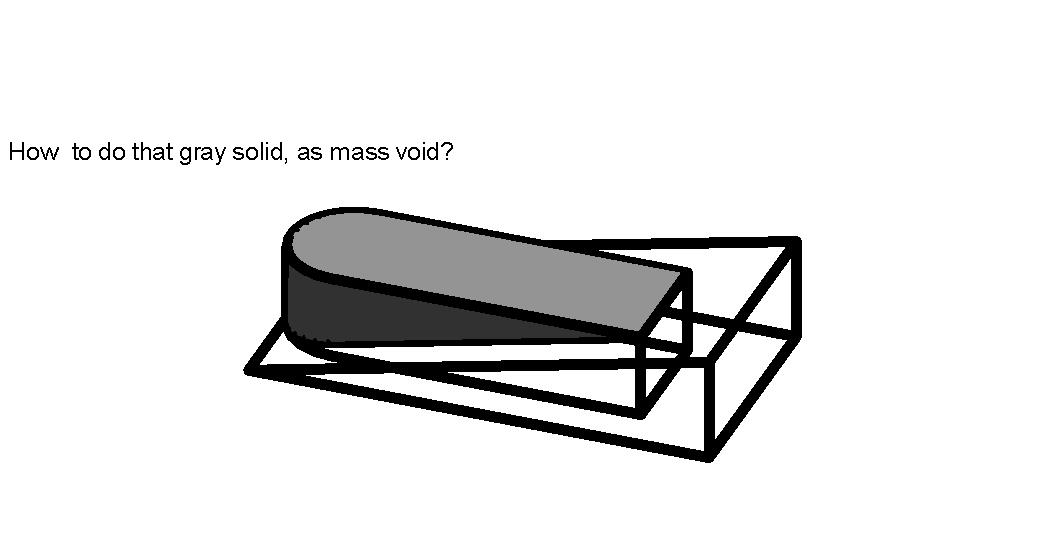

Maybe it is simple but not to me. How to create void mass as in the image?
nirim
|
This user is offline |
|
 |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
 |
Looks like you already have. Did you set what it was to cut? Did you read your HELP on voids?
|
This user is offline |
|
|
|
active
Joined: Tue, Dec 19, 2006
140 Posts
|
WWHub
What I need is the gray object (solid) to be as void to be nested in another family to cut a solid geometry.
nirim
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
As far as I know, only hosted families can have voids that cut their host. Otherwise the void has to reside in the family with the element to be cut.
|
This user is offline |
|
|
|
active
Joined: Tue, Dec 19, 2006
140 Posts
|
WWHub
Thanks for the reply
But I am not overly concern with the cutting issue (at the moment) I simply don’t know how to build that gray object as a void. I can make it as solid by cuting the solid with a void, I then left with a solid object the shape that I need. The problem is that I need it to be a void.
nirim
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
I'm sorry but this doesn't make sense. A void is not an object, its only purpose is to cut a solid. Looking at your image and reversing it says to me that you simply create a void like your solid and place it at an angle like you have. Any part of the void beyond the solid doesn't matter.....
|
This user is offline |
|
|
|
active
Joined: Tue, Dec 19, 2006
140 Posts
|
How to do that form?
nirim
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|

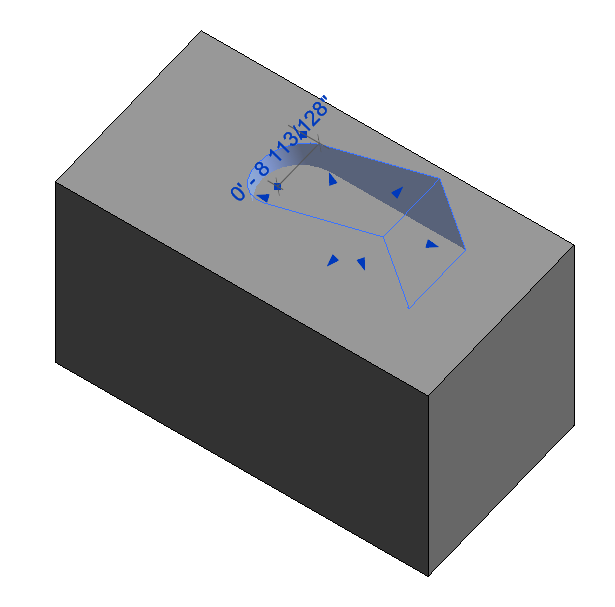

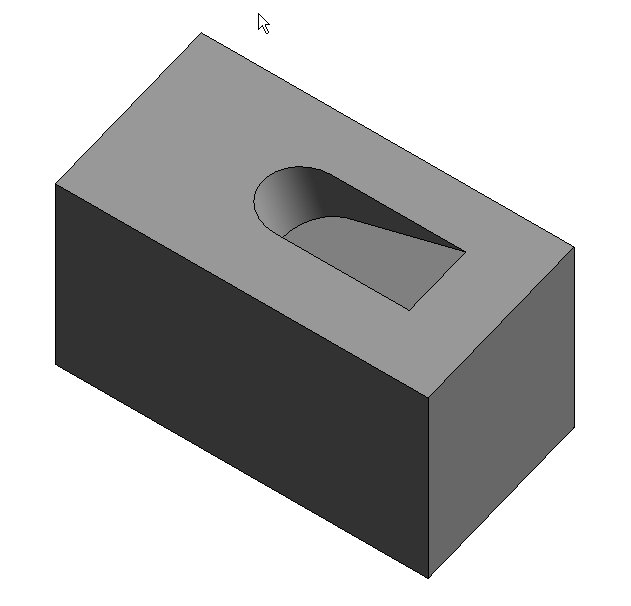

You do it like the attached.
|
This user is offline |
|
|
|
active
Joined: Tue, Dec 19, 2006
140 Posts
|
WWHub

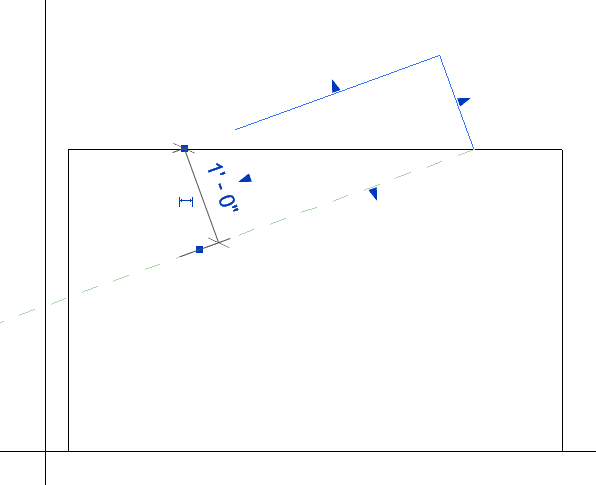

Thanks for the help. I don’t want to bore you but your object is nearly there but not completely (see attached drawing).
nirim
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |

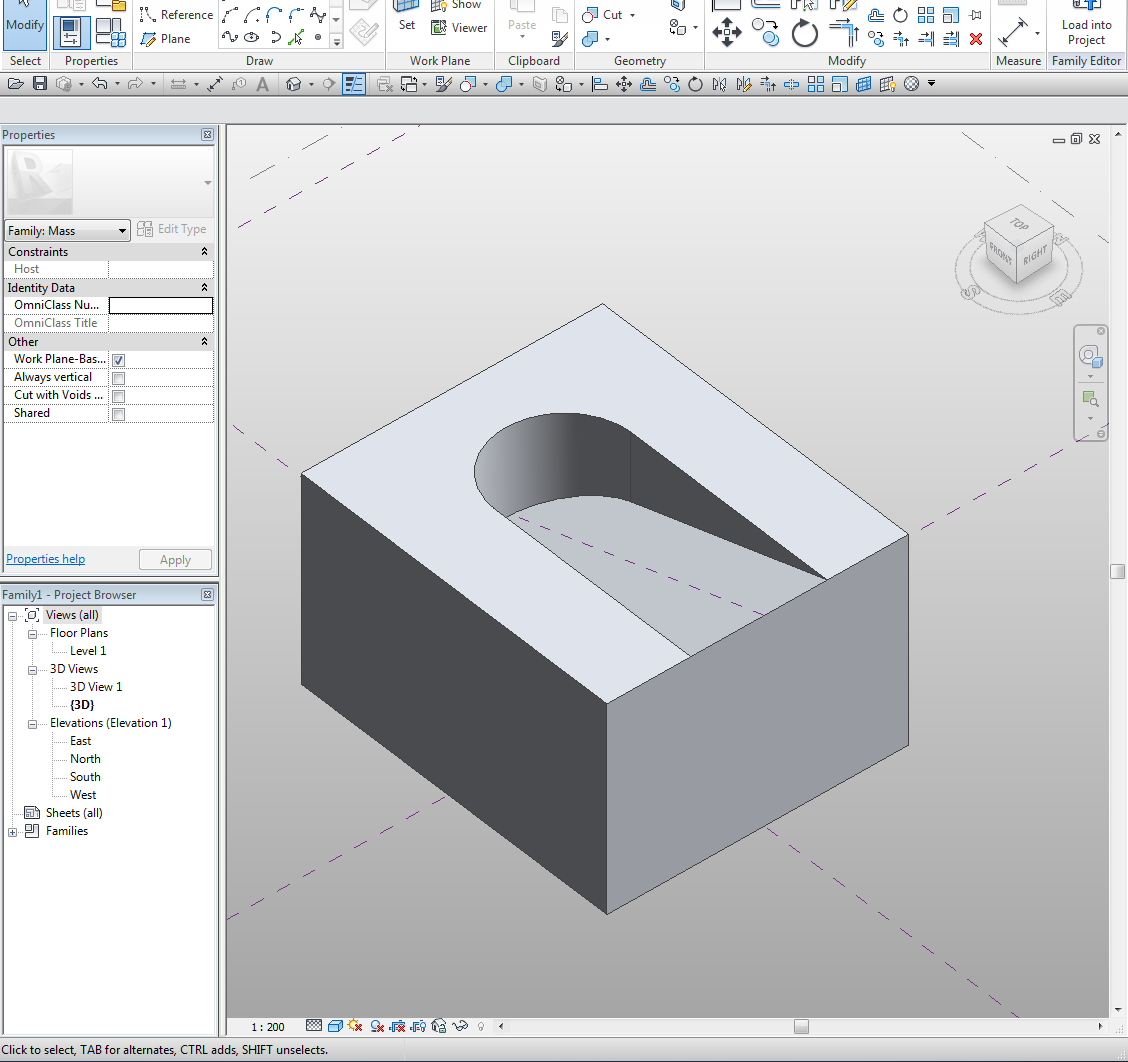

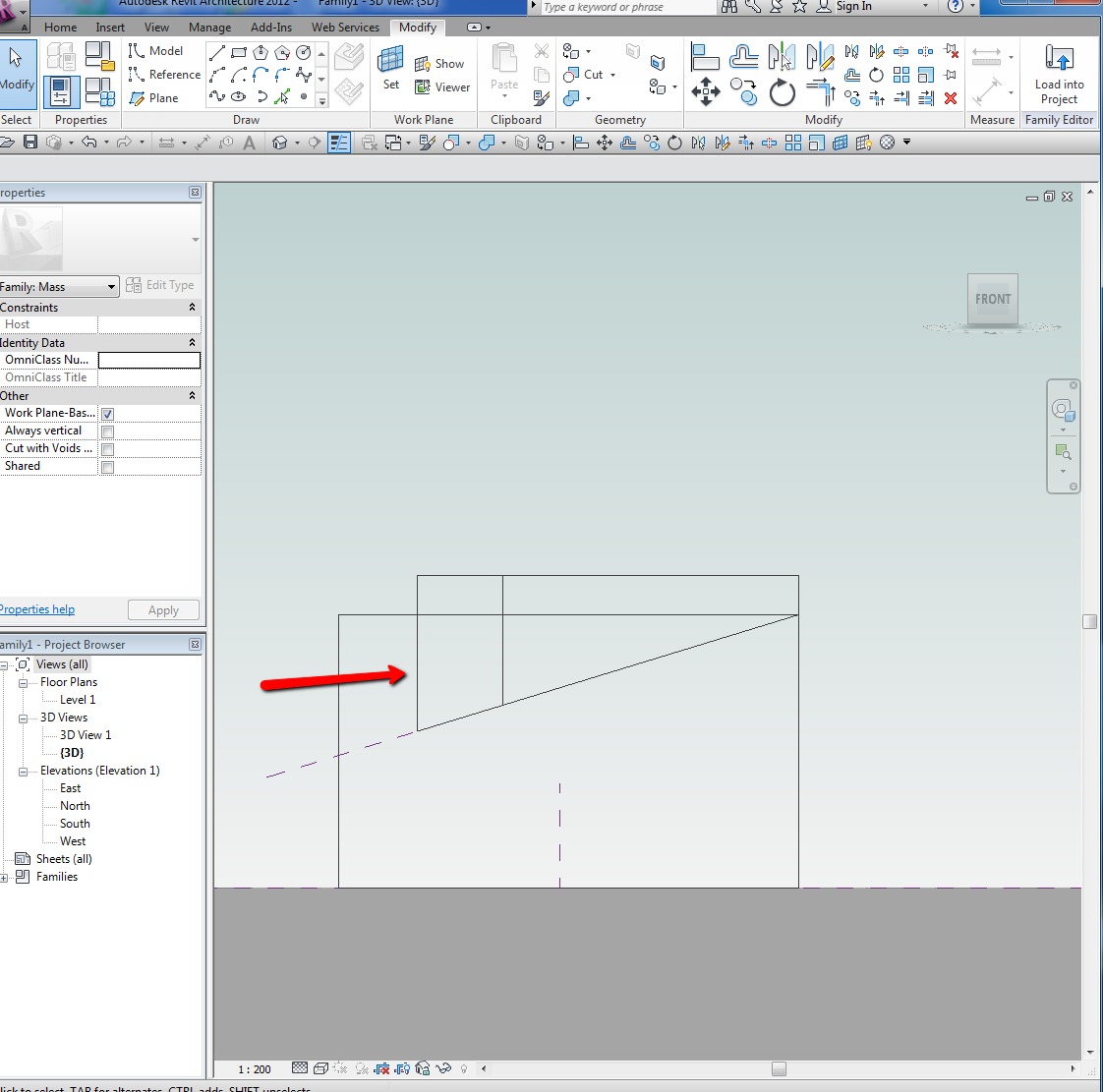

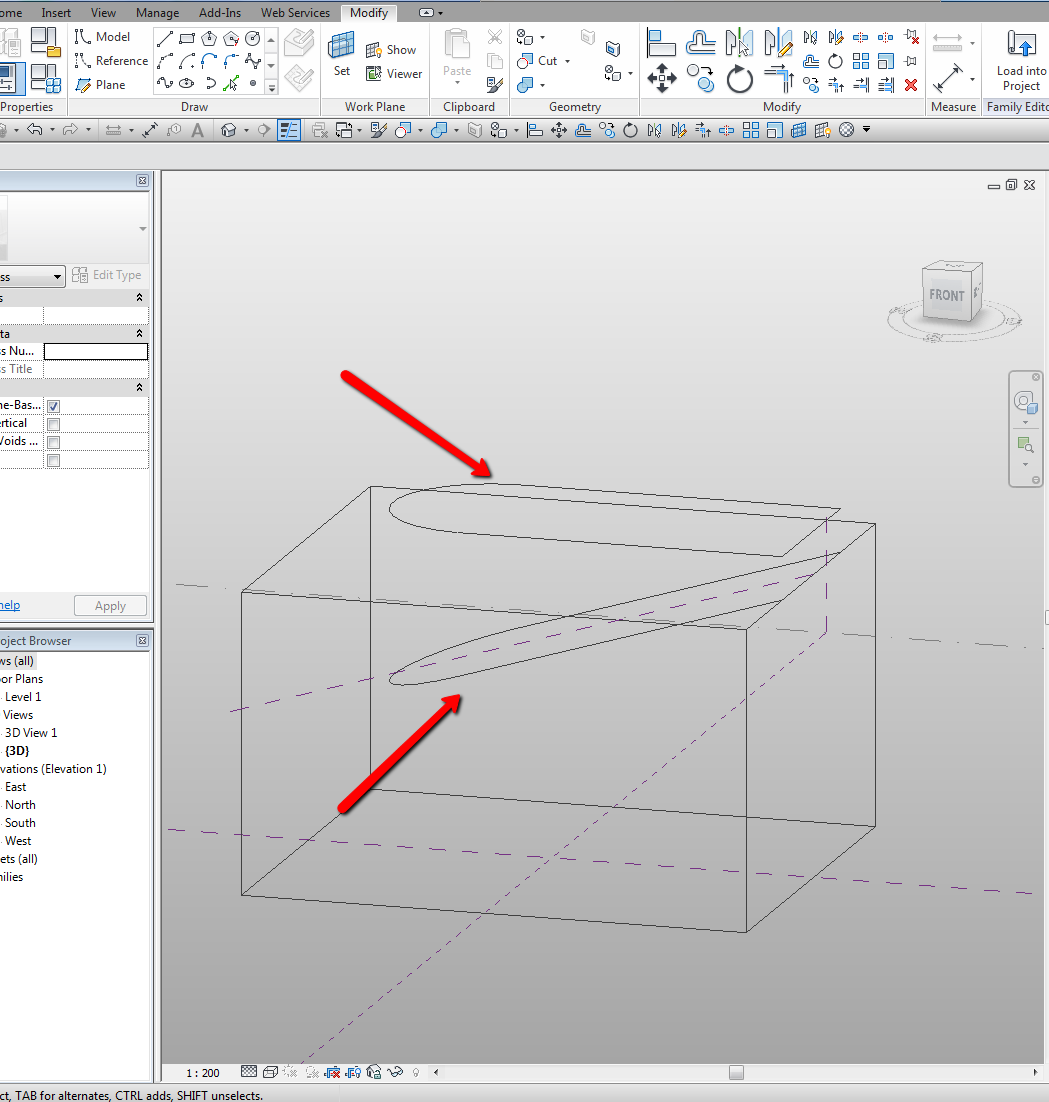

You will need to create that like a "VOID BLEND", two profiles like you can see in my attached images, set the "Work Plane" to the "sloped" ref plane and draw (in plan view) the shape, then, select the other "Work Plane" ("flat" surface - top of that mass) and draw again the same shape, select the two profiles and select create void, done...
BTW, watch the video: http://screencast.com/t/7mS6e7BK7S
Edited on: Tue, Jun 21, 2011 at 1:19:54 PM
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
|
|
active
Joined: Tue, Dec 19, 2006
140 Posts
|
Many thanks, that is grate help.
