I am trying to apply tile to a bathroom floor, but it goes over the tub and toilet, etc. How do I get the hatch to go around the fixtures?
Thanks,
FRS8
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Mon, Jan 12, 2004
2889 Posts
 |
Make sure the tub and toilets 3D visibilities are turn on in plan. Most likely the 3D elements are turned off in plan and a symbolic representation is shown. The problem with doing this is the tile pattern of the floor shows through.
Alternate solution is to nest a detail component into the family containing a filled region to block out the hatch pattern (if the 3D element is a imported dwg and has excessive linework that you don't wish to show in plan)
|
This user is offline |
View Website
|
|
|
active
Joined: Tue, Nov 8, 2005
7 Posts
No Rating |
Thanks for responding. Where do you turn on the 3d visibility of the tub and the toilet? I looked in View Properties, Visibility but I didn't see anything for 3d specifically.
Thanks,
FRS
|
This user is offline |
|
|
|
active
Joined: Tue, Feb 15, 2005
90 Posts
No Rating |
I think that Mr Spot want to say to turn on visibility of family (category) that contain 3d toilet, etc
or may be not ... or ...
|
This user is offline |
|
|
|
site moderator|||
Joined: Mon, Jan 12, 2004
2889 Posts
|
Open the family.
Switch to 3D view.
select each of the elements.

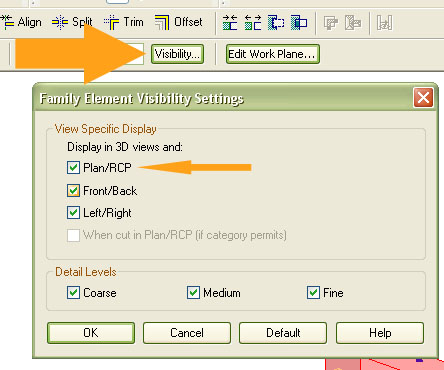

Click the visbility button. (refer image)
Check its on in plan.
|
This user is offline |
