Forums >> Revit Building >> Technical Support >> foundations reacting with columns

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Oct 22, 2009 at 5:49:35 PM | foundations reacting with columns

#1

alabaster2513


active
alabaster2513 Avatar

Joined: Tue, Jan 16, 2007
1009 Posts
3.5 Stars: 25 Votes

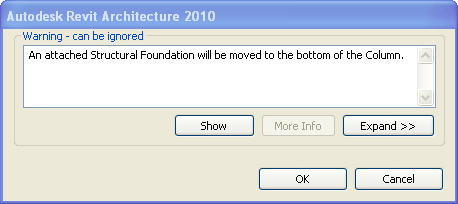

I want to make a pier cap in the foundation category but every time i set it on top of the pier Revit by default sends it to the bottom of the pier. does anyone know how to prevent this and while still keeping my family in the foundations category?

Attached Images


This user is offline

View Website

Thu, Oct 22, 2009 at 7:00:52 PM | foundations reacting with columns

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


I created a new level (top of piles) and associated the pile cap with that, with no offset.  The pile cap then attaches to the top.  You can set the top of the pile relative to that level also.

This user is offline

View Website
