Fri, Aug 28, 2009 at 10:15:57 PM | Use Pat Files

#1

tazman1


active
tazman1 Avatar

Joined: Wed, Dec 3, 2008
35 Posts
5 Stars: 1 Votes


 How do you make, for instance, a ceramic tile wall, using autocad pat files?  I have been trying to use the Decal command in Revit Arch 2009 but it only reads image files.  Is there a way to either use the pattern files to raise the texture of the pattern or convert a pat file to a bmp or jpg?

This user is offline



Fri, Aug 28, 2009 at 11:33:33 PM | Use Pat Files

#2

qabulin


active
qabulin Avatar

Joined: Mon, Aug 25, 2008
74 Posts
5 Stars: 1 Votes


Do you have an image or an example of what it is your trying to make?



Most of the pattern files are for the benefit of a 2D representations, whereas you have "texture" files for the rendering.  There are tons of tutorials on texture files and the modification and creation thereof.


-----------------------------------

qab

^_^



Debian + VirtualBox + Revit

This user is offline



Sat, Aug 29, 2009 at 12:46:34 AM | Use Pat Files

Thread Post Kudo! #3

tazman1


active
tazman1 Avatar

Joined: Wed, Dec 3, 2008
35 Posts
5 Stars: 1 Votes


Maybe that's the problem.  The pat files were left over from Autocads hatches.  What is the extention of the texture files?

This user is offline



Sat, Aug 29, 2009 at 1:14:32 AM | Use Pat Files

#4

qabulin


active
qabulin Avatar

Joined: Mon, Aug 25, 2008
74 Posts
5 Stars: 1 Votes


just standard image files...  you can use photoshop to modify and create texture files.  in fact, photoshop and image modification sites will have the best resources for texture maps.



go to your materials settings ( i think under "Tools"... sorry i use 2010 version ) and explore the rendering texture files on the right of a material... let's a tile.  this may help give you some ideas.


-----------------------------------

qab

^_^



Debian + VirtualBox + Revit

This user is offline



Sat, Aug 29, 2009 at 1:49:31 AM | tazman1

#5

erland73


active
erland73 Avatar

Joined: Fri, Sep 7, 2007
738 Posts
4.5 Stars: 85 Votes


Quoting tazman1 from 2009-08-28 17:15:57

" How do you make, for instance, a ceramic tile wall, using autocad pat files?......".

I don't really know if you want to create one or you already have it, but in anyway I think you should read your HELP for this....

Attached Images


-----------------------------------

 “Learning never exhausts the mind.” Leonardo Da Vinci



This user is offline



Sat, Aug 29, 2009 at 10:50:57 AM | Use Pat Files

#6

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Do you want a hatch pattern for 2d drawings or shaded 3d views or a texture for rendered images?

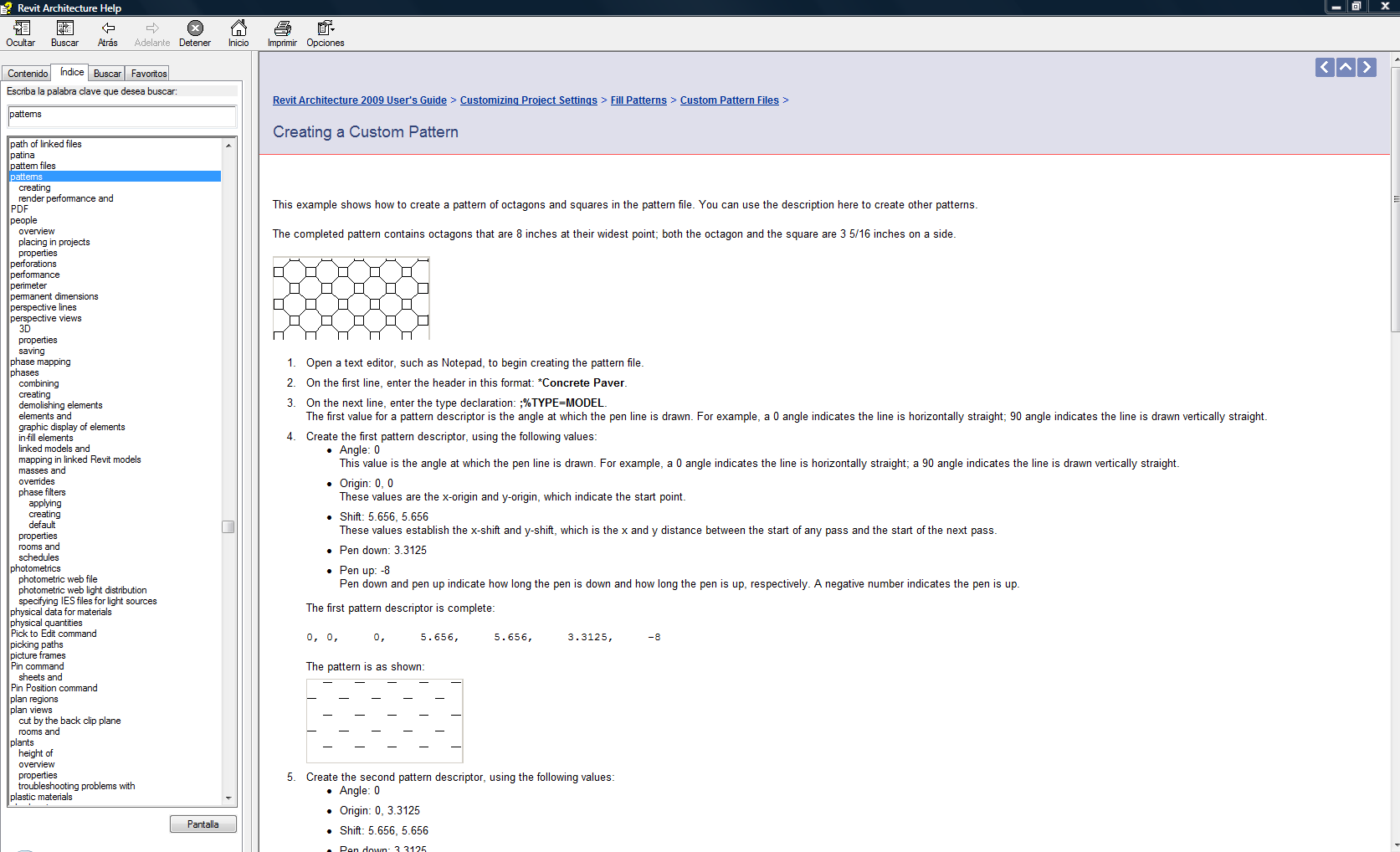

If it's the former, you can create simple patterns, such as rectangular tiles easily in Fill Patterns, or more complicated ones by defining them in the pat file as suggested by Erland.  The attached PDF gives a better explanation on how to define these (I created this to remind myself as it can be a bit complicated).  Alternatively, you can import AutoCAD hatches.

If its a texture for rendering, you can also create this from an AutoCAD hatch (or any) by just doing a screenshot of the pattern and saving it as a JPG.  You can then use that as a bump map, or change the colour in Photoshop to create the pattern for the tiles and have a tile map and bump map.  There are loads that ship with Revit, so you might be able to just use those.

If you have a photo of the tiles you can also create a map from that, by cropping and adjusting the perspective in Photoshop.  There are many options, but you should be able to create any map that you require



This user is offline

View Website

Mon, Aug 31, 2009 at 4:13:44 PM | Use Pat Files

#7

tazman1


active
tazman1 Avatar

Joined: Wed, Dec 3, 2008
35 Posts
5 Stars: 1 Votes

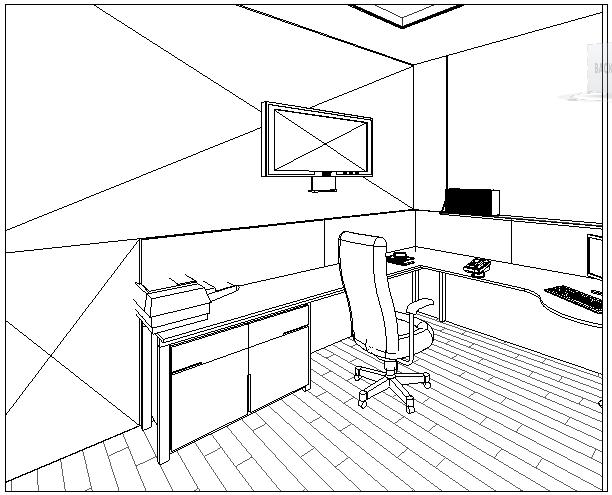

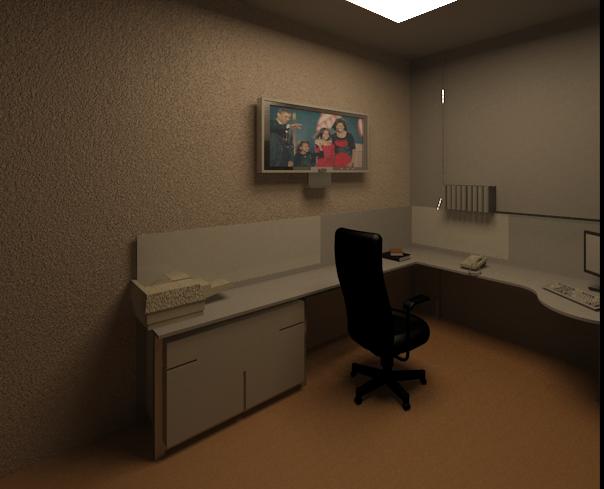

I did some reading and experimenting.  I used decal to put the Obama Family on the TV and the attached cliffstone to the wall.  Then I used split face and paint to add cherry wood & the wood planks design to the floor.  The cliffstone decal and the wood planks didn't come out when I rendered. Help anyone?

Attached Images

65452_Obama_Office_Rendering_BW.JPG65452_Obama_Office_Rendering.jpg65452_cliffstone.jpg

This user is offline



Mon, Aug 31, 2009 at 5:45:35 PM | Use Pat Files

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

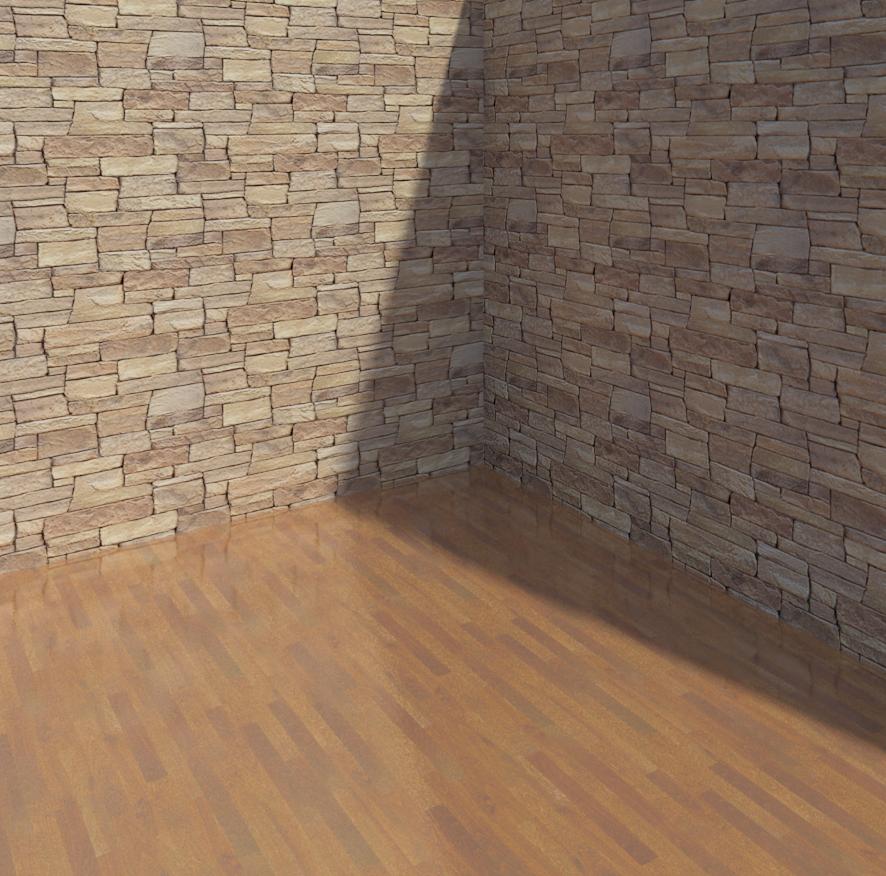

Why you use "Decals" to put "materials" in the wall or floor??? I don't get it, you can apply that material "Cliffstone" to the "layer" of the wall.... and the wood planks design to the floor (material also, NOT decal)....





Edited on: Mon, Aug 31, 2009 at 1:07:00 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Aug 31, 2009 at 6:12:32 PM | Use Pat Files

#9

tazman1


active
tazman1 Avatar

Joined: Wed, Dec 3, 2008
35 Posts
5 Stars: 1 Votes


Where to I find/ use the "layer" of the wall?

This user is offline



Mon, Aug 31, 2009 at 6:21:02 PM | Use Pat Files

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes

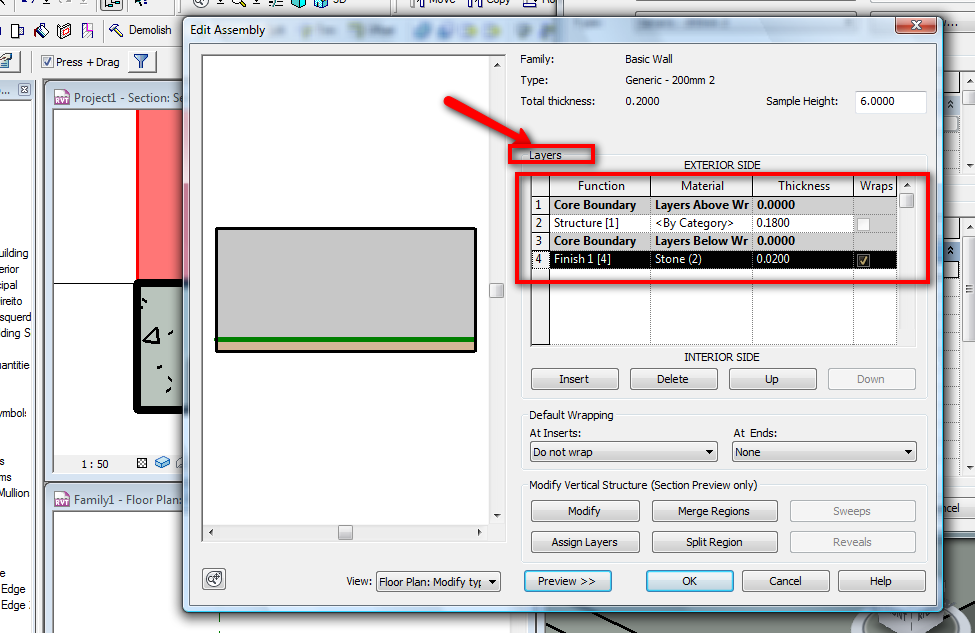

This is a "Layer".... pick in the wall and go to the properties, Edit/new.... check the help menu how you can create a wall with several layers/functions....





Edited on: Mon, Aug 31, 2009 at 1:21:59 PM

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Aug 31, 2009 at 9:36:11 PM | Use Pat Files

#11

tazman1


active
tazman1 Avatar

Joined: Wed, Dec 3, 2008
35 Posts
5 Stars: 1 Votes


Looking up layers in the help menu got me lost in learning new language and terms.   However I think I got it on the walls.  Still working on isolating one room on the floor.


This user is offline



Tue, Sep 1, 2009 at 9:18:40 AM | Use Pat Files

#12

triskelion


active

Joined: Mon, Feb 16, 2009
27 Posts
5 Stars: 1 Votes


Click on your wall and check element properties, EDIT/NEW, edit structure and then in the Edit Assembly change or assign material/s to your wall finish (interior and exterior). Same procedure with your floor finish. Hope this helps.

-----------------------------------
"PRIMUM NIL NOCERE.........Man is brother unto man"
