Forums >> Revit Structure >> Technical Support >> Beam and joist pockets

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, Aug 27, 2009 at 10:59:07 AM | Beam and joist pockets

#1

Thechadillac


active

Joined: Thu, Jul 23, 2009
1 Posts
No Rating


O.K. here is the problem....

I am trying to extend beams thru my concrete walls and then bearing in a pocket on other walls. I have been trying to research  how to acomplish this and have read some people putting mass voids in there walls which seem's problematic if you have 30+ beams to pocket. Then I have also read that people are able to click a box in there beam's element properties to pocket the beam on one end or the other. This seams like the most logical way to get the job done but when I open my beam element properties.....there are no such options. Does it take a special beam family to have those settings avalible, or do I need a specific version of Revit? I am using Structure so I would think that it would be the version to have this avallible.

Once I figure out how to do this I have to take on the next problem associated with the beam pocket.....putting a bearing plate under it and leaving room for grout in the pocket to show up in my wall sections so that I can get accurate pocket and beam heights.

HELP!


This user is offline



Tue, Sep 22, 2009 at 6:32:29 AM | Beam and joist pockets

#2

Irishfriend


active

Joined: Fri, Nov 2, 2007
6 Posts
No Rating


Hello,

I don't know if this willl help, but this is the way i would do it.

I would make a portion of a stacked wall in front of every beam

and then in a detail or section view i would do the rest of de detailing

Hope this was goood for some help



Attached Images


This user is offline



Fri, Oct 9, 2009 at 2:00:41 PM | Beam and joist pockets

#3

emgeeo


active

Joined: Wed, Mar 12, 2008
322 Posts
3.5 Stars: 7 Votes


This can be done with Wall Reveals.  I guess the big questions is- how does this benefit you?  Is it worth detailing these reveals.  It's not so dificult to do, but it requires some fore-thought.  Also, it's not the most flexible solution.  There are things you can do to make it semi-parametric, but it is not seamless.



Do you know how to create and manipulate wall reveals?



I can help you with this/provide more information if needed.



Edited on: Fri, Oct 9, 2009 at 2:01:43 PM

This user is offline



Mon, Nov 29, 2010 at 8:56:22 AM | Beam and joist pockets

#4

CanadianLizard


active

Joined: Fri, Nov 26, 2010
4 Posts
No Rating

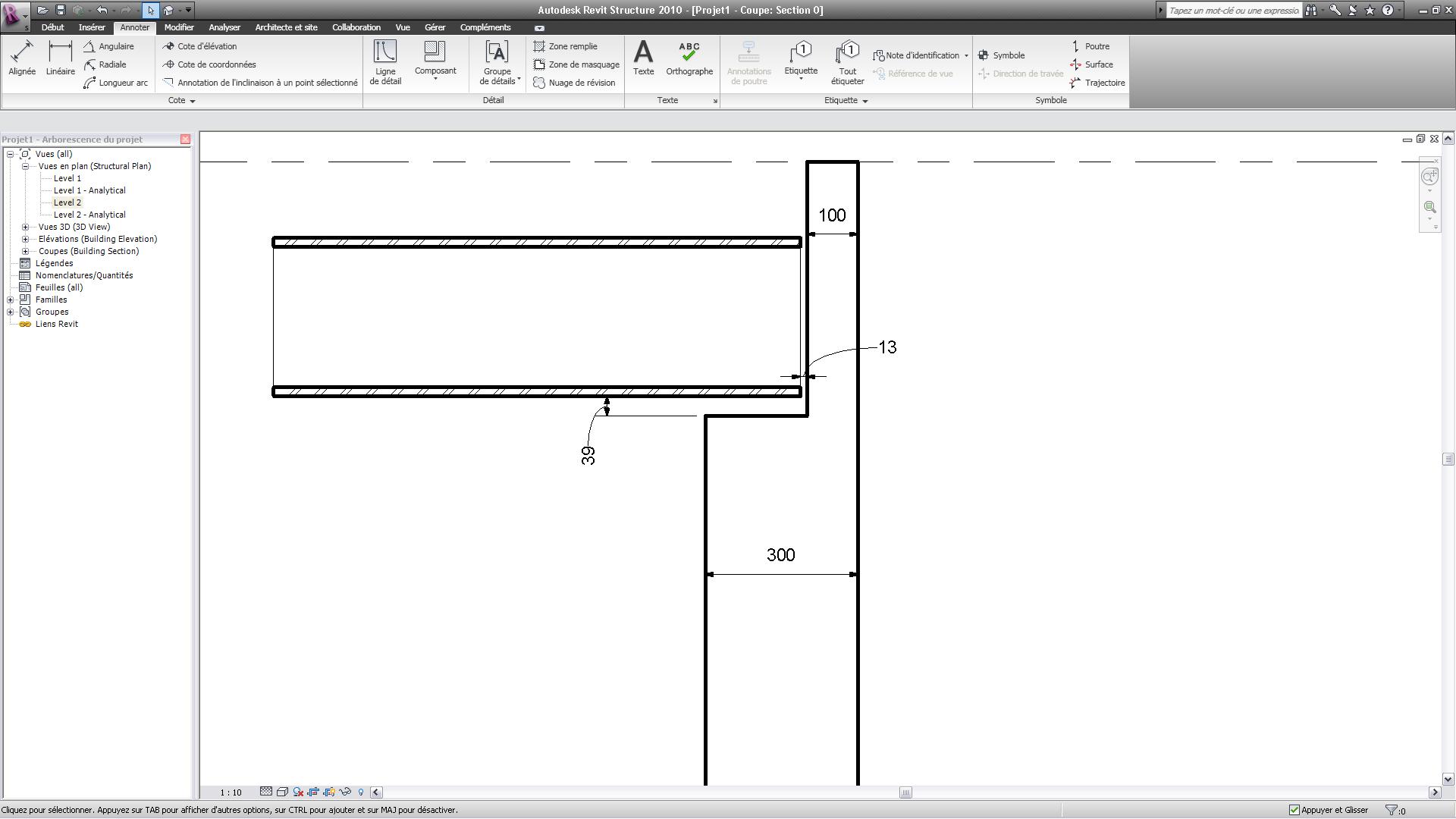

heres a solution! this is a component,a simple rectancular void form, but is totally worth having when beam are places in concrete walls for exemple.

I have trouble myself to use it, it seems to forget what is the host, so once installed in wall click "new pick" to select host again, and you should see the pocket in wall for your beam or joist.





Attached Files

This user is offline



Wed, Dec 22, 2010 at 9:27:48 AM | Beam and joist pockets

#5

wrartes


active

Joined: Tue, Dec 13, 2005
1 Posts
No Rating


Hi Canadian Lizzard,



Your family work perfect, i just don't know how to get the representation we required on plan. please see attached image.



I already did some attemps with masking redion od nested components and nothing.



Attached Images


This user is offline
