Forums >> Revit Building >> Technical Support >> Wall infills for plans (presentation purposes)
|
|
active
Joined: Tue, Aug 25, 2009
4 Posts No Rating |
I am new user just begining to dig into Revit architecture 2009. The company I work for primarily does high end residential design. and often the floor plans have large 'voids' which we would like to infill so that walls appear 'solid'. Is it possible to infill wall voids on plan for presentation purposes? Thank you
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
If you set the view detail level to course the walls will have solid fill. The appearance of the fill can be controlled in the wall properties with the 'Course scale fill color'.
|
This user is offline |
View Website
|
|
active
Joined: Tue, Aug 25, 2009
4 Posts No Rating |

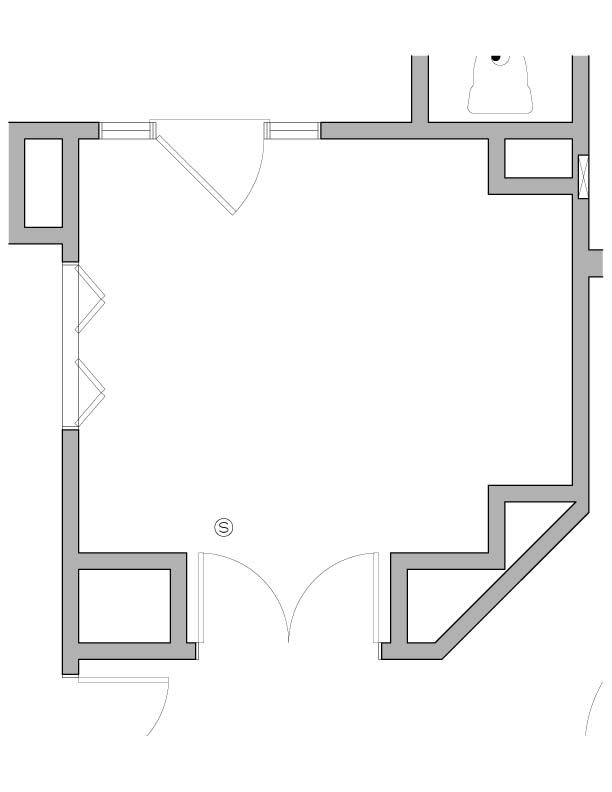

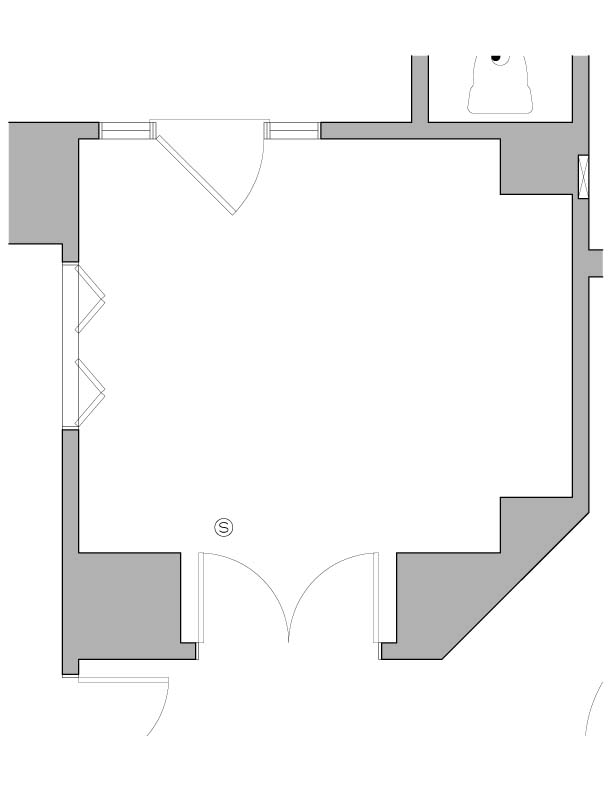

Tim 123..thanks for your response, I understand the coarse display for wall hatch/poche in general... Attached are jpegs of my problem area...as yuo can see we often end up witj irregualr walls and prefer to 'infill' the voids. Hope that makes sense
|
This user is offline |
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Well, those voids are not walls so obviously that can't work. You will have to add filled regions.
|
This user is offline |
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
Or create an in-place wall family and extrude it to the height of the wall. All the voids can be filled with one extrusion, and if you use the join tool to join it to the walls it should look like one mass. Your sections should also then display correctly.
|
This user is offline |
View Website
|
|
site moderator|||
Joined: Tue, May 16, 2006
13079 Posts
|
Why mess with the extrusion - this is a view specific problem? A simple filled region - same as the wall and covering the wall line using invisible lines as the boundry.
|
This user is offline |
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
Yes, well, whichever is easier - if it's only for this view a filled region will work fine. However, its just as easy to create the extrusion to fill the gaps and I would think that this is how it actually is. If a section is required the voids will be sorted.
|
This user is offline |
View Website
|
|
|
