Forums >> Revit Building >> Technical Support >> Pitched, angled & tilted roof

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Jul 17, 2009 at 7:14:30 PM | Pitched, angled & tilted roof

#1

jonelizares


active

Joined: Tue, Jun 17, 2008
38 Posts
No Rating

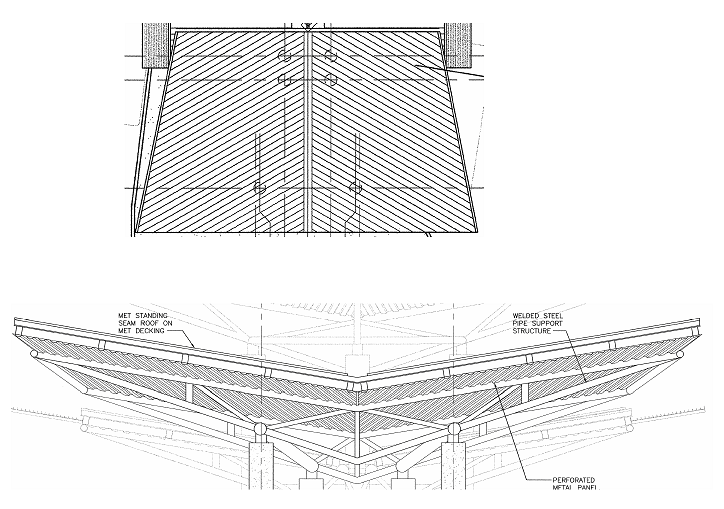

See the attached image for reference. plan and elation. not to scale.

How would i go about making this type of roof. its pitched, the panels that make up the standing seam metal roofing are angled and the roof is tilted off a horizontal plane. i also would like to be able to determine true length of the standing seam panels.



Edited on: Fri, Jul 17, 2009 at 2:18:17 PM

Attached Images


This user is offline



Fri, Jul 17, 2009 at 7:58:36 PM | Pitched, angled & tilted roof

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes

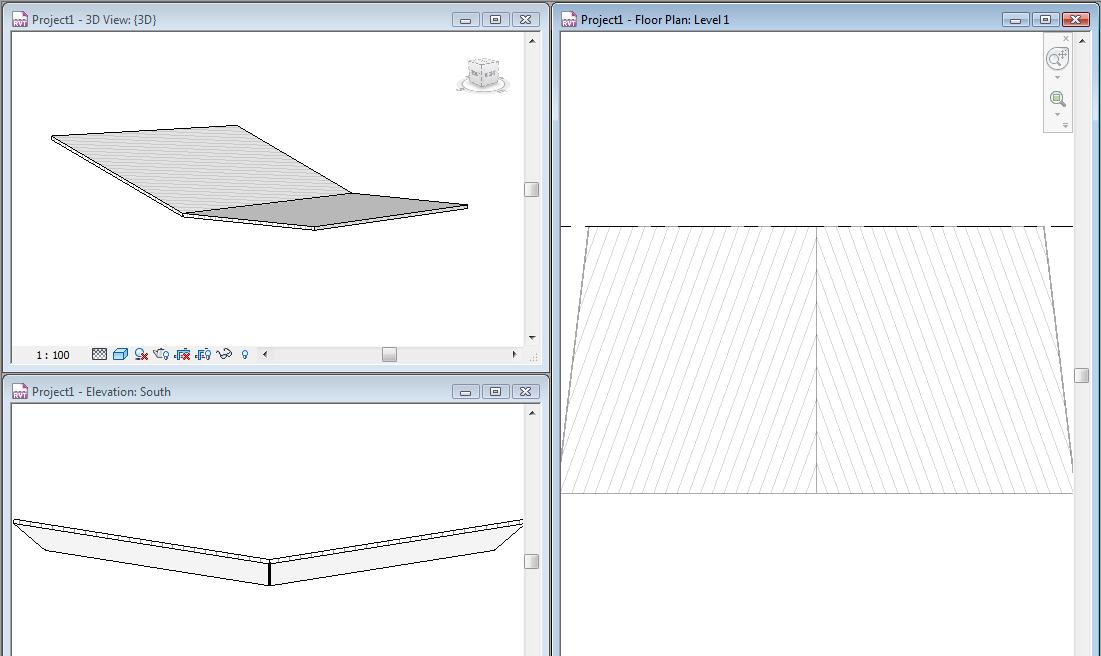

You can create it as an in-place family using a solid blend.

Attached Images


This user is offline

View Website

Fri, Jul 17, 2009 at 10:52:01 PM | Pitched, angled & tilted roof

#3

jonelizares


active

Joined: Tue, Jun 17, 2008
38 Posts
No Rating


its funny casue right after i posted i thought of the blend. thanks.


This user is offline



Sat, Jul 18, 2009 at 1:59:06 PM | Pitched, angled & tilted roof

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 196 Votes


I think i create that by a "Mass" then apply "roof by face" twice, in this way you can use the "Sloped glazing" to create in the top the Roof and in down (the other roof) those "mullions" you have in the image..... in this way, if you create a Section in the roof, you have automatically all the elements you need in the section view.

Just my opinion....






-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Sep 26, 2014 at 7:26:26 AM | Pitched, angled & tilted roof

#5

EssG


active

Joined: Thu, Sep 18, 2008
39 Posts
No Rating


Hi

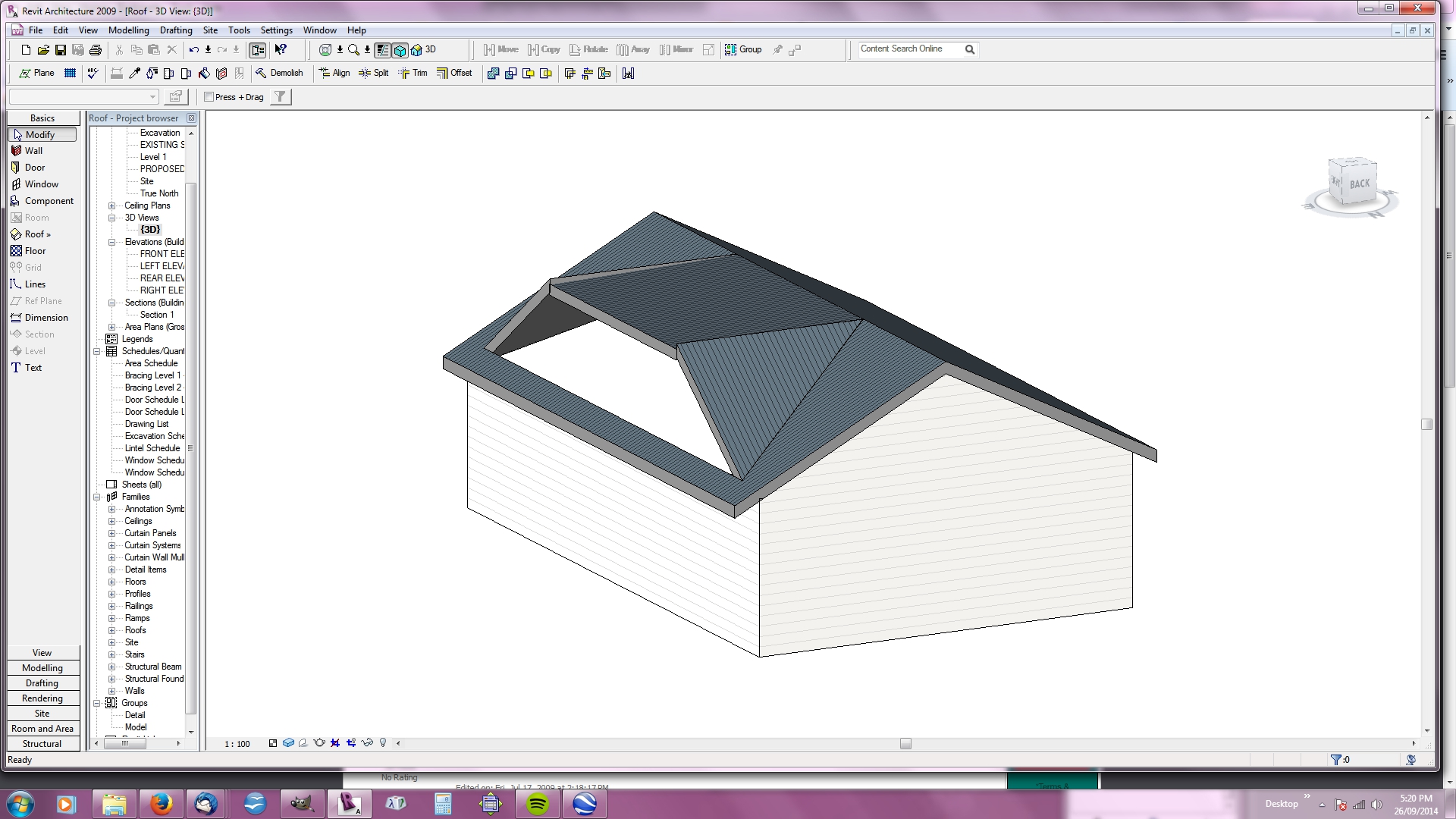

Just found this old post and was wondering if anyone has a tip for me how to get this roof to work.

The flat section has a 2Deg pitch down and I cant get the side pieces of roof to line with that 2deg as they stay level with the main roofs Ridge

Any help greatly appreceated



Cheers

EssG







Attached Images


This user is offline
