Forums >> Revit Building >> Technical Support >> Custom Wall Creation Question

Search this ThreadSearch this Thread | Page 1 of 1 |

Mon, Jun 22, 2009 at 2:33:34 PM | Custom Wall Creation Question

#1

Xaquin


active

Joined: Wed, Jun 13, 2007
66 Posts
No Rating


This may be impossible.  I don't know.

I'm trying to make a Corrugated Metal wall similar to:

http://mayang.com/textures/Metal/images/Corrugated%20Metal/corrugated_metal_warehouse_side_9181157.JPG



It's for a warehouse and while three of the sides are Corrugated Metal Siding on CMU (I made a mass for the Metal in those cases), one side is 100% corrugated metal siding from finished floor to underside of roof deck.  The problem I'm having is that I can't add a door into it or attach it to the underside of the roof deck without it being an actual wall.



I hope this post makes sense, but please ask away if I didn't put this right.  Or, even better, if anyone knows what I can do, I'd appreciate it a ton.



Thanks


This user is offline

View Website

Mon, Jun 22, 2009 at 2:36:10 PM | Custom Wall Creation Question

#2

Xaquin


active

Joined: Wed, Jun 13, 2007
66 Posts
No Rating


I'm using Revit 2009.  I have 2010, but really didn't like it after playing with it for a few days =/

This user is offline

View Website

Mon, Jun 22, 2009 at 2:45:58 PM | Custom Wall Creation Question

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


I would use a curtain wall for this.  You can then insert curtain wall doors into the wall.  You can also create a custom curtain wall panel with the corrugated profile for the other panels.

If you had created the wall as a custom family in the wall category rather than a mass you would have been able to put a door in.


This user is offline

View Website

Mon, Jun 22, 2009 at 3:00:10 PM | Custom Wall Creation Question

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Me too, if it was in roofs or slabs it's different but in walls i think i use the Curtain wall panel to do this, instead a create-in-place....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jun 22, 2009 at 3:02:35 PM | Custom Wall Creation Question

#5

Xaquin


active

Joined: Wed, Jun 13, 2007
66 Posts
No Rating


ahh I hadn't though of doing this as a curtain wall.  Thanks all =)

This user is offline

View Website

Fri, Jul 24, 2009 at 4:10:17 PM | Custom Wall Creation Question

#6

Xaquin


active

Joined: Wed, Jun 13, 2007
66 Posts
No Rating


I can't get this to work at all.  Everytime I try to make it into a curtainwall, the pattern stretches funny.  It will look perfect for one segment and then be completely flat until the final segment.  The only way to make it look right, that I can find, is to make the curtain wall the exact size as the original panel.

I'm using 2010 full time now =/

any advice would be greatly appreciated.


This user is offline

View Website

Fri, Jul 24, 2009 at 7:39:24 PM | Custom Wall Creation Question

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

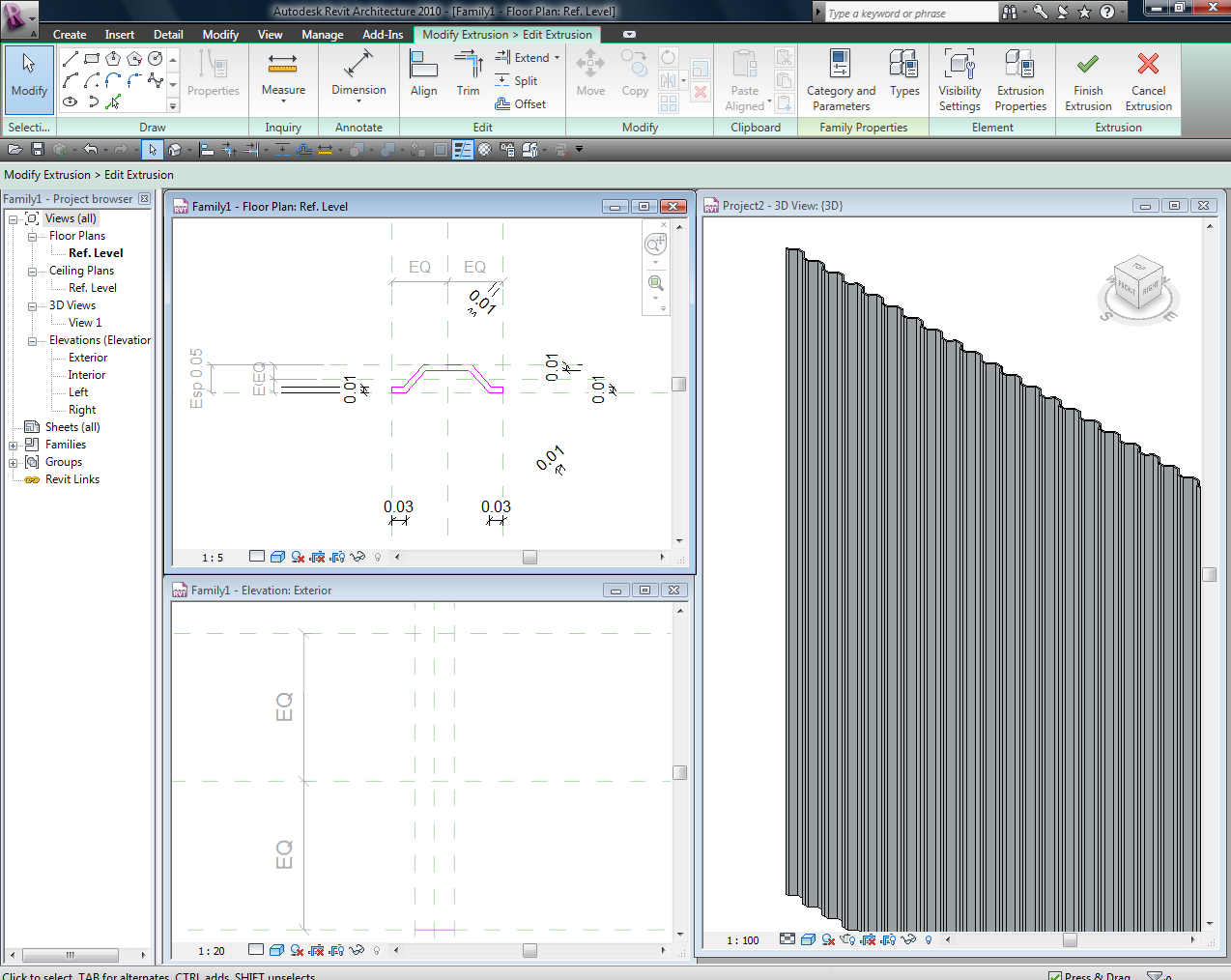

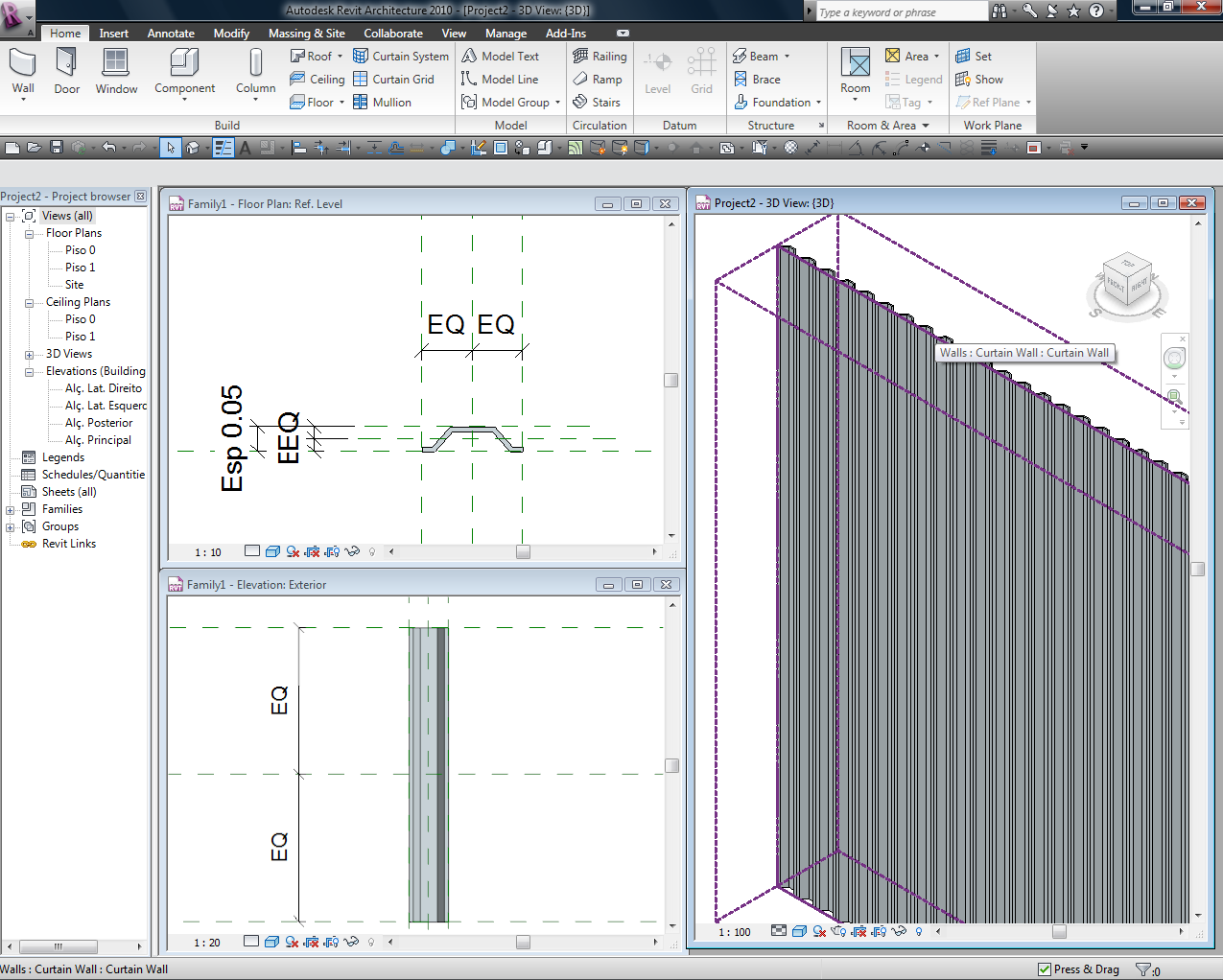

Attach the lines to the ref. planes and constrain the model, it will work...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Jul 24, 2009 at 7:41:46 PM | Custom Wall Creation Question

#8

Xaquin


active

Joined: Wed, Jun 13, 2007
66 Posts
No Rating


that looks good

I'll give it another try.

thank you sir =)


This user is offline
