Forums >> Revit Building >> Technical Support >> Turning off 3d door in floor plan
|
|
|
active
Joined: Fri, Oct 24, 2008
49 Posts
No Rating |
I know this might be a simple question, but how do you turn off the model door in the floor plan so that only the 2d swing is showing?
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |
You will need to modify your door family and give the door panel a visibility parameter. Then change the model door swing lines to be visible in 3D.
|
This user is offline |
View Website
|
|
|
active
Joined: Fri, Oct 24, 2008
49 Posts
No Rating |
I'll try that. but if I open up a predefined door, where is the parameter for it? I don't see it. I see the Visibility graphics, and I go to door but all the layers are on.
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|

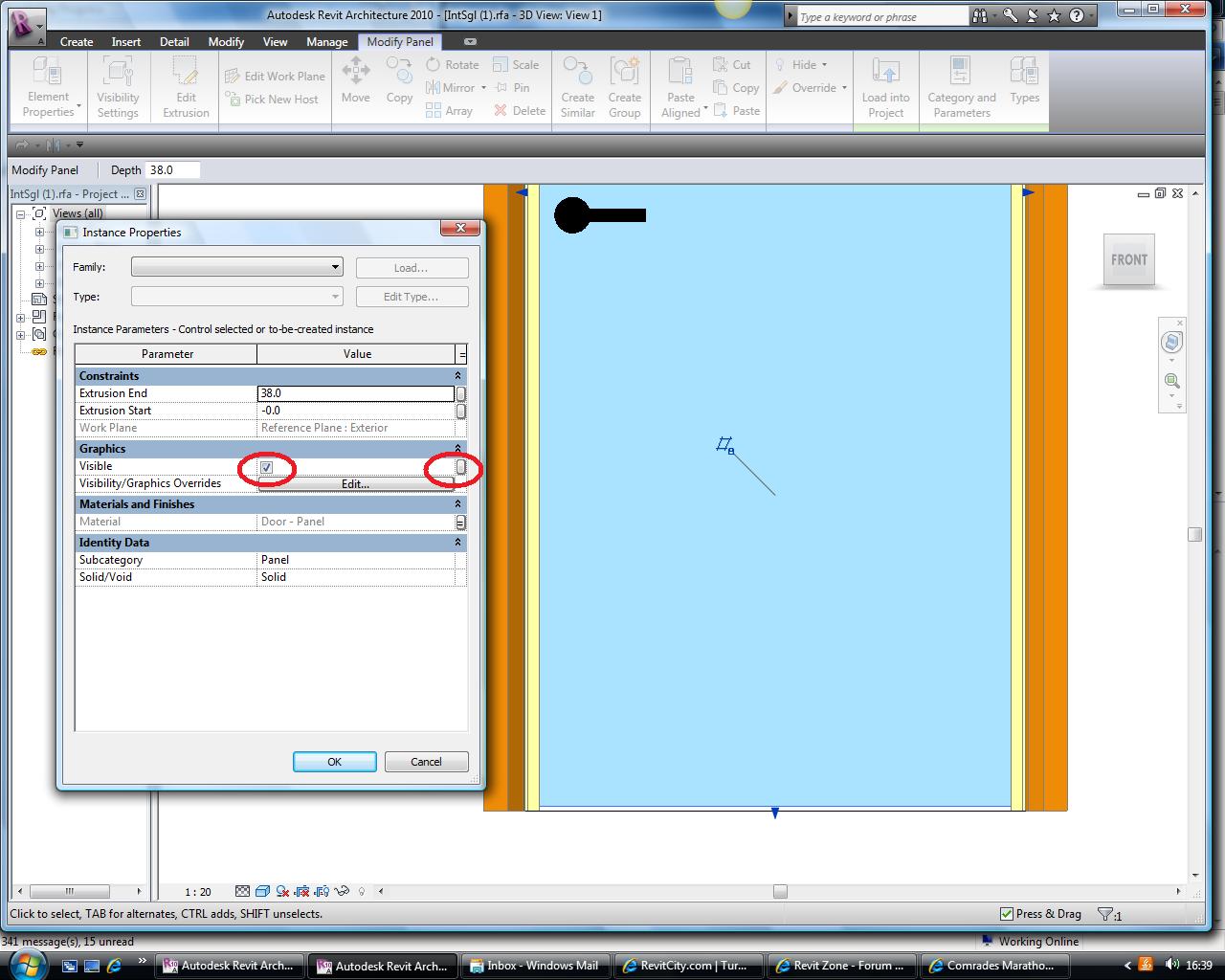

Click on the door and the edit family button. Probably save it as a new family. Click on the door panel properties and you check wether it is visible or not. You can switch this off, or add a parameter to switch it on and off by clicking the small button on the right of the field row. The door swing is a symbolic line so will only show in the plan. Redraw over it with a model line (If there are two, one is for course and the other for fine). Click on Load into project.
|
This user is offline |
View Website
|
|
|
active
Joined: Fri, Oct 24, 2008
49 Posts
No Rating |
got it! Thanks.
|
This user is offline |
|
|
|
