Forums >> Revit Building >> Technical Support >> Drawing on a photo?

Search this ThreadSearch this Thread | Page 1 of 1 |

Thu, May 14, 2009 at 4:04:55 PM | Drawing on a photo?

#1

danpooler


active

Joined: Wed, Sep 10, 2008
24 Posts
No Rating


Does anyone know if its possible in Revit 2010 to draw on a photo? Or make an aerial photo the base of a drawing?  I'd like to draw an entire site within revit using the aerial as the background. I do this in 3dmax with both aerials and oblique photos and would love to be able to do it in Revit architecture 2010...



Suggestions?


This user is offline

View Website

Thu, May 14, 2009 at 6:00:16 PM | Drawing on a photo?

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


You can insert an image into any 2d view in revit.  Import the image into a site plan or floor plan and scale it to the correct size.

This user is offline

View Website

Thu, May 14, 2009 at 6:09:07 PM | Drawing on a photo?

#3

danpooler


active

Joined: Wed, Sep 10, 2008
24 Posts
No Rating


But still not in 3d? 3dmax and AutoCad can do it why not Revit?? grrrr


This user is offline

View Website

Thu, May 14, 2009 at 6:09:10 PM | Drawing on a photo?

#4

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

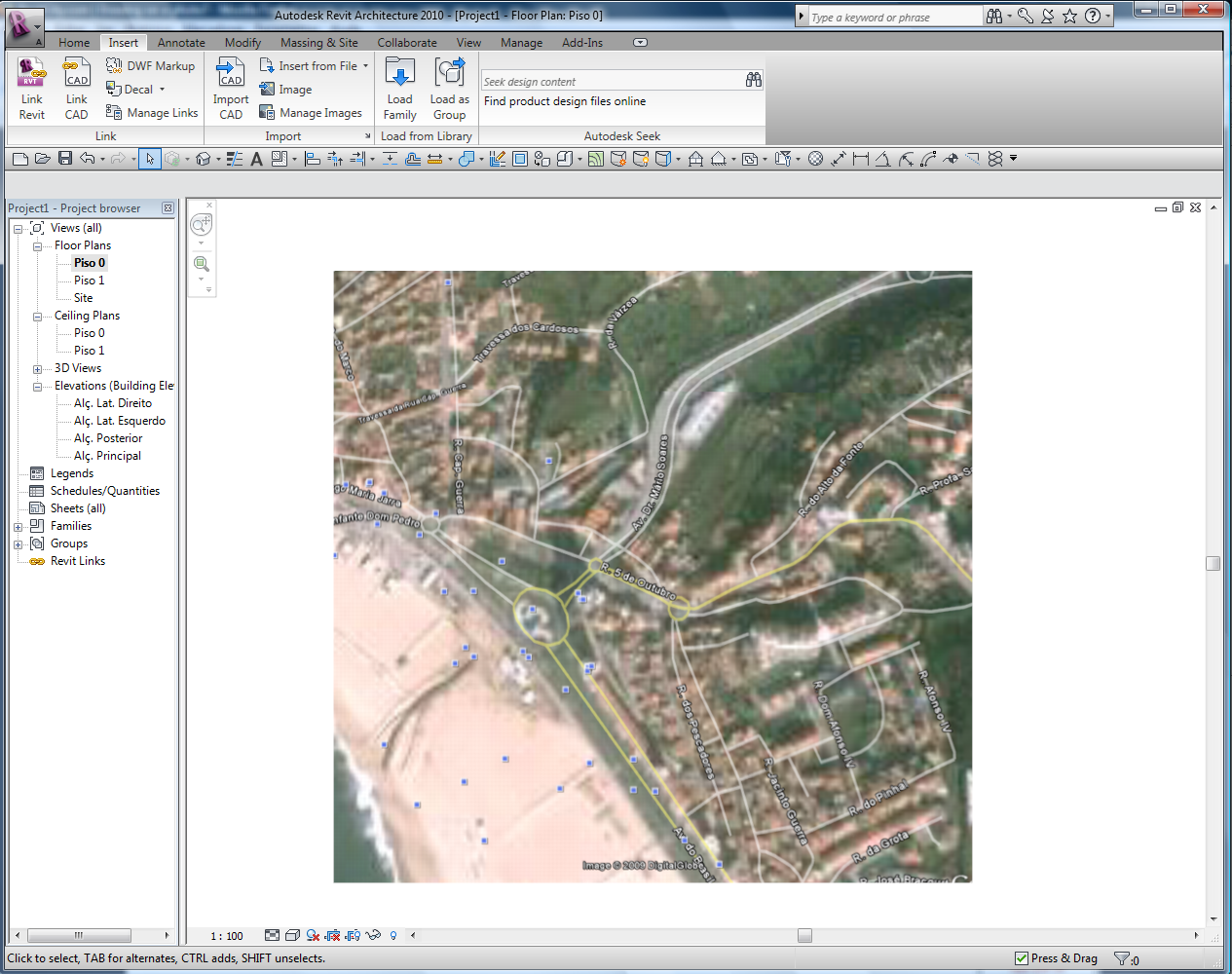

in plan view???

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, May 14, 2009 at 6:20:24 PM | Drawing on a photo?

#5

danpooler


active

Joined: Wed, Sep 10, 2008
24 Posts
No Rating


No in 3d view... just like google earth lets you move around in 3d it would be nice if revit allowed you to do this.. I haven't been able to spin the aerial photo around in the 3d view... I can in autocad and in 3dmax though.. surprising...




This user is offline

View Website

Thu, May 14, 2009 at 6:23:13 PM | Drawing on a photo?

#6

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


If you're going to render it you can place a decal on a large floor.

This user is offline

View Website

Thu, May 14, 2009 at 6:36:19 PM | Drawing on a photo?

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

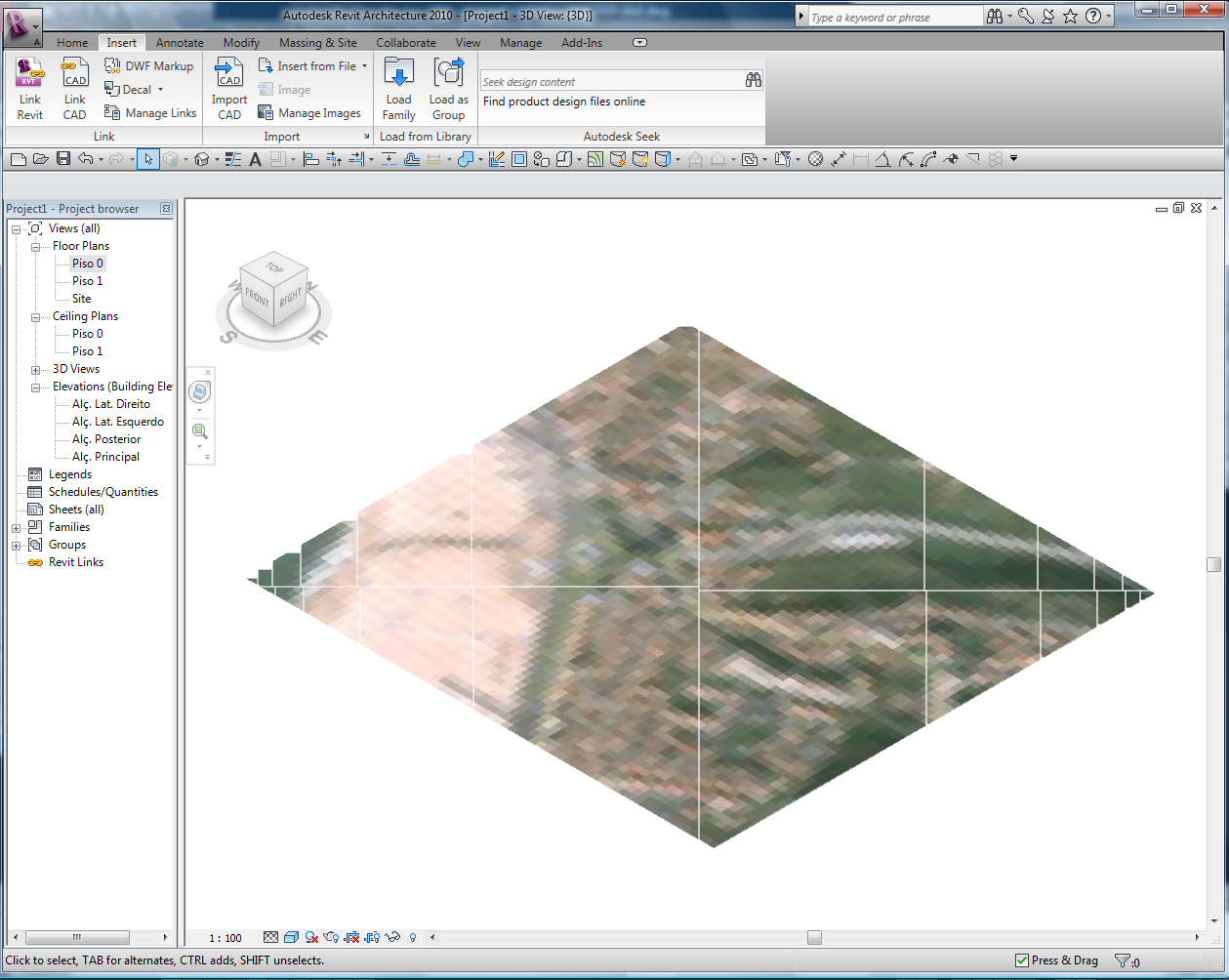

in 3D view, but appears those white lines....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, May 14, 2009 at 6:49:54 PM | Drawing on a photo?

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


But the problem is it loose resolution if the image is to large like you can see in the first image i post, and revit dont allow to have more than 2 miles...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Thu, May 14, 2009 at 6:55:21 PM | Drawing on a photo?

#9

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Typhoon - what are the white lines?  If they are contour lines you can switch them off.

This user is offline

View Website

Thu, May 14, 2009 at 7:00:26 PM | Drawing on a photo?

#10

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

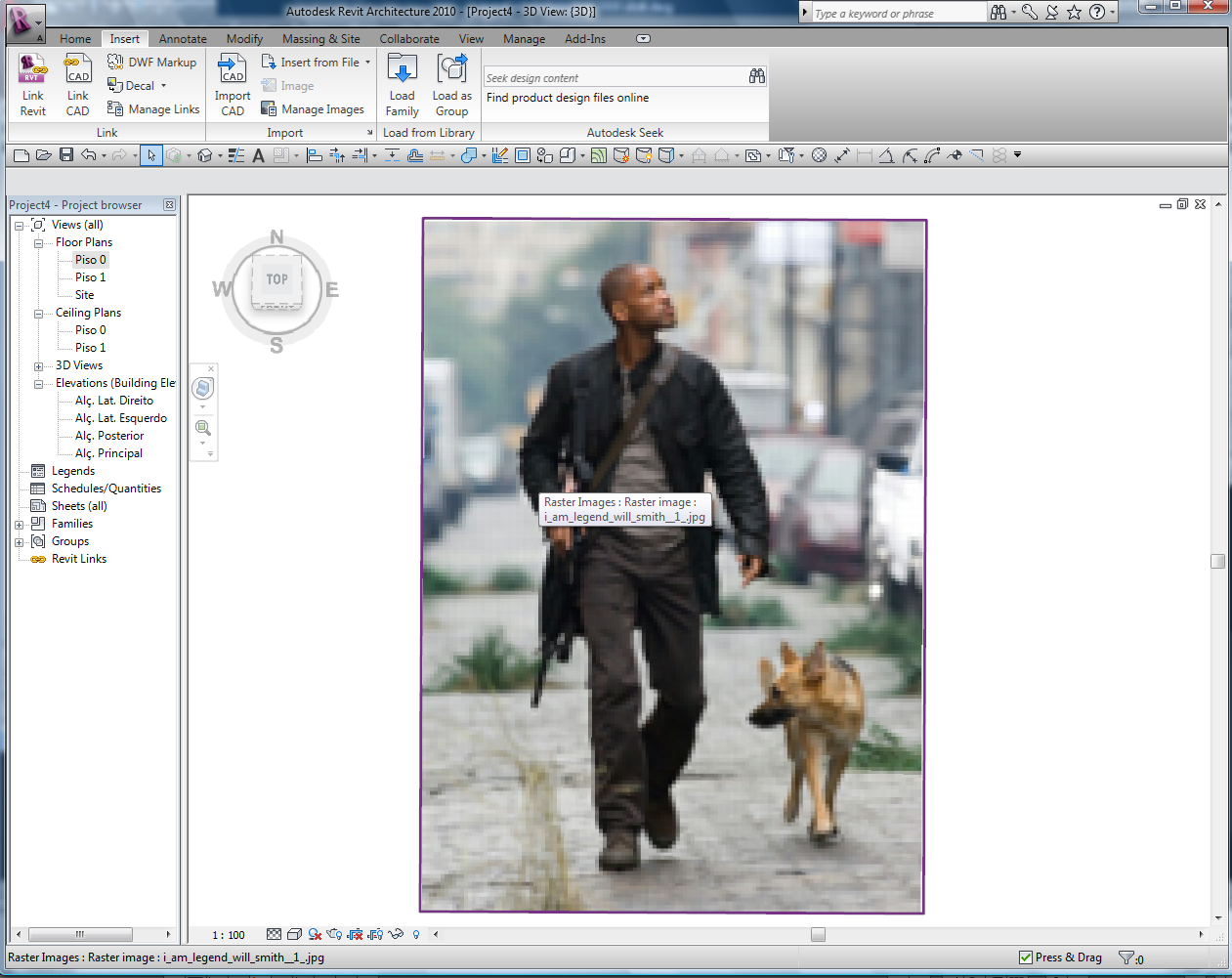

No Tim, it's only an image from google earth, the Will Smith also, just an PNG file....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline
