Forums >> Revit Building >> Technical Support >> Standing Seam Roof

Search this ThreadSearch this Thread | Page 1 of 2 | 1 | 2 Next >>

Mon, May 11, 2009 at 2:13:26 PM | Standing Seam Roof

#1

GRAKris


active

Joined: Thu, Jan 25, 2007
2 Posts
No Rating


I need to render a standing seam roof in 2009.  What is the easiest way I can render this roof?

This user is offline



Mon, May 11, 2009 at 2:22:46 PM | Standing Seam Roof

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 388 Votes


If you can find an appropriate material that will give you the ribs - use that.  Otherwise, you may have to model the ribs.

This user is offline



Mon, May 11, 2009 at 5:02:20 PM | Standing Seam Roof

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


There is a bump map in the library, see attached.  This works well for most situations, but for views that are close up I tend to model the ribs.  This can be done quite easily using curtain systems, or sloped glazing for a roof.

Attached Images


This user is offline

View Website

Tue, May 12, 2009 at 8:17:57 AM | Standing Seam Roof

#4

GRAKris


active

Joined: Thu, Jan 25, 2007
2 Posts
No Rating


Thanks for you help.  I actually went a different route.  I just copied the roof, place it 1" higher than my original roof and sized it to a seam width and placed it every 8" or so.  It worked great and modeled great.




This user is offline



Tue, May 12, 2009 at 9:28:09 AM | Standing Seam Roof

#5

dhollyman1


active

Joined: Sat, Jan 26, 2008
14 Posts
No Rating


  1. Put the basic initial roof on the house.. using whatever construction desired (2x12 or trusses with sheathing)
  2. copy that roof and turn it into "Glass Panel"
  3. Then lay the "Glass Panel" onto the roof that you copied.
  4. You can go into the glass panel and change materials so that it matched your desire
  5. Also, you can change the spacing/Size of the Glass Panels
  6. Tada! Standing Seam Metal Roof...

Good Luck! This works really well


This user is offline



Fri, Jul 17, 2009 at 8:08:49 AM | Standing Seam Roof

#6

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes


I have a semi circle canopy that needs to have a standng seam.  I used the extrustion method to make the roof.  How do I get the ribs to follow the curve of the roof instead of the direction of the extrusion?  Using RA2009.  I used the method of creating 2 roofs, one over the other with the top one being the sloped glazing, for my main hip roof.

This user is offline

View Website

Fri, Jul 17, 2009 at 8:21:18 AM | Standing Seam Roof

#7

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Images of your roof please...




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Jul 17, 2009 at 8:29:50 AM | Standing Seam Roof

#8

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes




Attached Images


This user is offline

View Website

Fri, Jul 17, 2009 at 9:06:11 AM | Standing Seam Roof

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Yeah use the "Sloped Glazing" system, i think it's the best option...





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Fri, Jul 17, 2009 at 9:52:36 AM | Standing Seam Roof

#10

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes


how do i get the "ribs" to follow the curve and not the extrusion?

Attached Images


This user is offline

View Website

Fri, Jul 17, 2009 at 9:55:17 AM | Standing Seam Roof

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

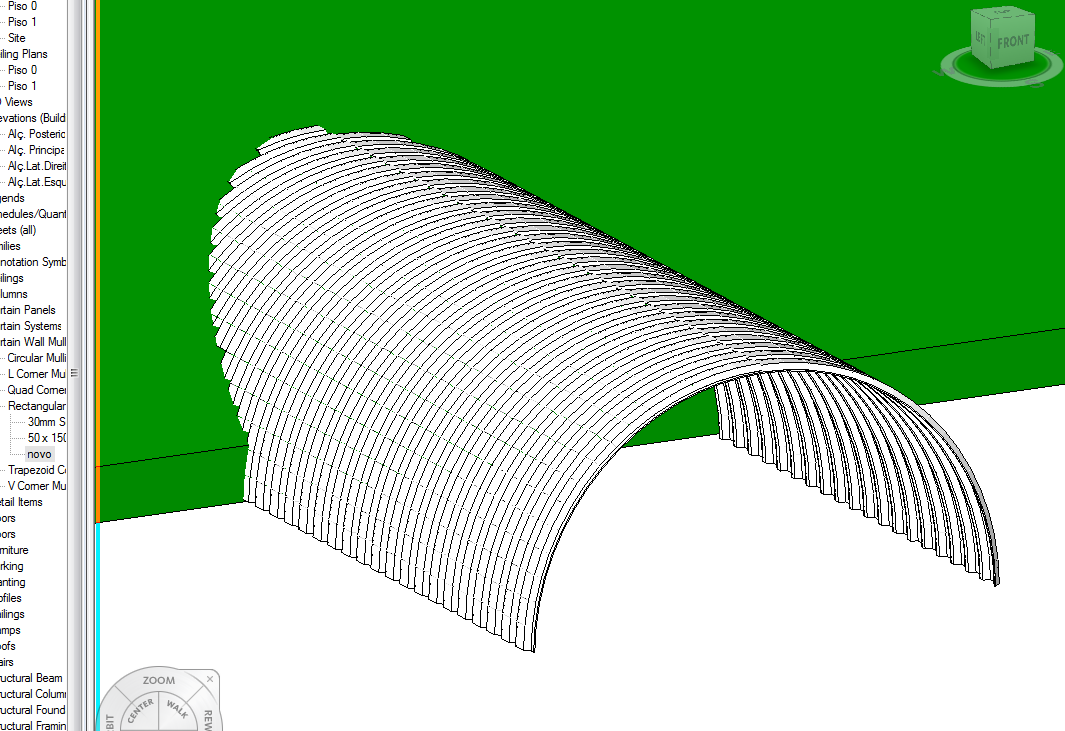

??? like my image?? do it with the "Sloped Glazing" system....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Mon, Jul 20, 2009 at 6:17:04 AM | Standing Seam Roof

#12

JHanby


active

Joined: Thu, May 25, 2006
177 Posts
3.5 Stars: 3 Votes


THE ROOF IS SET TO "SLOPE GLAZING"!!!!!!!!!!!!!!!


This user is offline

View Website

Mon, Jul 20, 2009 at 7:02:35 AM | Standing Seam Roof

#13

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


i think you have to add mullions now to simulate the standing metal seam?

hth


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit

This user is offline



Mon, Jul 20, 2009 at 8:19:49 AM | Standing Seam Roof

#14

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


CREATE A NEW "PROFILE FAMILY" WITH THE SHAPE YOU WANT, LOAD INTO THE PROJECT, GO TO THE PROJECT BROWSER/FAMILIES AND EXPAND THE CURTAIN WALL MULLIONS, IN THE RECTANGULAR MULLION EXPAND AND DUPLICATE ONE OF THEM, CHANGE THE NAME AND ENTER IN THE PROPERTIES, CHANGE THE "PROFILE" BY THE NEW YOU JUST CREATE, PICK IN THE ROOF (SLOPED GLAZING) AND GO TO THE PROPERTIES, EDIT/NEW AND CHANGE THE LAYOUT BY THE NEW MULLION YOU JUST CREATE BEFORE, CHANGE THE PROPERTIES YOU NEED (FIXED DISTANCE, OFFSET....).



DONE....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Apr 21, 2020 at 8:58:09 PM | Standing Seam Roof

#15

dingohot


active
dingohot Avatar

Joined: Mon, Mar 15, 2010
199 Posts
3.5 Stars: 5 Votes

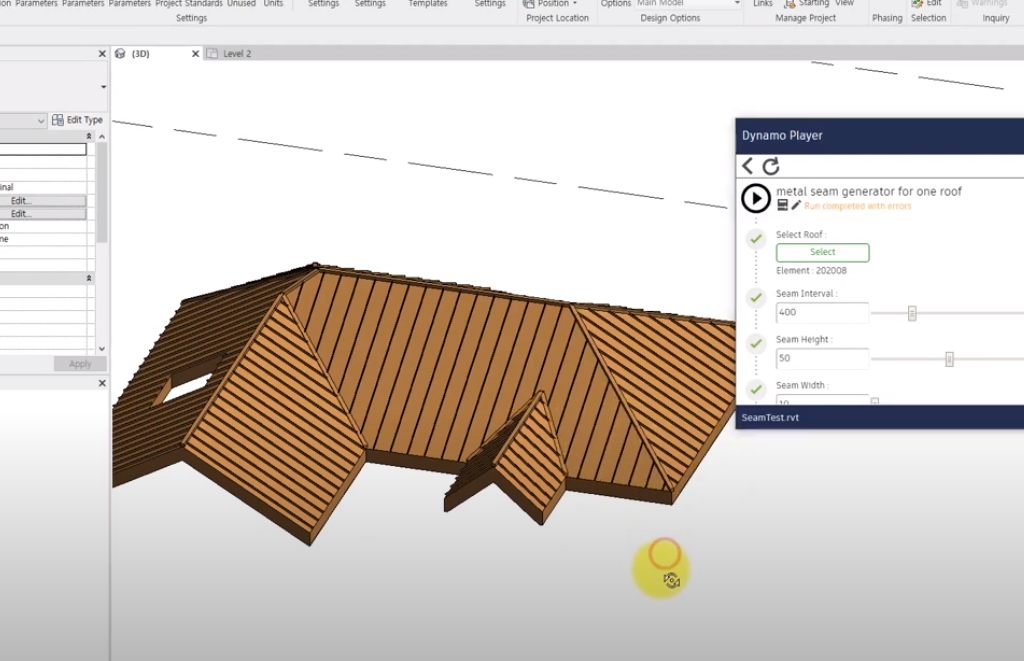

I just created a Dynamo Script which Generate standing seams instantly.

watch my vid here

https://youtu.be/Jj8yrpywut4





Edited on: Tue, Apr 21, 2020 at 9:02:08 PM

Attached Images


-----------------------------------

want more?

You can get more tips at Enjoy Revit

This user is offline

View Website
