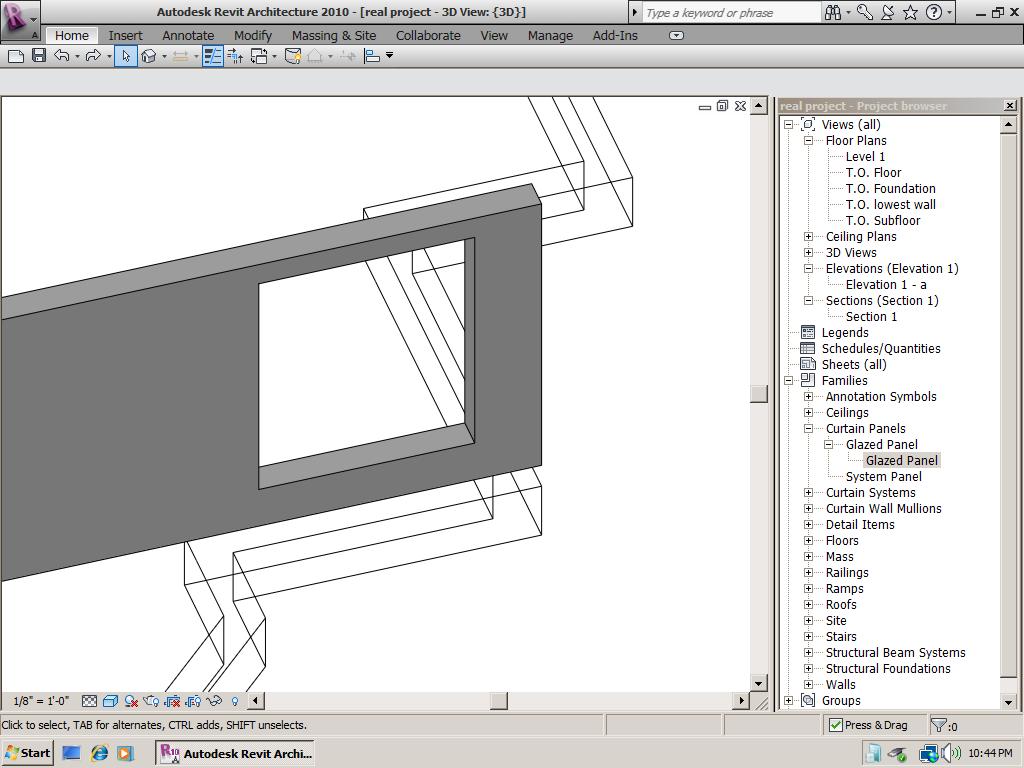

2010 the curse.. take a look at my attachment pic.. curtain panel system in wall hole not like RAC 2009- anybody know how to do it?
|
This user is offline |
|
 |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
 |
Did you create the Curtain wall "INSIDE" the wall?? in the properties of that curtain wall, did you turn ON the "Embebed wall"??? or you create an "Opening" and now you want to put the curtain wall panel??? be clear....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
Joined: Sun, Jan 4, 2009
356 Posts
|
thanks typhoon - sorry about not being more clear.. that gray thing is a wall.. it is just a piece of wall nine feet high.. it is ten inches thick.. that square hole is the result of clicking on that wall where there was no square hole and then clicking "modify wall> edit profile".. in elevation view the gray shaded wall disapears and only the magenta colored lines appear as an outline of that wall.. then in sketch mode i draw a square inside of that wall profile and click finish and then "bingo" there is a square hole in the wall.. okay- now i want to put a curtain wall system in that square hole.. i want glass and mullions.. in 2009 i would draw model lines in that hole and select them as the boundary for cutain wall panels.. please look at my screenshot and if you know- please tell me exactly what to click on to start a curtain wall in that hole.. many thanks..
|
This user is offline |
|
|
|
active
Joined: Fri, Sep 7, 2007
738 Posts
 |

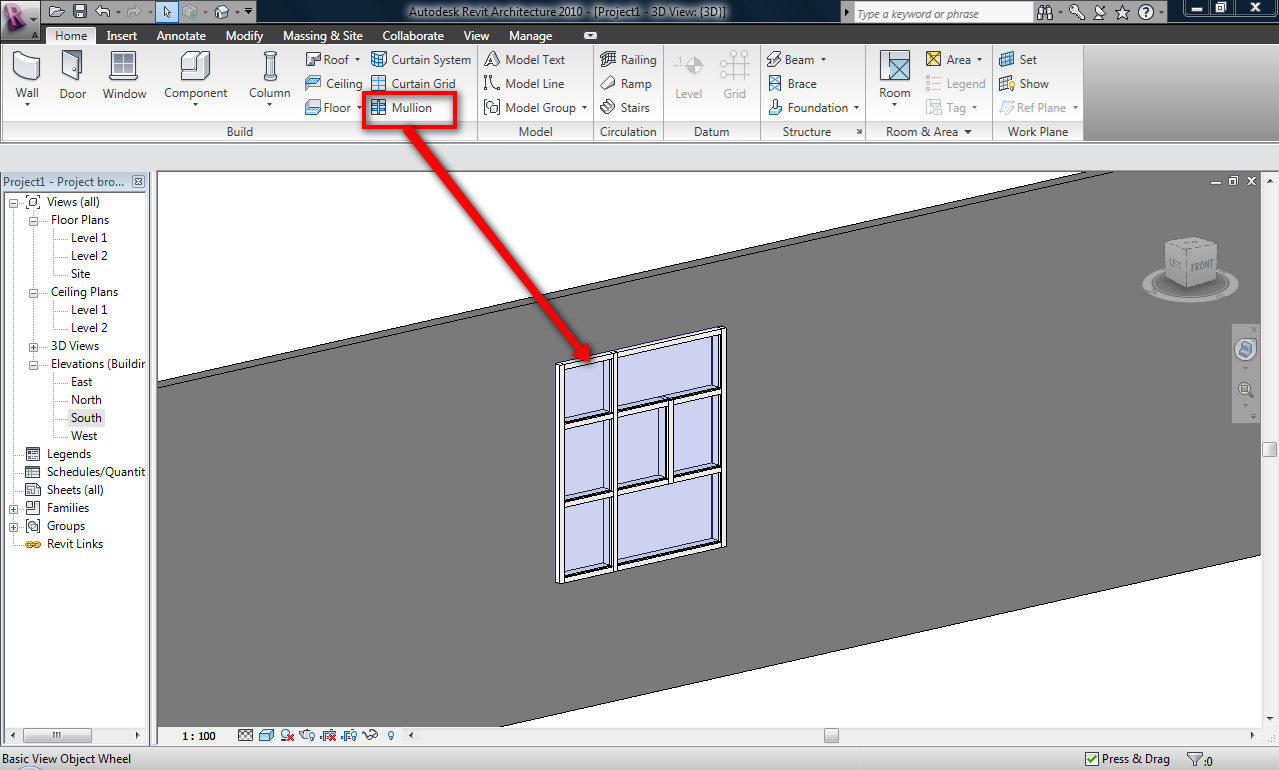

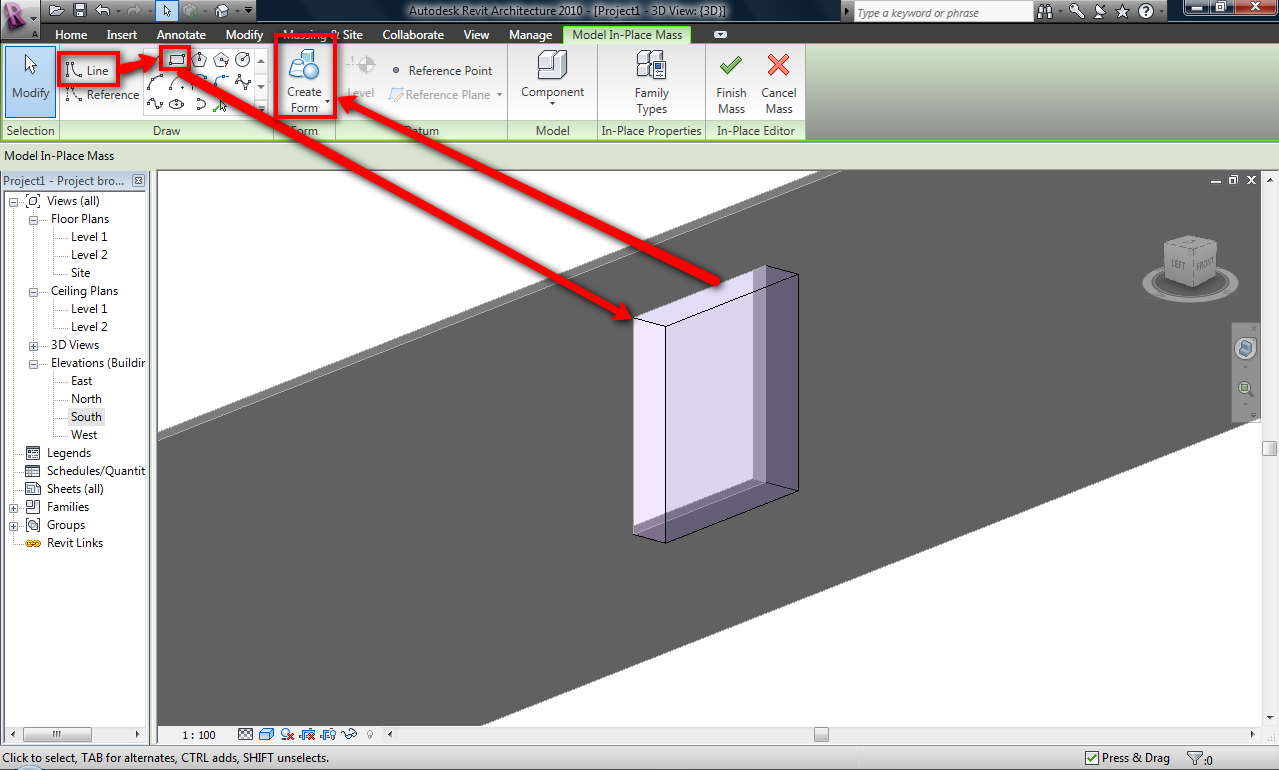

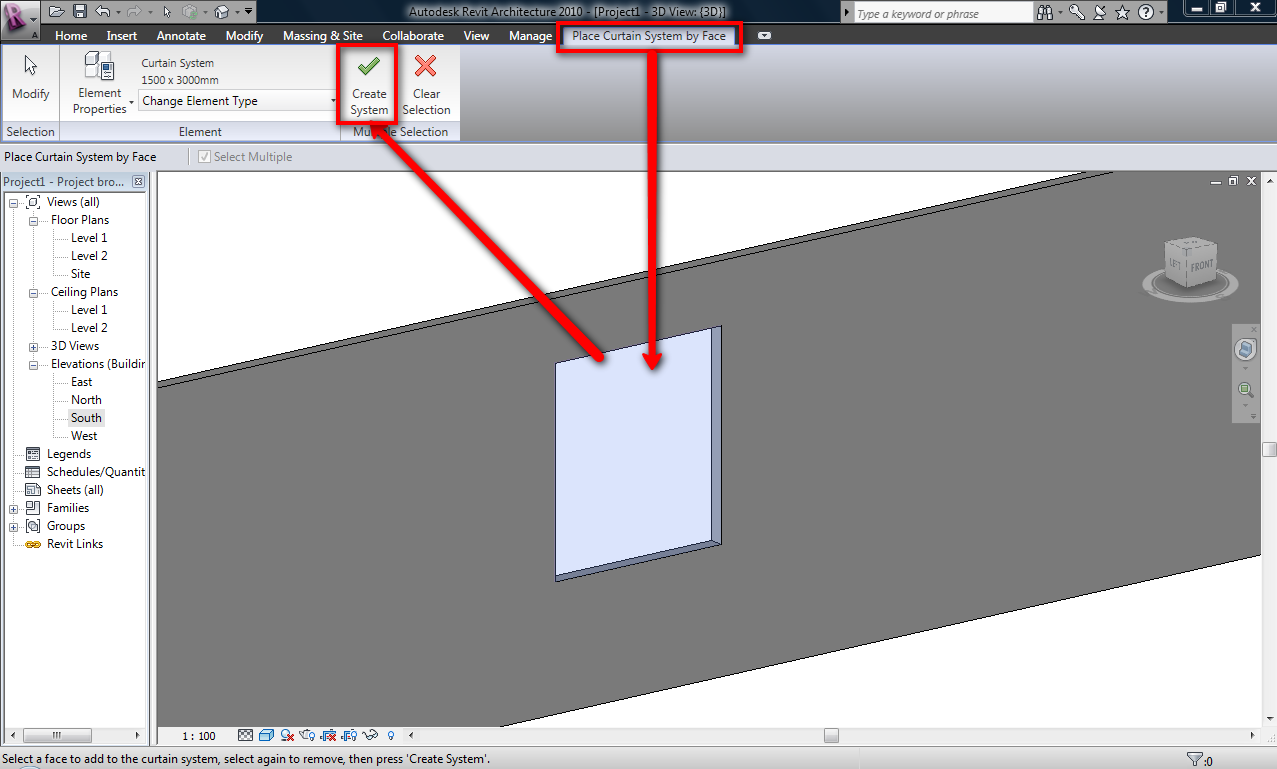

WYS1WYG, all the steps in RAC 2009 to create a curtain system in a hole of a wall are the same in RAC 2010, the difference is the "Create Form" tool. First you sketch the square and then you create the mass form (in 2010 you can "deform" a mass from a basic form as a rectangle, etc), so you can now finish your mass and create you curtain system (see attached)....
-----------------------------------
“Learning never exhausts the mind.” — Leonardo Da Vinci
|
This user is offline |
|
|
|
Joined: Sun, Jan 4, 2009
356 Posts
|
no deforming a mass in 2009 just to place a curtain panel.. the only thing i did in 2009 was choose curtain wall and then choose by model lines.. even if i just drew two parallel model lines i could pick them and the curtain panel would appear between them.. nothing like starting all over learning revit.. and guess how many of those 350,00 architects who bought revit can use it? 2 lol could you or anyone else at least tell me after looking at this screenshot what they would think would be the first four clicks they would make toward getting a curtain panel in that square hole?
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
What Typhoon is suggesting is that there is a much easier way. You don't need to make a hole in the wall for the curtain wall. Just draw the curtain wall in a plan view in the required position over the wall to be cut and ensure that embedded is checked. The curtain wall will cut its own hole. Set in the upper and lower boundaries in the properties and the hole automatically adjusts, as it will if you adjust the length.
|
This user is offline |
View Website
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
Hi WYS1WYG, see the video: http://www.megaupload.com/?d=RW7AUHOL This solve all your problems with Curtain walls .....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
Joined: Sun, Jan 4, 2009
356 Posts
|
thanks guys- now i understand curtain walls.. BTW- i love RAC 2010
|
This user is offline |
|
|
|
site moderator|||
Joined: Tue, May 22, 2007
5921 Posts
|
ME TOO....
-----------------------------------
I Hope and I Wish to LEARN more, and more, and more.... REVIT |
This user is offline |
|
|
|
