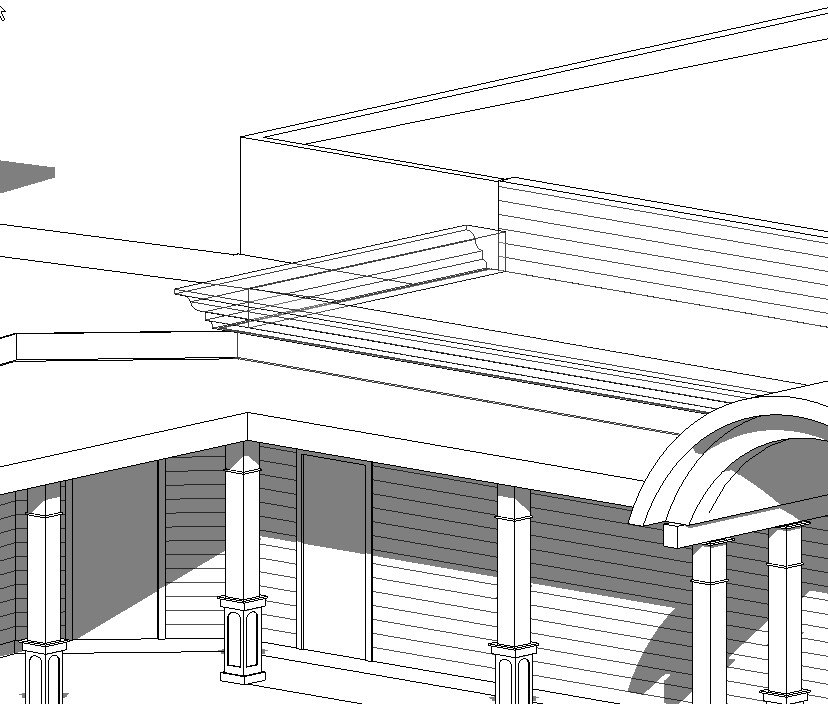

I've been attempting to use the sweep function to create a cornice around the top of a building (and other things), however the finished product ends up transparent with no shadows cast (see image). Suggestions?
|
This user is offline |
|
 |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |
Are you doing it as a mass? If so, rather create the component in a category, such as walls.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |
Hmm. I'm using the host sweep function under the modeling tab. Is there a way to do it as a wall?
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
If you go into the sweep properties you can set the material there.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |
I had to use a Mass to get the curved roof you see in the image, which was doing the same thing.
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
I would have created the curved roof as a roof and not a mass. You can model it in the same way that you did the mass. Create an in-place component and give it the roof category.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |

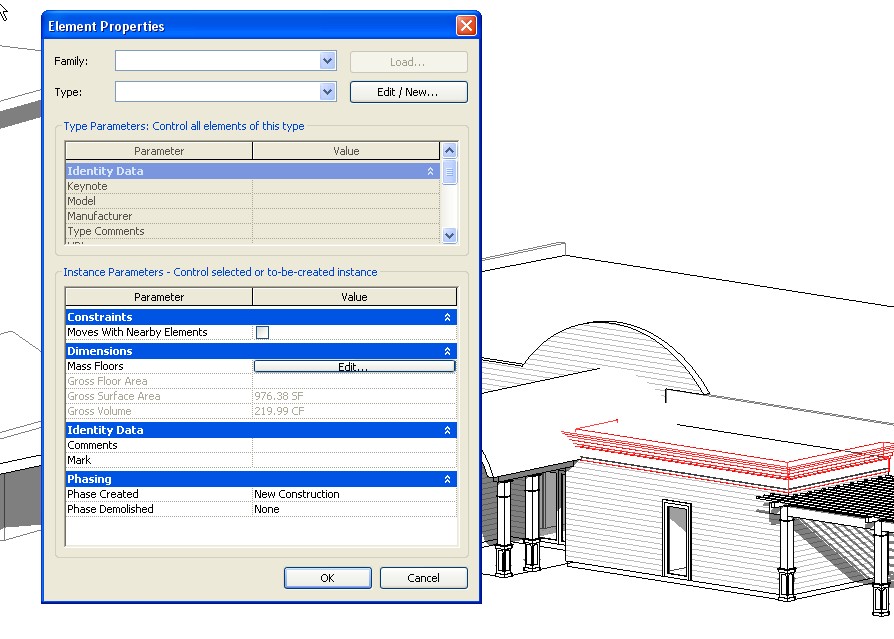

If I right click and go into element properties, I get this without the ability to change materials.
|
This user is offline |
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |
Yeah, I should have done that. Maybe I'll rebuild teh curved roof.
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
Go to the element properties and click on 'edit type'.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |

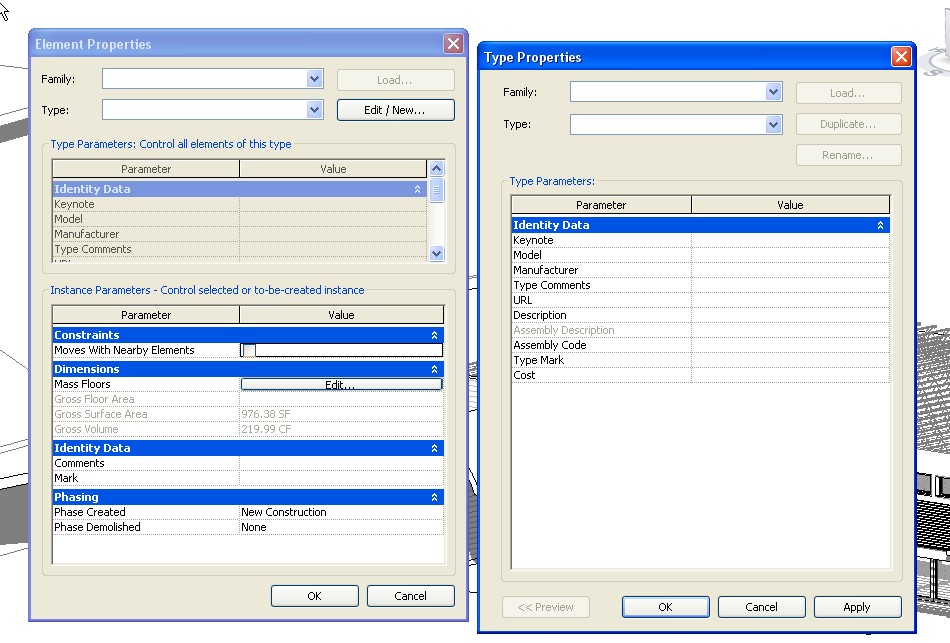

these are the options - I don't see 'edit type'
|
This user is offline |
|
|
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |
Wait - I get whqat you're saying - this is the dialogue that shows up...
|
This user is offline |
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |
Wait - I get whqat you're saying - this is the dialogue that shows up...
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
OK, this confirms that it was created as a mass and not a hosted sweep. Do it as a wall hosted sweep, or as an in-place family in the wall category. You can change the appearance of the default mass material in the material settings, but I would not use a mass for this.
|
This user is offline |
View Website
|
|
|
active
Joined: Mon, Dec 8, 2008
54 Posts
No Rating |
OK.. The wall sweep and wall reveal are grayed out in plan view. The are accessible in 3D view, but I'm not given the option to create a profile. If I apply it using the default profile (rectangular profile), it seems like I can then modify the profile, but I guess I need to create and save a profile somewhere.
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
There are two options. A wall hosted sweep as you suggest requires a profile to be loaded. You need to create that first and then load it into the project (use the Profile hosted template). The second option, which you can do in a plan view is to create a component in place, using the wall category, define the path and draw the profile that you want.
|
