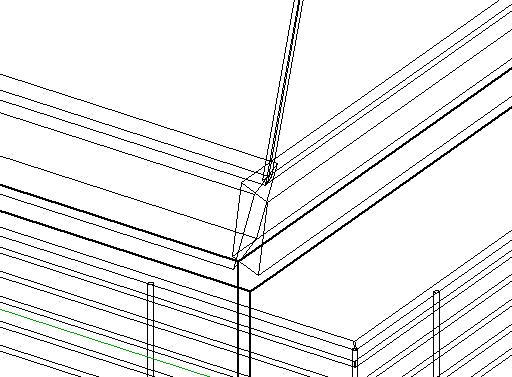

fine as long as everything is straight up and down.. RAC2009 please see the images of this airport tower i'm trying to build.. where the glass angles and sits on an angled base and joins at the corners and has been hours and hours of mish-mashing generic model elements.. how would anyone even attempt something like these kind of angles?
|
This user is offline |
|
 | |
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
 |

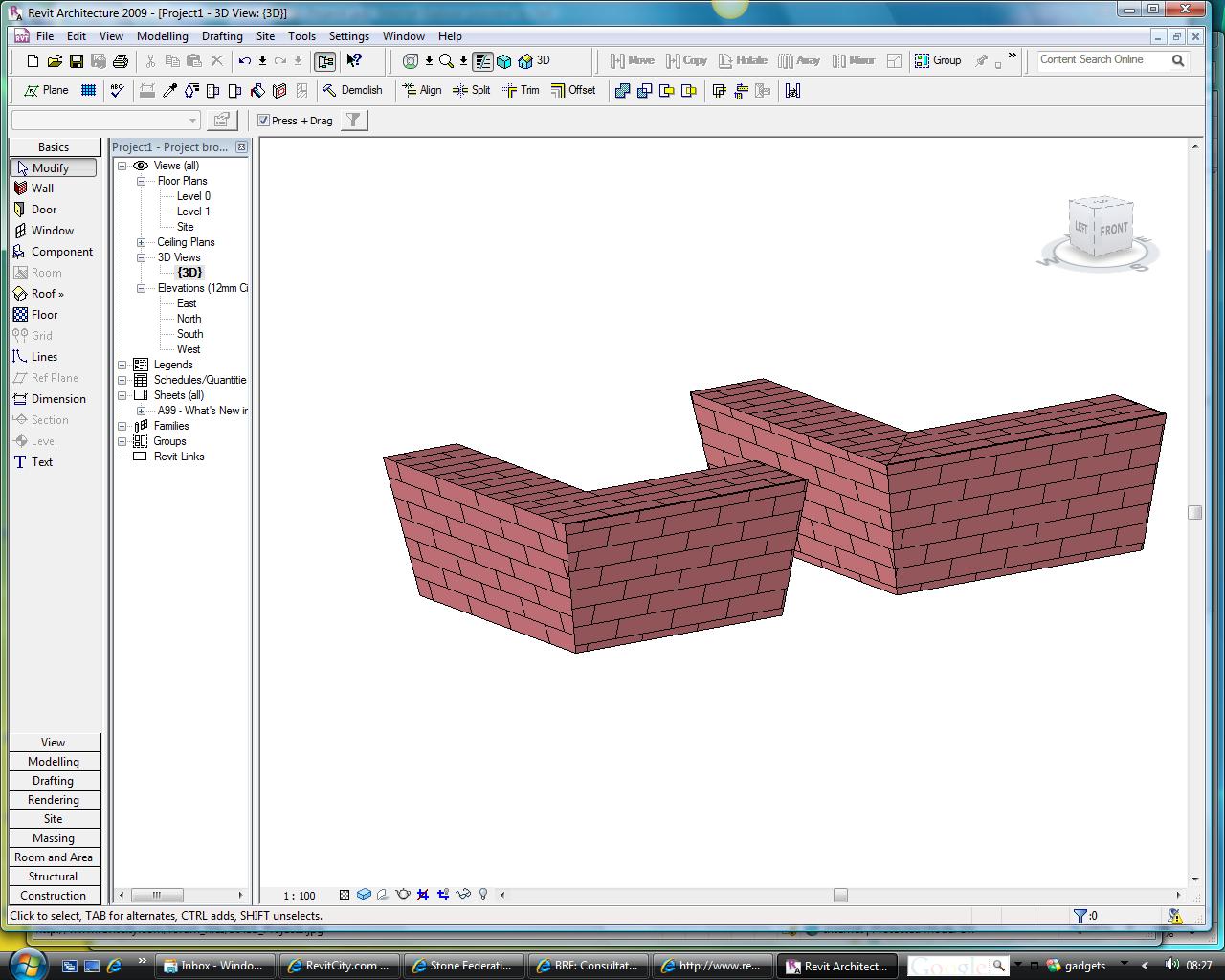

Create the walls as a blend - the illustration shows the first made as one blend and the second made as two blends - which gives greater control over the material orientation. For the glazing, consider how this would actually be constructed. You will have to have some kind of join here, even if its a gasket or silicone. The galzing can be created in the same way as the walls - blends, or as sloped glazing. Create new mullions for the gasket joins.
|
This user is offline |
View Website
|
|
|
Joined: Sun, Jan 4, 2009
356 Posts
|
thanks so much for reminding me about the blend.. the joy that brings is unbelievable.. of course it helps to be a little crazy like me.. see the image and all i did was create a big blend with a big void in the center.. i have no idea how i would create a slanted curtain wall in there though.. if you have any ideas on that let me know.. but i'm so happy right now..
|
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
You can create it in the same way as the walls or create it as a mass using the blend and select the faces to be curtain walls or create it as an inverted roof and change it to sloped glazing.
|
