Thu, Apr 2, 2009 at 6:18:40 PM | Pendant light mounted to sloped ceiling

#1

chuckbradley


active

Joined: Thu, Sep 22, 2005
21 Posts
No Rating


I want to make my lights have the ability to offset from a sloped ceiling and automatically tilt to a vertical plane so they appear to hang with gravity.  Right now they hang at a 90 angle to the ceilings.  Families are face based.  Basically it seems I need to lock objects in but allow the host face to tilt.  This "technology" could eventually add the ability for me to put objects on most any angle of surface and have they annotations show up in plan.

It didn't seem possible when I tried it so I'm looking for some help.



Thanks!


This user is offline



Thu, Apr 2, 2009 at 7:59:08 PM | Pendant light mounted to sloped ceiling

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


Open your light family and under settings / categories & parameters and uncheck the always vertical box.

Now reload the family - go to the appropriate view and rotate your light to vertical.


This user is offline



Mon, Apr 6, 2009 at 7:21:34 PM | Pendant light mounted to sloped ceiling

#3

chuckbradley


active

Joined: Thu, Sep 22, 2005
21 Posts
No Rating


Thanks, but that is not an option for light fixtures.



In any case, I would like the light to hang down automatically, no matter the ceiling angle.  There is probably some data extraction and a formula involved here.


This user is offline



Tue, Apr 7, 2009 at 2:33:15 PM | Pendant light mounted to sloped ceiling

#4

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


chuckbradley wrote "Thanks, but that is not an option for light fixtures."



LOOK AGAIN - You are absolutely wrong!


This user is offline



Tue, Apr 7, 2009 at 6:03:37 PM | Pendant light mounted to sloped ceiling

#5

chuckbradley


active

Joined: Thu, Sep 22, 2005
21 Posts
No Rating


I appreciate your help, even though you are absolutely incorrect.  At least as far as what I'm looking at on my screen. Smile

Under Settings-Family Category and Parameters, there are only 3 parameters available for Light Fixtures. Light Source, Part Type and Shared.

MEP09 is the software version I'm using.

Thanks again.








This user is offline



Tue, Apr 7, 2009 at 6:19:46 PM | Pendant light mounted to sloped ceiling

Thread Post Kudo! #6

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes

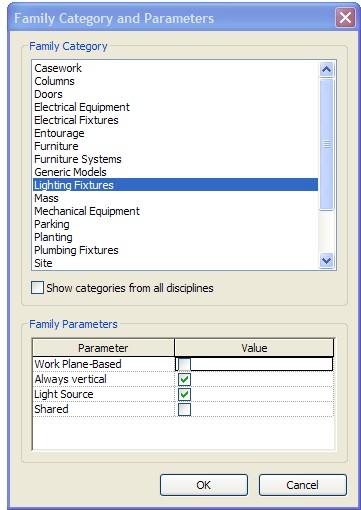

Well, maybe something different in MEP - here is Architecture 2009.



This is just a lighting fixture - ceiling based has the same GUI.



Attached Images


This user is offline



Tue, Apr 7, 2009 at 6:47:28 PM | Pendant light mounted to sloped ceiling

#7

chuckbradley


active

Joined: Thu, Sep 22, 2005
21 Posts
No Rating


The difference is yours is a Ceiling Based light fixture.

We are using linked architectural models, so everything has to be "face based" or it will not place on the surface.

Thanks again!


This user is offline



Tue, Apr 7, 2009 at 7:07:45 PM | Pendant light mounted to sloped ceiling

#8

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 377 Votes


NO - as I said, this is just a light fixture ......  ceiling based has the same GUI.



BUT NOW WE KNOW THE REST OF THE STORY!  You used a generic model (face based) template - not  a lighting template.  If you had given that information eariler, we could have saved a lot of time.

Faced based generics may work best for what you are doing but you could have used just a light fixture and aligned it to surfaces.


This user is offline



Tue, Apr 7, 2009 at 7:23:58 PM | Pendant light mounted to sloped ceiling

#9

NKramer


active

Joined: Wed, Oct 10, 2007
285 Posts
4 Stars: 9 Votes

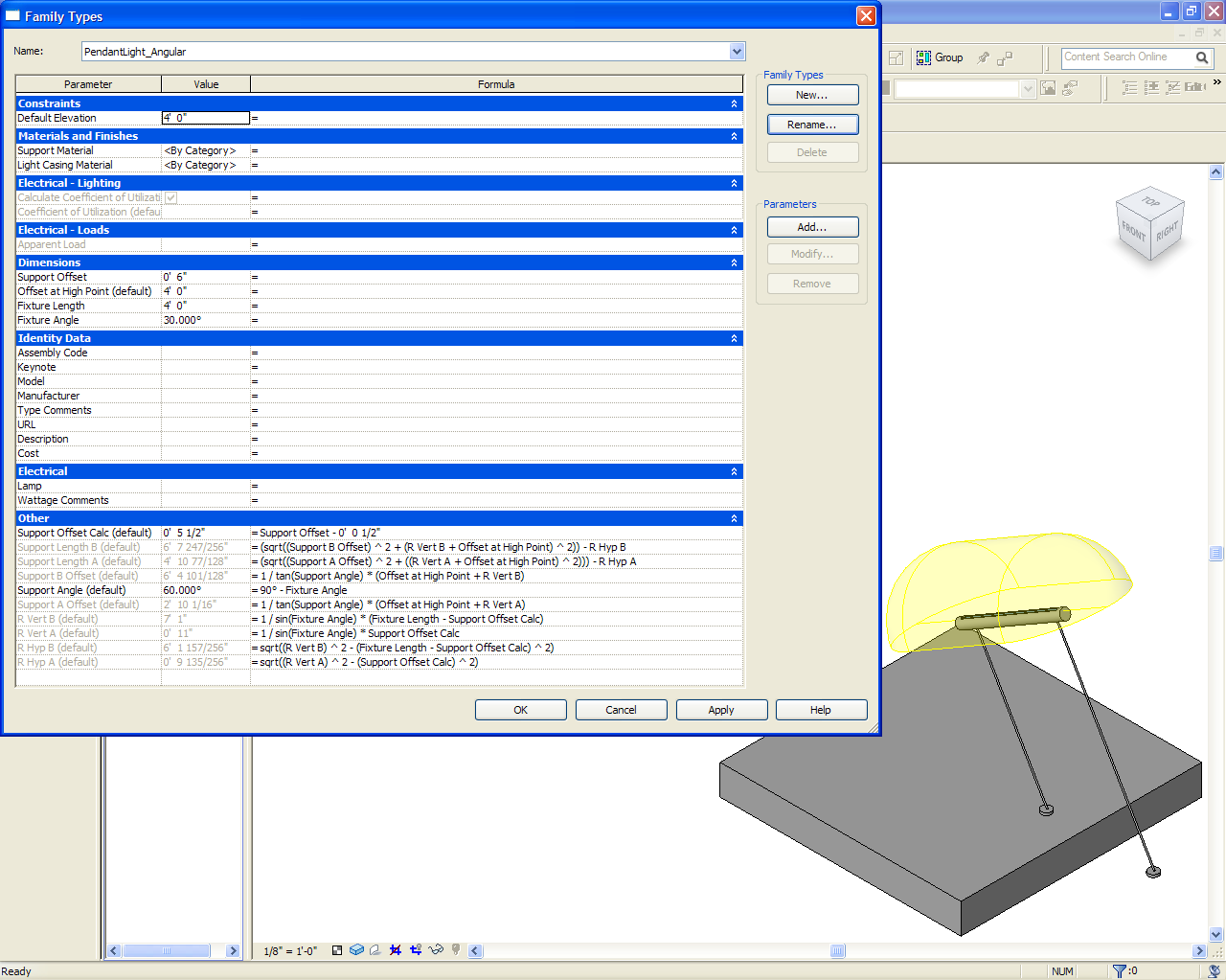

This is the only other way to do it....

It took me about a day to get this working, but I would be happy to sell it to you Smile



Nick



Attached Images


This user is offline

View Website

Wed, Feb 17, 2010 at 9:54:28 PM | Pendant light mounted to sloped ceiling

#10

jmqrsq


active

Joined: Fri, Oct 21, 2005
168 Posts
5 Stars: 3 Votes


sell it to me? how about just some freindly help on how you made it?

This user is offline



Thu, Feb 18, 2010 at 12:04:20 AM | Pendant light mounted to sloped ceiling

#11

dano3d


active

Joined: Thu, Jan 12, 2006
56 Posts
3.5 Stars: 3 Votes


Here's a ceiling fan that always stays vertical.

It's "ceiling based", so make sure you have a ceiling system to attach it to.

Hope it helps you.

Dano



This user is offline

View Website

Thu, Feb 18, 2010 at 1:55:31 AM | Pendant light mounted to sloped ceiling

#12

NKramer


active

Joined: Wed, Oct 10, 2007
285 Posts
4 Stars: 9 Votes


Get a family started, use the screen shot and formulas and see where that takes you. I would be happy to help trouble shoot or work on a family. Or sell it if you want it done for you. Smile



Nick


This user is offline

View Website

Wed, Feb 2, 2011 at 11:49:18 PM | Pendant light mounted to sloped ceiling

#13

yuliavsan


active

Joined: Thu, Jan 27, 2011
2 Posts
No Rating


NKramer - Can I get your sloped ceiling family? I typed in everything from your attacment and it doesnt work for me. Please help.

Edited on: Wed, Feb 2, 2011 at 6:41:21 PM

This user is offline



Wed, Oct 31, 2018 at 1:37:08 AM | Pendant light mounted to sloped ceiling

#14

bitslap


active

Joined: Tue, Mar 29, 2016
0 Posts
No Rating


7 years later...

I wanted accent lights for landscape lighting, and from a youtube clip:

1. Created ceiling-based light from template (be sure to uncheck 'Always Vertical' - you can't do it later)

2. Placed light family on ceiling in new project and saved project.

3. Linked saved project into new, empty project.

4. Clicked 'Collaborate->Copy/Monitor->Select Link' and clicked the linked project.

5. Clicked 'Copy' then selected the ceiling light, then 'Finish'

6 The light is now in the empty project as a face-hosted light, anchored perpendicular to the host.




This user is offline
