Forums >> Revit Building >> Technical Support >> How do I create a custom wall cap?

Search this ThreadSearch this Thread | Page 1 of 1 |

Tue, Mar 3, 2009 at 5:55:54 PM | How do I create a custom wall cap?

#1

Needwiz


active
Needwiz Avatar

Joined: Sat, Aug 25, 2007
50 Posts
No Rating

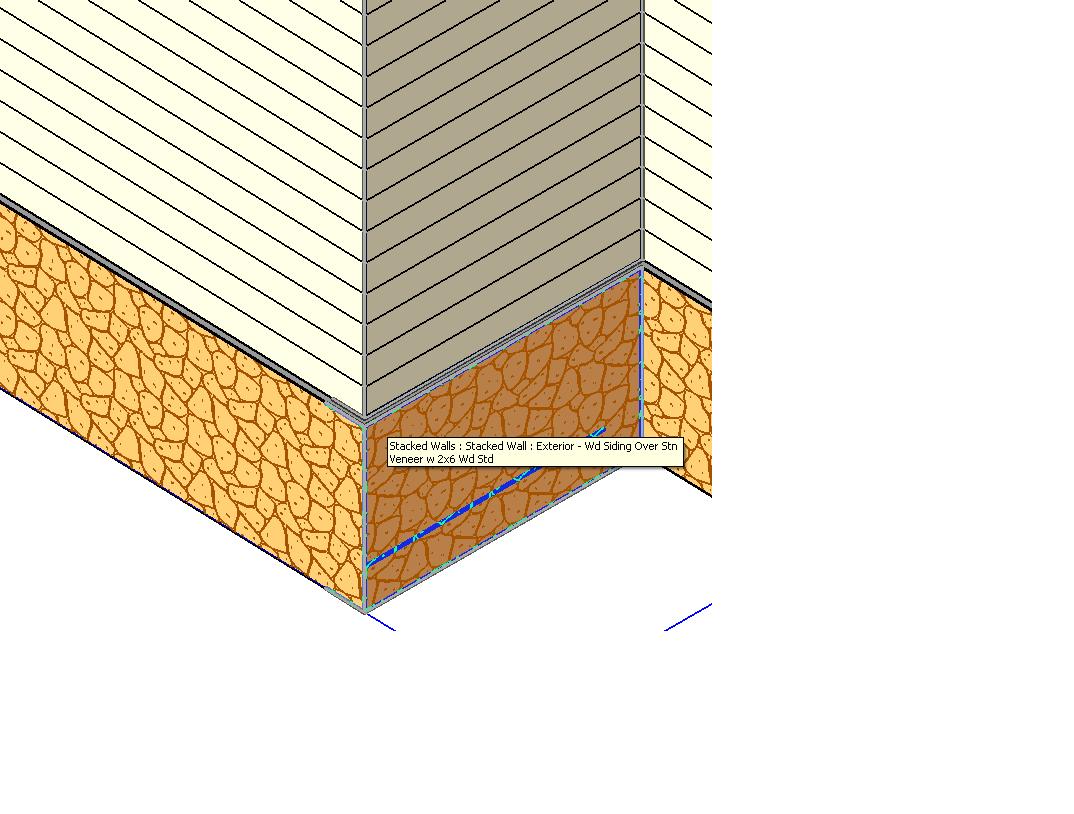

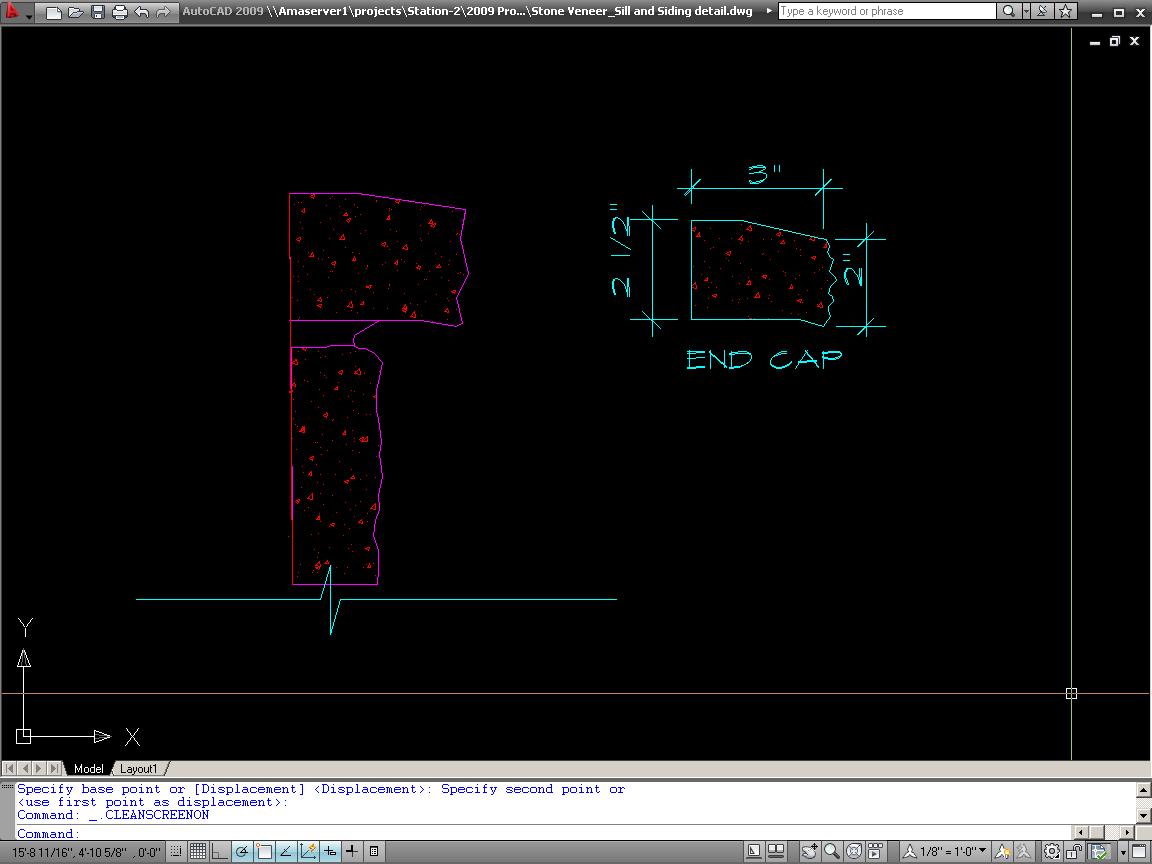

I have created a stacked wall that consist in wood siding on stone veener, now I want create the stone wall cap or watertable sill. How do I create this by using the 2D profile of the wall that I have in autoCAD, see screen shot. How do I give the wall cap the 3D dimension look in revit model. I tried wall sweep profile folders but there are not many options to choose from, how do I create my own?

Attached Images


This user is offline



Tue, Mar 3, 2009 at 6:12:38 PM | How do I create a custom wall cap?

#2

WWHub


site moderator|||

Joined: Tue, May 16, 2006
13079 Posts
3.5 Stars: 347 Votes


Family/new /profile - in family editor - settings/family categories & parameters/profile usage/wall sweep



Load in then set in in your wall sweep command.


This user is offline



Tue, Mar 3, 2009 at 6:15:34 PM | How do I create a custom wall cap?

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Create a new profile (File, New, Family, Profile) and draw the shape that you require.  Load it into the project and you will be able to use it as a wall profile.

This user is offline

View Website

Tue, Mar 3, 2009 at 6:35:48 PM | How do I create a custom wall cap?

#4

Needwiz


active
Needwiz Avatar

Joined: Sat, Aug 25, 2007
50 Posts
No Rating


Thank you guys for your help and quick response. I am new with RA2009 and at times I get frustrated but I am not giving up and hopefully I will be able to help others after I get more experience.

This user is offline



Tue, Mar 3, 2009 at 7:00:23 PM | How do I create a custom wall cap?

#5

coreed


site moderator|||
coreed Avatar

Joined: Fri, Feb 10, 2006
1874 Posts
4 Stars: 16 Votes


this video might be of help to you also

http://www.screencast.com/t/kvnC8QGCR84

hth


-----------------------------------

best regards,

coreed,aia

bmpArchitects,Inc.

"Revit has to be implemented, Not installed."

Long Live Revit
