Hi,

I need help on creating a double skin facade system wall?  Can anybody assist me in creating such system? I'm working with Revit Architecture 2009.

I think that I have to create this system as a family/group, that's as far as I got.



Thanks,


-----------------------------------

I. Reyes

4th Yr. Architecture Student

Illinois Institute of Technology

Revit Architecture 2009

This user is offline



Sun, Feb 22, 2009 at 6:44:48 AM | Need assistants on double facade....

#2

ireyes


active

Joined: Sat, Feb 23, 2008
11 Posts
3 Stars: 1 Votes

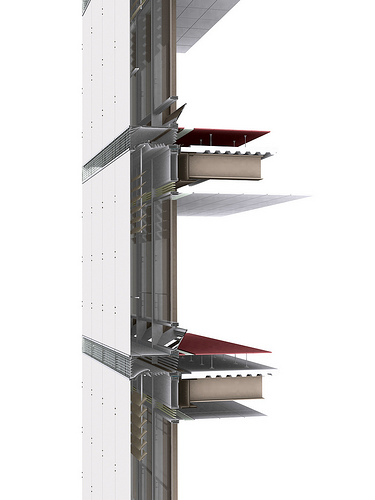

Here is a picture of such system.  I'm trying/want to create something similar to this....



Thanks



Attached Images


-----------------------------------

I. Reyes

4th Yr. Architecture Student

Illinois Institute of Technology

Revit Architecture 2009

This user is offline



Mon, Feb 23, 2009 at 12:16:49 PM | Need assistants on double facade....

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes

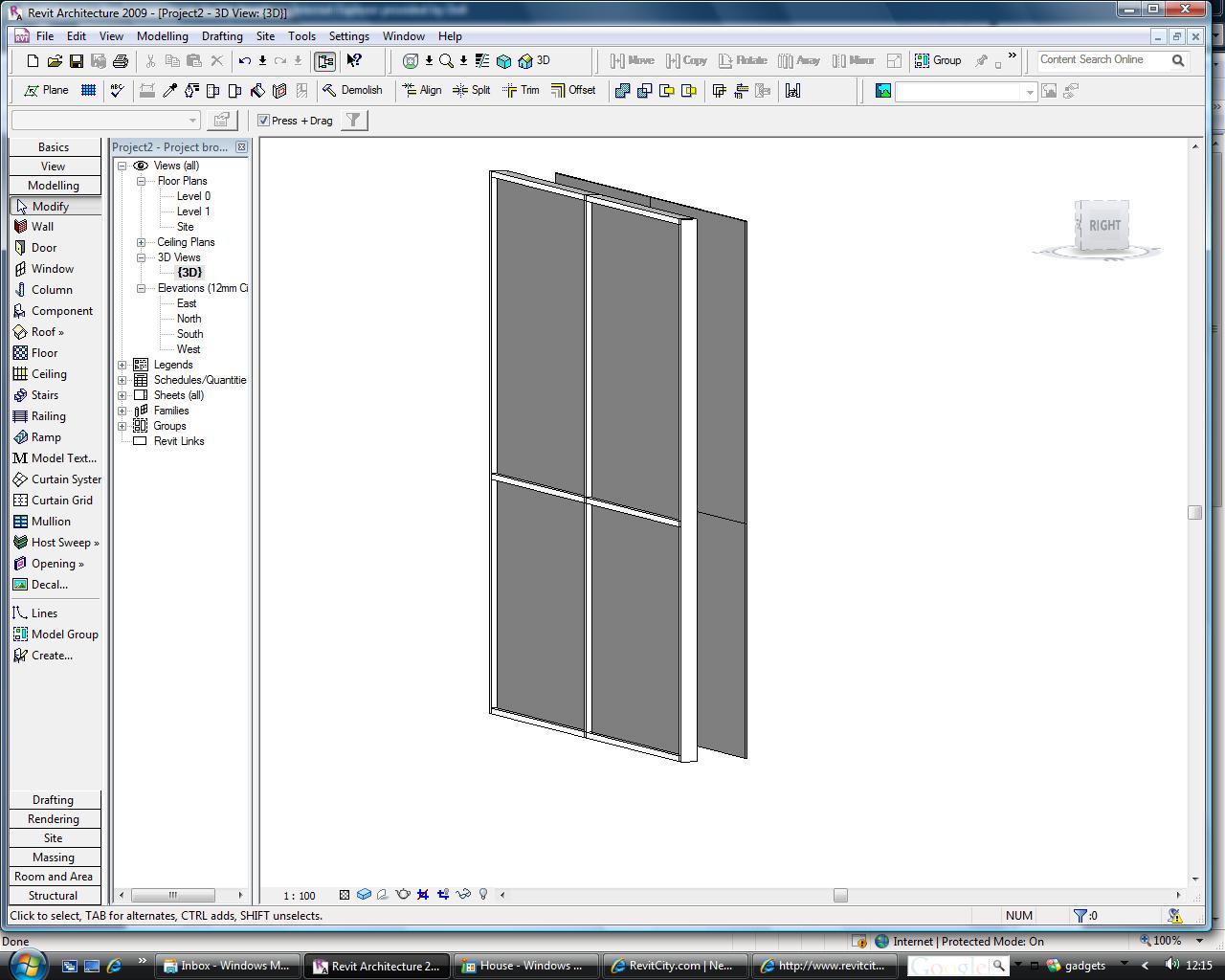

You could create it using two separate curtain walls, or alternatively, create your own curtain wall panels with two layers (image).  You could even create the louvres as part of the panel.

Attached Images


This user is offline

View Website

Mon, Feb 23, 2009 at 5:48:30 PM | Need assistants on double facade....

#4

ireyes


active

Joined: Sat, Feb 23, 2008
11 Posts
3 Stars: 1 Votes


That was my alternative option, but I was wondering if there is an easier way to do this with just a few clicks.  such as creating a wall as a family/group, click wall icon, select wall type, and location A-B.  But if there is no other way I will just have to do this the way you suggested.



Thanks,


-----------------------------------

I. Reyes

4th Yr. Architecture Student

Illinois Institute of Technology

Revit Architecture 2009

This user is offline



Mon, Feb 23, 2009 at 6:03:36 PM | Need assistants on double facade....

#5

KingRevit


active

Joined: Mon, Oct 15, 2007
321 Posts
4 Stars: 12 Votes

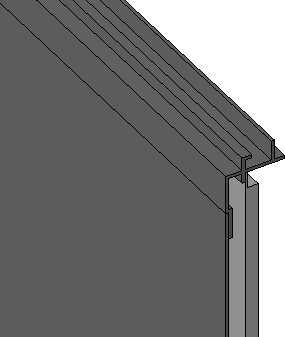

just make a curtaian panle see attached

Attached Images


Attached Files

This user is offline



Mon, Feb 23, 2009 at 8:22:46 PM | Need assistants on double facade....

#6

ireyes


active

Joined: Sat, Feb 23, 2008
11 Posts
3 Stars: 1 Votes


kingrevit,

 i'm new to revit and would like to know how to load / change the wall type to your *.rfa file.

 thanks,


-----------------------------------

I. Reyes

4th Yr. Architecture Student

Illinois Institute of Technology

Revit Architecture 2009

This user is offline



Mon, Feb 23, 2009 at 8:24:17 PM | Need assistants on double facade....

#7

ireyes


active

Joined: Sat, Feb 23, 2008
11 Posts
3 Stars: 1 Votes


kingrevit,

 i'm new to revit and would like to know how to load / change the wall type to your *.rfa file.

 thanks,


-----------------------------------

I. Reyes

4th Yr. Architecture Student

Illinois Institute of Technology

Revit Architecture 2009

This user is offline



Tue, Feb 24, 2009 at 9:07:07 AM | Need assistants on double facade....

#8

KingRevit


active

Joined: Mon, Oct 15, 2007
321 Posts
4 Stars: 12 Votes


sorry thats too big a topic for a forum, basically what your asking me how do you make familes?

sorry but you will need to get training for this.


This user is offline



Tue, Feb 24, 2009 at 12:30:13 PM | Need assistants on double facade....

#9

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Here you have the tutorials for Families also... http://usa.autodesk.com/adsk/servlet/item?siteID=123112&id=11091739




-----------------------------------
