Forums >> Revit Building >> Technical Support >> Leader Line Line weights

Search this ThreadSearch this Thread | Page 1 of 1 |

Sat, Feb 7, 2009 at 12:56:19 AM | Leader Line Line weights

#1

everist


active

Joined: Fri, Jun 27, 2008
90 Posts
3 Stars: 2 Votes


Hello,

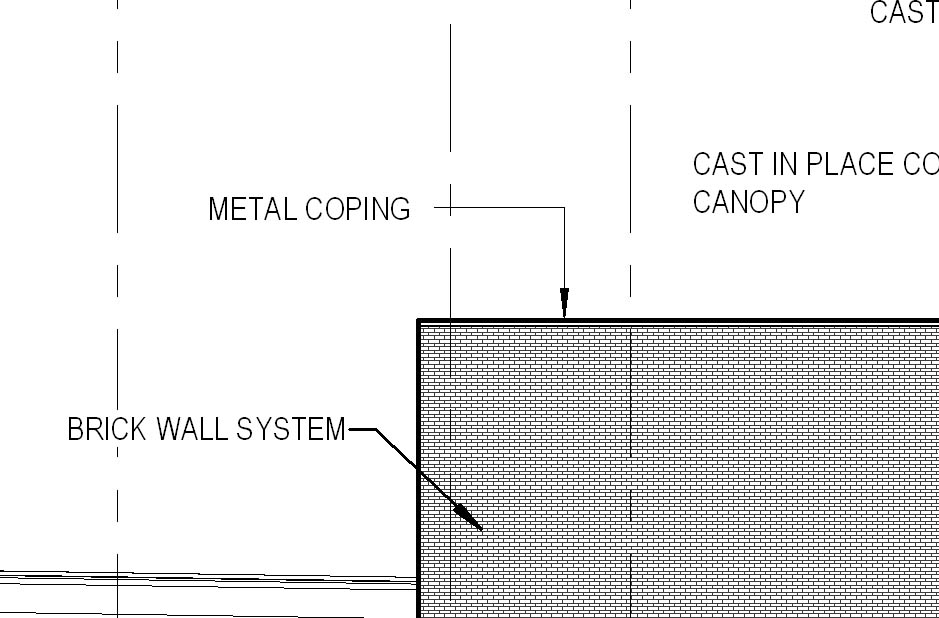

I am having difficulty getting my leader lines to dosplay correctly. One extends form text, and the other extends from a multi-category tag. The multi category tag leader is displaying heavier than I would lik eit to. I would think that there would be a "leader line" object style under object styles, or that I would be clued in looking at the line weights in the multi-category tag family, but not so. There is some inconsistency comewhere.



See attached multi-category tag andimage showing the problem. I'm using R-ARC 2009.



Attached Images


Attached Files

This user is offline



Sat, Feb 7, 2009 at 1:26:00 PM | Leader Line Line weights

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes

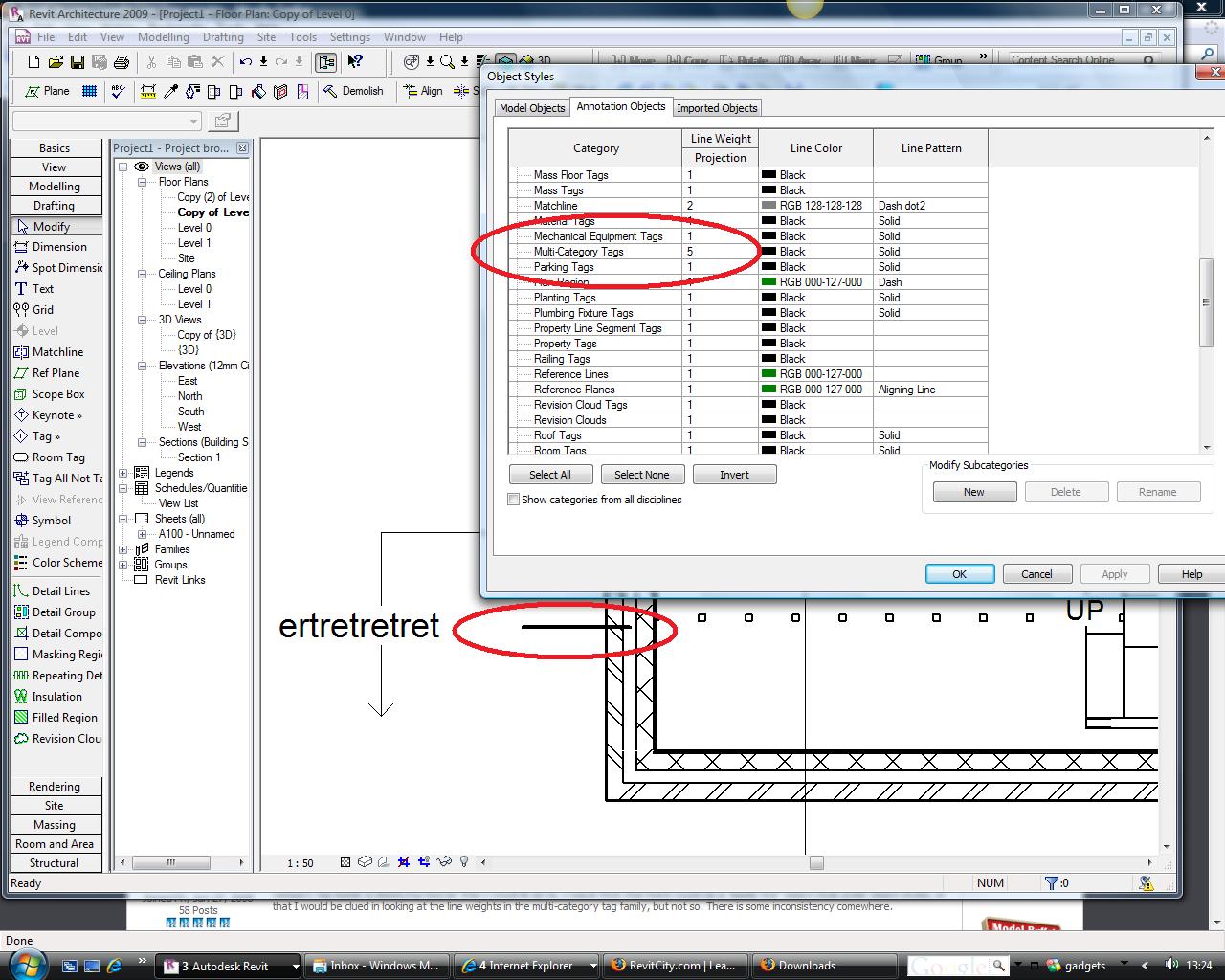

Go to object styles and look for multi category tags.  You can adjust the leader lineweight there.

Attached Images


This user is offline

View Website

Sat, Feb 7, 2009 at 4:47:57 PM | Leader Line Line weights

#3

everist


active

Joined: Fri, Jun 27, 2008
90 Posts
3 Stars: 2 Votes


A ha! thanks!
