Forums >> Revit Building >> Technical Support >> Bearing Footing Shape?
|
|
|
active
Joined: Wed, Feb 16, 2005
5 Posts
No Rating |

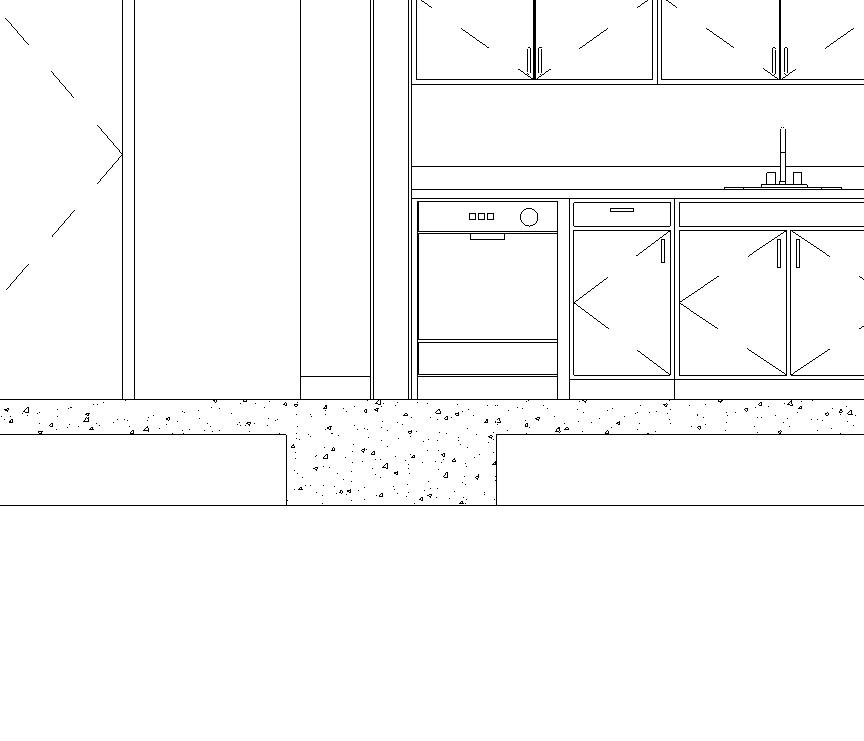

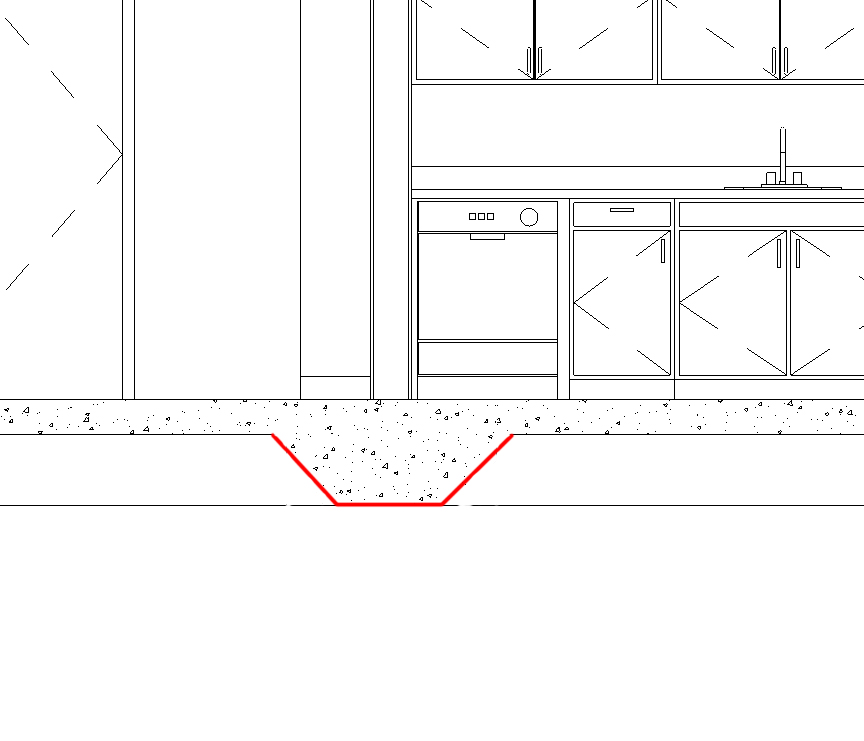

I tried looking for help under the search but just cant find what im looking for. Im adding a Bearing Footing under interior walls, using Foundation Wall, (Wall Foundation: Bearing Footing 36"x12" ) but it is rectangular. I need to have chamfered side as in red in my attached pictures. Is there a way to modify the pre-set shape,or a differant way of creating a footing for interior load bearing walls? Thanks for any help James Using Revit 2009
Edited on: Thu, Jan 8, 2009 at 12:40:50 PM
|
This user is offline |
|
 | |
|
|
site moderator|||
Joined: Fri, Feb 10, 2006
1874 Posts
 |
you might try voids to cut away the unwanted material. if you are not going to be caculating quanities and just want it to look correct in section you can try the edit cut profile tool. HTH
-----------------------------------
best regards, coreed,aia bmpArchitects,Inc. "Revit has to be implemented, Not installed." Long Live Revit |
This user is offline |
|
|
|
active
Joined: Tue, Apr 12, 2005
1310 Posts
|
You can create a new family using the structural foundation template.
|
