Sat, Dec 6, 2008 at 4:37:06 PM | curved exterior stairs

#1

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Hello,



I am working in 2008.  See attached picture front stairs this is a common thing my company does but I have no clue how to do this in Revit.  Does any one have any suggestions.



Thanks,

Raina



Attached Images


This user is offline



Sun, Dec 7, 2008 at 4:24:26 AM | curved exterior stairs

#2

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


This is suprisingly easy to achieve.  Edit your stair and delete the straight boundaries (green lines) and draw new ones using the boundary line in the sketch tools.  Delete straight risers and redraw the curved ones using the riser line tool.  Make sure all the lines meet up.  Finish the sketch and - curved stair complete.

This user is offline

View Website

Mon, Dec 8, 2008 at 6:25:41 PM | curved exterior stairs

#3

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Thanks tim123.  Got the stairs curved no problems.

See attached again not sure what to call this part as its not really a handrail nor is it stairs.  I thought maybe to make it like a slab but then it is not sloping with the stairs.  Or would the slope arrow tool work?




This user is offline



Tue, Dec 9, 2008 at 8:35:07 AM | curved exterior stairs

#4

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


Do you mean the side walls shown in the previous image?  I would do these as walls and delete the handrail.

This user is offline

View Website

Tue, Dec 9, 2008 at 9:23:53 AM | curved exterior stairs

#5

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Oops I meant to attach this picture and also the stairs.  I guess you could call it a side wall.  How would you get the wall to curve up at the very end to connect to the porch?  This is in 2008.



Thanks,

Raina Mc



This user is offline



Tue, Dec 9, 2008 at 10:39:41 AM | curved exterior stairs

#6

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes

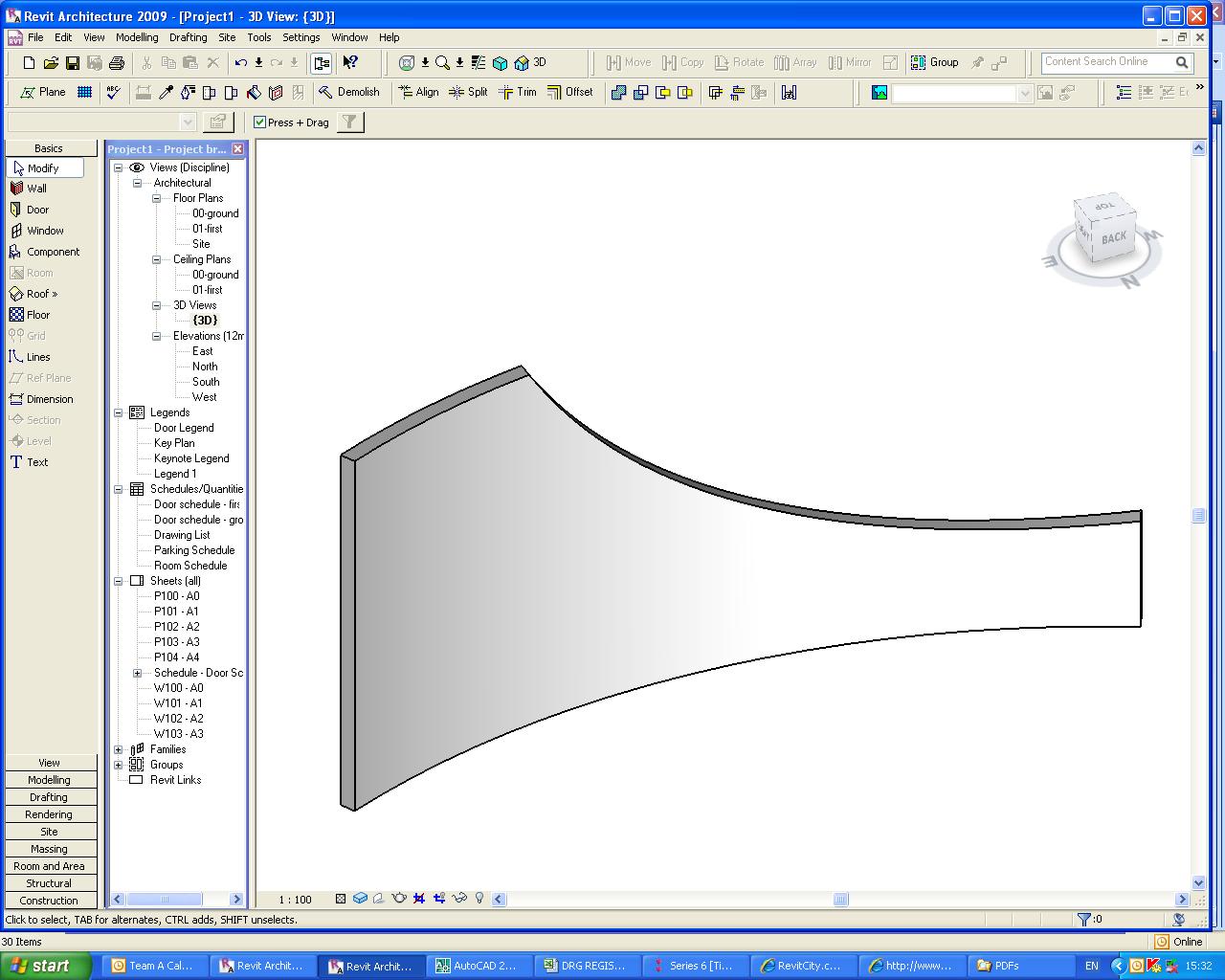

Draw your curved wall and use a void yo cut it - see attached.

Attached Images


This user is offline

View Website

Tue, Dec 9, 2008 at 11:30:22 AM | curved exterior stairs

#7

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


How do you do a void cut in a wall?  I don't see that option.  I am still new at this.

This user is offline



Tue, Dec 9, 2008 at 12:06:06 PM | curved exterior stairs

#8

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Go to "Moddeling-Create" use "Wall" category then "Void" - extrusion....




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Dec 9, 2008 at 2:10:07 PM | curved exterior stairs

#9

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Ok here is what i have.  Thanks TyphoonI followed the steps "Moddeling-Create" use "Wall" category then "Void" - extrusion.... which I am sure works but I am doing something wrong.  How can I get it to slope, like the picture Tim123 posted?  Are there any tutorials or other information out there that might help me to understand this function of Revit?  Or can someone give me a step by step?



Thanks again,

RainaMc


This user is offline



Tue, Dec 9, 2008 at 2:25:00 PM | curved exterior stairs

#10

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


see attached 2008 file.

This user is offline



Tue, Dec 9, 2008 at 2:31:59 PM | curved exterior stairs

#11

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes


Hi, see the video: http://screencast.com/t/BnjcO83Sug




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Dec 16, 2008 at 1:13:51 PM | curved exterior stairs

#12

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Typhoon,



See attached it works.  Thank you so much for the video very much appreciated.  Only one more thing is there a way to show the brick on top where the void extrusion is?



Thanks again for all the help,



RainaMc







Attached Files

This user is offline



Tue, Dec 16, 2008 at 2:16:02 PM | curved exterior stairs

#13

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 201 Votes

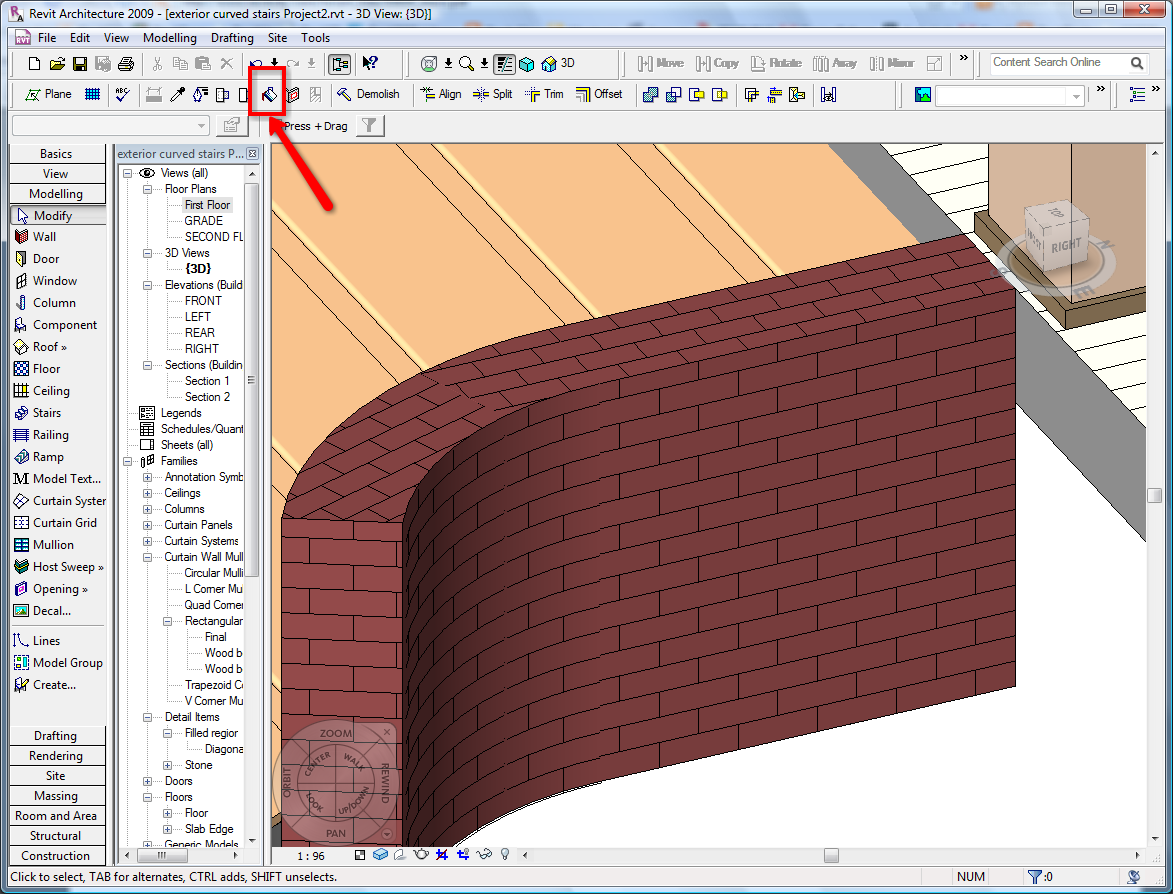

Use the "Paint Tool"... see the image attached

Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Tue, Dec 16, 2008 at 2:42:51 PM | curved exterior stairs

#14

RainaMc


active
RainaMc Avatar

Joined: Mon, Sep 8, 2008
126 Posts
No Rating


Thanks!
