Wed, Dec 3, 2008 at 4:24:01 PM | Extending Wall finishes/Walls not joining

#1

VanDeurzen1


active

Joined: Fri, Oct 10, 2008
2 Posts
No Rating


I am working on a simple house with a brick facade in the front.  In order to generate the 3d model correctly, I need the brick to extend past the floor system to the concrete wall (or a brick ledge, to be more accurate).  As you well know, Revit stops walls at the floor line.  I have discovered how to extend the finishes above or below (by editing the wall type and unlocking the finish layers [see other forums for that]).

My new problem arises that when I do more than one wall in this fashion, as in going around corners, the 3d model looks excellent, but the floor plan walls stop joining.  The brick shows to be running through the perpendicular stud cavity.

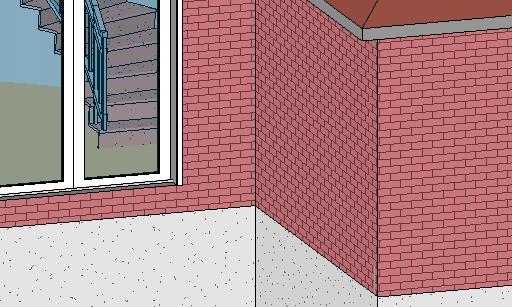

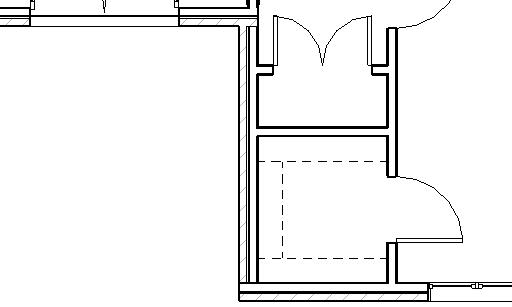

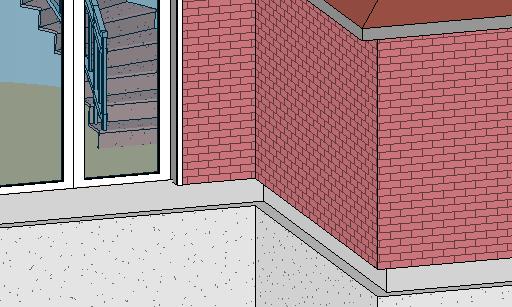

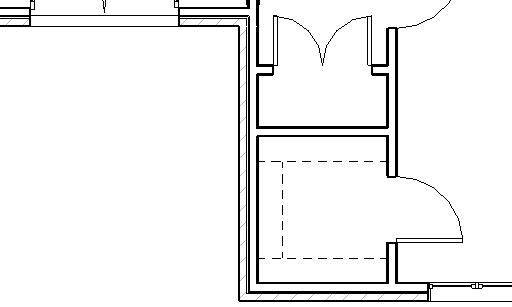

I am having to sacrifice either the 3d/elevations or the floor plan.  Has anyone else run into this problem?  I have attached pictures detailing my problems.



Attached Images

49127_nofinish_extplan.jpg49127_nofinishext3d.jpg49127_withfinish_ext3d.jpg49127_withfinish_extplan.jpg

This user is offline



Wed, Dec 3, 2008 at 5:43:36 PM | Extending Wall finishes/Walls not joining

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes


Hi, did you try use the "Trim" in those walls? or/and the "Join Geometry"?? those walls have the same "offset extended base" value??




-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Wed, Dec 3, 2008 at 5:45:14 PM | Extending Wall finishes/Walls not joining

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Extend your walls to the required level by setting in an offset to the bottom edge and make sure that the wall is not attached to the floor level.


This user is offline

View Website

Wed, Dec 3, 2008 at 6:13:37 PM | Extending Wall finishes/Walls not joining

#4

VanDeurzen1


active

Joined: Fri, Oct 10, 2008
2 Posts
No Rating


Fixed the problem:

I used a miter to join the walls.

One caveat:  revit seems to be acting very strange in this situation, when i miter the lower corner (plan view), the other wall join fixes itself with no editing being done.



Thanks for the help!
