Forums >> Revit Building >> Technical Support >> Sectional 3D View

Search this ThreadSearch this Thread | Page 1 of 1 |

Sun, Nov 2, 2008 at 11:46:54 PM | Sectional 3D View

#1

Bansri


active

Joined: Sun, Nov 2, 2008
39 Posts
No Rating


Hi,

Can anybody help me with this:

i would like to create a 3D model in Revit wherein half protion looks inside the building and half portion is finished exterior...   How can we resolve this?


This user is offline



Mon, Nov 3, 2008 at 12:01:43 AM | Sectional 3D View

#2

dylan88


active

Joined: Thu, May 31, 2007
16 Posts
No Rating


If you go to a 3D view.

Right Click.

View Properties.

Under 'Extents' there is a tick box called 'section box' click that.

Then press ok, and on your 3D view will be a cube around your drawing. click on it to select it then drag 1 of the arrows back through your model, it should then cut it. Is this what you wanted?


This user is offline



Mon, Nov 3, 2008 at 1:05:15 PM | Sectional 3D View

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4 Stars: 19 Votes


If you do as dylan88 suggests and then duplicate the view and change its view properties you should be able to place both views on a sheet with one on top of the other.  They should snap together so that you create different effects in one drawing.

This user is offline

View Website

Tue, Nov 4, 2008 at 10:54:48 PM | Sectional 3D View

#4

Bansri


active

Joined: Sun, Nov 2, 2008
39 Posts
No Rating


hi dylan88 & tim123....

thanks a lot for the tip.

section box works for the portion i want to show half cut.

but both views in the same sheet seem to be difficult...as we can not hide the edges of the cut  face in the duplicated view.

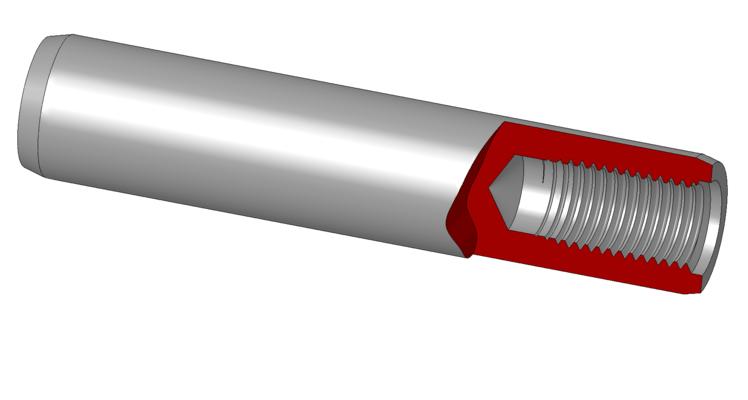

attached is the image of what i have in mind to do with the my building project.

please see if you can help..





Attached Images


This user is offline
