Forums >> Revit Building >> Technical Support >> custom curtain walls

Search this ThreadSearch this Thread | Page 1 of 1 |

Fri, Oct 31, 2008 at 5:31:49 PM | custom curtain walls

#1

3drulez


active

Joined: Tue, Sep 9, 2008
22 Posts
4.5 Stars: 2 Votes


hi, i am practising revit through tutorials and books and am finding some problems while doing so. presently i am doing a tutorial on custom curtain walls from an online tutorial. but i am getting stuck at some places because the tutorial is not clear enough.

the pdf of the tutorial i am uploading . see if someone can help me. the tut is on custom curtain walls  but i am not able to figure out in which family the author is trying to make the mullions.

secondly , how do i insert a array based parameter in a family as stated in the tut. i hav only done dimension based parameters till now.





This user is offline



Fri, Oct 31, 2008 at 9:57:23 PM | custom curtain walls

#2

Typhoon


site moderator|||
Typhoon Avatar

Joined: Tue, May 22, 2007
5921 Posts
4 Stars: 200 Votes

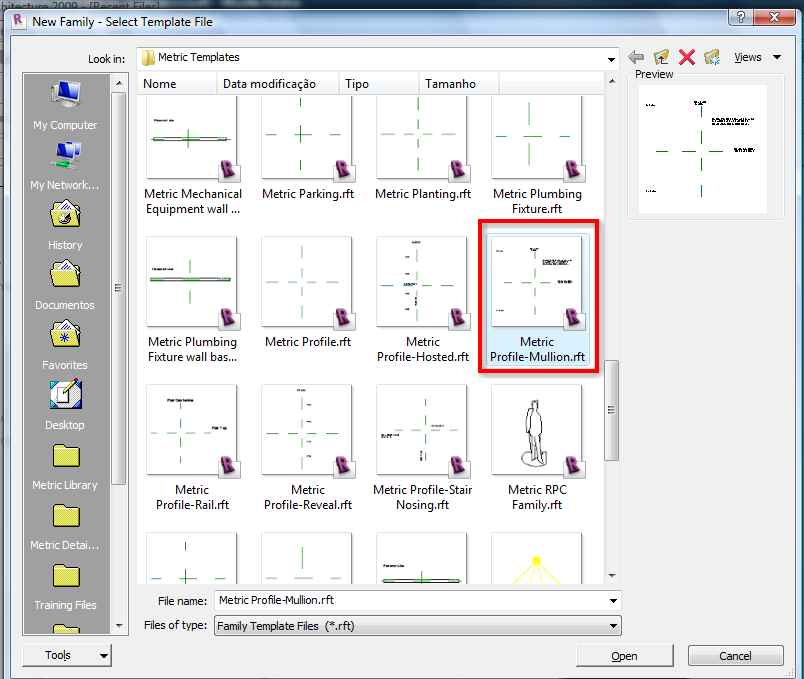

Hi, you can use the "Metric/Imperial-Profile" or "Metric/Imperial - Profile-Mullion" (like you can see in the image attached) to create those "Profiles"....





Attached Images


-----------------------------------

I Hope and I Wish to LEARN  more, and more, and more.... REVIT

This user is offline



Sat, Nov 1, 2008 at 8:33:37 AM | custom curtain walls

#3

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


The mullions are created in the profile - mullion family.

This user is offline

View Website

Sat, Nov 1, 2008 at 3:13:28 PM | custom curtain walls

#4

3drulez


active

Joined: Tue, Sep 9, 2008
22 Posts
4.5 Stars: 2 Votes


hey ,

even i tried with the proflie family but the problem is that the tut. asks to parameter the height within the family editor  which cannot be done with the profile family .

secondly if i use it as a profile and try to use it in curtain walls i get an error saying that the profile is more than one loop so not possible to use..

so i think the mullion is not made as a mullion but as a generic model and then the horizontal and vertical are created separately and then assembled in one component . correct me if i am wrong .






This user is offline



Sat, Nov 1, 2008 at 3:49:38 PM | custom curtain walls

#5

tim123


active

Joined: Tue, Apr 12, 2005
1310 Posts
4.5 Stars: 18 Votes


Yes, reading through the tutorial, the mullions were not created as profiles but as generic models as you suggest, although the tutorial does not mention this.

This user is offline

View Website
