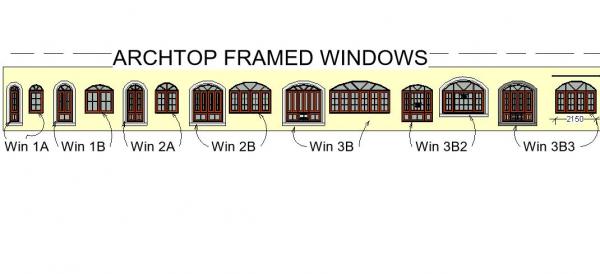

Banarasi Archtop Frmd Window 3B

These Indian style archtop framed windows are created as per actual elements in use.


Banarasi archtop framed Windows

1 Wooden frames are created from wood log section per design of CPWD India. the design prevents plaster damage around door window frames when face flushed with wall face. Insert in frame may be removed by using insert=0. A chanel is made all aroun middle of frame to hold a perforated 6mm dia pipe to inject pest control liquidin it periodically, to protect door frame from termite etc. Arch height is set to vary in a limit & same for window width as well.


2  Multy lite shutter can be utilise for one fully glazed panel to multy lite, simply by adjusting the vertical & horizontal numbers.

3.All shutters are provided with 2D & 3D swing. Window shutters are out swing as used in Indian culture.

4. use families after studdying the parameters. Window width is restricted as per actual use.It is better to handle the family after loading in project.

5. Any querry can be done on my phone number 91 9919640999 Welcome for further help.

CSI Division: 08 52 00 Wood Windows
RevitCity Division: Windows > Casement > Double Hung

Product Version: Revit Architecture 2018

Uploaded By: Lallanji
Uploaded On: Fri, Jul 5, 2024
Original Creator: Contriver Bim Design Studio by Er. L.J.Upadhyay.
