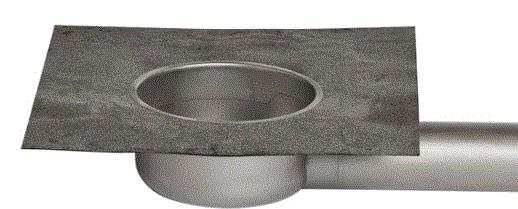

The design of JUAL angular roof outlet is similar to the vertical roof outlet, but the pipe has a 92° angle immediately after the intlet so water is drained horizontally from the roof. The angular roof outlet can be supplied in all standard diametres from 50 mm to 110 mm with various roof membrane types.

Product Version: Revit Architecture 2019

Uploaded By: Justinus7130
Uploaded On: Mon, Jun 20, 2022
Original Creator: JUAL A/S
