CATCH SQUARE 4LED

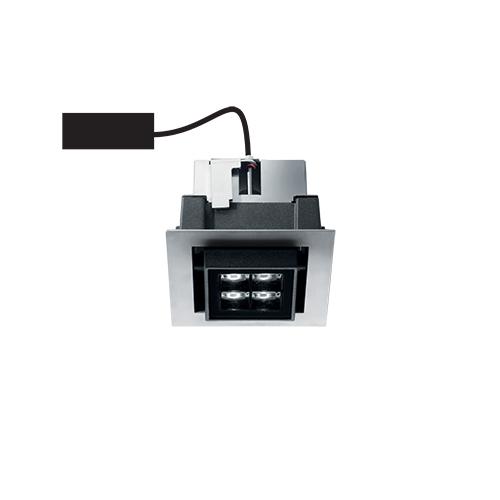

Art. S.7406W 4 MODULES LED 3000K  220-240Vac 620lm CRI 90 MacAdam step 3Rated luminaire luminous flux: 415lmRated input power: 7.8WLuminaire efficacy: 53lm/WElectronic ballast  DALI 2 / PUSH CELUMINAIRE TYPEFalse ceiling-recessed down-light fitting. IP rating IP 65MATERIAL CHARACTERISTICSAluminium die cast housing in EN AB-47100 (low copper content) with high resistance against corrosion. Stone wash surface treatment prior to painting process. Aluminium front trim or Marine grade stainless steel AISI 316L front trim. A4 grade Stainless Steel screws with 2,5-3% molybdenum content which increases the resistance against corrosion. Pre treated Silicone Gaskets. Painting Process : 3 Step Process1) Surface treatment with BONDERITE. A heavy metal free chemical surface treatment containing ceramic nano particles giving a cohesive, inorganic and highly dense protective coating. 2) PRE POLYMERIZATION a process of introducing an epoxy primer with excellent characteristics to the paint which also offers very high resistance to oxidation due to its Zinc content. 3) POLYMERIZATION a process with the application of polyester powder with high resistance against UV rays and harsh weather conditions. Resistance test protection for Marine applications for 1200h. Mechanical resistance IK 08LIGHTING PERFORMANCEThe led chips are positioned inside specific cowels and are not visible therefore resulting in excellent visual comfort and antiglare characteristics. Toughened  transparent  glass 5mm thick. Lamp  adjustable ±20° position. LOR -- INSTALLATION AND MANTEINANCEThe luminaires are fixed to the falseceiling by a heavy-duty bracket system, adjustable. WIRINGLuminaire hard wired with 0.4m H05RNF cable, supplied with IP67 connector . Isolation: CLASS II . Available colours: Stainless steel (cod.19). Weight: 1.84 Kg Glow Wire test: --LED circuit included.REGISTERED DESIGNThis luminaire contains built-in LED modules. In case of damage or malfunction please contact the manufacturer to receive additional instructions on how to replace and relative spare parts to order. The LED modules cannot be handled in the luminaire by the end user.LED modules are engineered accordingly to the existing regulations of Lumen Maintenance (LM80) and Technical Memorandum (TM21), where uniformity and quality of the light is 70,000 hours referred to L80 B10 Ta 25 ° C (50,000 hours referable to L80 B10 Ta 40°C). Lifespan of the luminaire > 50,000 hours at 40°C. Performance Ambient temperature Tq 25°C. Operating ambient temperature range is from -20°C to +50°C. Storage temperature range from -20°C to +60°C.
