Simple Cylinder detail item.

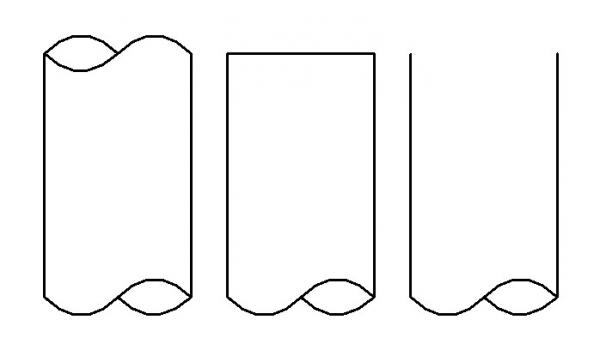

Length and diameter are parameters. Option of a line, empty, or infinite on the end. (Picture shows the different visibility parameters.) Masking or not is also a parameter.

This was used for deep foundation details but could have many applications.

Product Version: Revit Structure 2018

Uploaded By: annieruth7
Uploaded On: Mon, Apr 19, 2021
