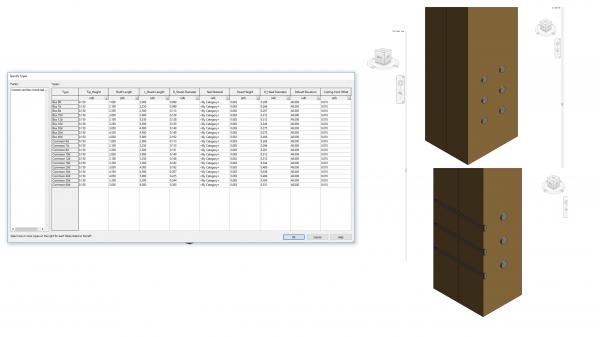

I included a .txt file so that you can use the Type Catalog in the image. Place the .txt file in the same location (directory) as this family. You can enter the nail types manually, but the catalog is much easier.

Also, this family allows you to cut through material by using the cut tool.

The Dimensions are based off of Appendix A Table L4 of the NDS (National Design Specification For Wood Design) 2005 Edition.

CSI (Construction Specifications Institute) MasterFormat 06 05 23.10 Nails.
