Rinnai VT26 gas califont,  wall based.

MEP connections for gas supply, cold water IN, hot water OUT, 230 v electrical power supply,  no condensate drain  (optional on this model),  materials for  white spray painted metal case, manufacturer logo, copper tubing.

CBI (NZ)  Liquid  71-26 hot potable water reticulation systems

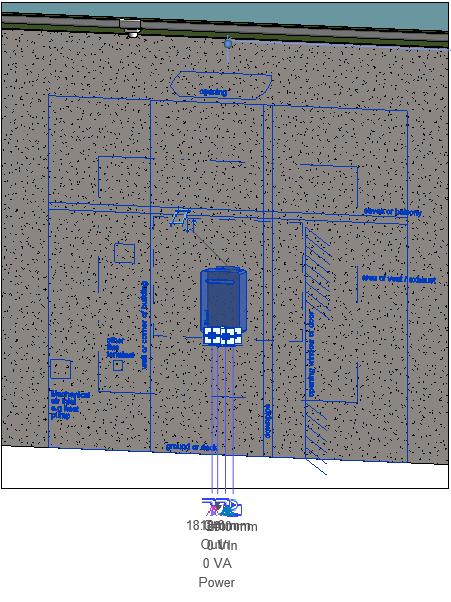

Has local NZ gas regulations module placement on wall relative to window or doors, dowpipes, balconies, internal corners and ground lines as diagram with Yes/No parameter control -  place the unit on the wall and the unit and diagram appear, move to suit the annotated lines until module in correct  place,  click then select Properties and turn off the 2D diagram,  leaving the module alone on the wall.

Modeled from local NZ Rinnai web site  literature.

Revit 2018

Uploaded By: trombe
Uploaded On: Wed, Nov 22, 2017
Original Creator: trombe@xtra.co.nz
