Associated Door Panel with Door/Window/Gate Schedule
1551 Downloads
No Rating
|
| | |

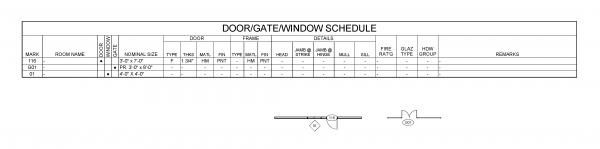

Here is a file to have Door/Window/Gate schedule and associated door panels. the window was using door family template, the chain link fence was using curtain wall with gate.
Change Door tags:1. While placing the door, click “Tags” in the Option Bar,2. In “Loaded Tags And Symbols”, under “Doors” Category, click “Loaded Tags”, then, switch between “Door Tag-AAA”, and “Wdw Tag-AAA”.
To link parameters from a nested family to the host family you will need to do the following.1. Open the host family with the nested inserted.2. Click on the nested family.3. Click “Edit Type” in the Properties.4. The “Type Properties” window will be shown.5. Click the parameter that you want to associate with other parameter.6. Click the little button at the far right of the parameter line you want to change7. Select parameter out of list or click add parameter and recreate the parameter.When the parameter is linked there will be an (=) sign on the little button.
Make sure that the associated parameters are in the same Group, which means Text, or Dimension. If the parameter is a length, then it needs to have a value instead of 0’ 0”.
|
|
CSI Division: 08 10 00 Doors & Frames RevitCity Division: Doors & Openings
Product Version: Revit Architecture 2015 |
Uploaded By: CDWdavid
Uploaded On: Fri, Oct 14, 2016
|
|
|
